peddinghaus

peddinghaus anglemaster

Standard Punches & Dies

64Y

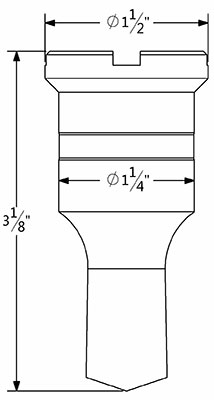

Specifications

  • Head Diameter1-1/2"
  • Body Diameter1-1/4"
  • Overall Length3-1/8"

Equivalent Part Numbers

  • CPDC-274

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
264YRD None 64Y Round Punch Any size not shown 24 hours $23.95
Part No. Size Keyway Description Availability Price Quantity Purchase
264YOB 64Y Oblong Punch Any size not shown 24 hours $61.40
Part No. Size Keyway Description Availability Price Quantity Purchase
264YSQ 64Y Square Punch Any size not shown 24 hours $61.40
Part No. Size Keyway Description Availability Price Quantity Purchase
264YHX 64Y Hex Punch Any size not shown 24 hours $61.40
Part No. Size Keyway Description Availability Price Quantity Purchase
264YRC 64Y Rectangle Punch Any size not shown 24 hours $61.40

47/45

Specifications

  • Outside Diameter2-1/8"
  • Height1"

Equivalent Part Numbers

  • CPDC-273
  • APC347F/45

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
44745RD 47/45 Round Die in Any size not shown 1 Whistle 24 hours $42.40
Part No. Size Description Locating Spot Availability Price Quantity Purchase
44745OB 47/45 Oblong Die in Any size not shown 2 Whistles 24 hours $68.40
Part No. Size Description Locating Spot Availability Price Quantity Purchase
44745SQ 47/45 Square Die in Any size not shown 1 Whistle 24 hours $68.40
Part No. Size Description Locating Spot Availability Price Quantity Purchase
44745HX 47/45 Hex Die in Any size not shown 1 Whistle 24 hours $68.40
Part No. Size Description Locating Spot Availability Price Quantity Purchase
44745RC 47/45 Rectangle Die in Any size not shown 2 Whistle 24 hours $68.40

Parts & Accessories

Angle Shear Blades

Image Part No. Description Availability Price Quantity Purchase

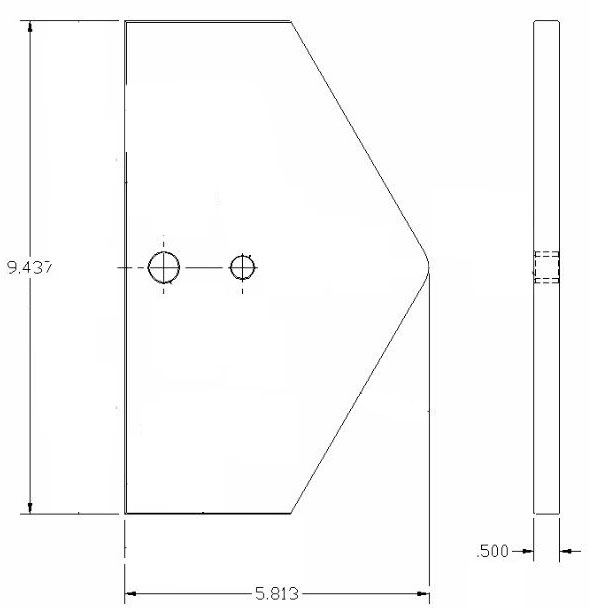

ANGMSTRTOP Top Home Plate Same day $335.40
