Geka

Geka 55A

Standard Punches & Dies

221

Specifications

  • Head Diameter1-3/8"
  • Body Diameter1-7/32"
  • Overall Length2-3/8"

Equivalent Part Numbers

  • CPDF-20
  • APC121
  • PWEA

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
22104 1/8 (0.125)" None 221 Round Punch 1/8 Same Day $16.85
22105 5/32 (0.156)" None 221 Round Punch 5/32 Same Day $16.85
22106 3/16 (0.188)" None 221 Round Punch 3/16 Same Day $16.85
22107 7/32 (0.219)" None 221 Round Punch 7/32 Same Day $16.85
22108 1/4 (0.250)" None 221 Round Punch 1/4 Same Day $16.85
22109 9/32 (0.281)" None 221 Round Punch 9/32 Same Day $16.85
22110 5/16 (0.313)" None 221 Round Punch 5/16 Same Day $16.85
22111 11/32 (0.344)" None 221 Round Punch 11/32 Same Day $16.85
22112 3/8 (0.375)" None 221 Round Punch 3/8 Same Day $16.85
22113 13/32 (0.406)" None 221 Round Punch 13/32 Same Day $16.85
22114 7/16 (0.438)" None 221 Round Punch 7/16 Same Day $16.85
22115 15/32 (0.469)" None 221 Round Punch 15/32 Same Day $16.85
22116 1/2 (0.500)" None 221 Round Punch 1/2 Same Day $16.85
22117 17/32 (0.531)" None 221 Round Punch 17/32 Same Day $16.85
22118 9/16 (0.563)" None 221 Round Punch 9/16 Same Day $16.85
22119 19/32 (0.594)" None 221 Round Punch 19/32 Same Day $16.85
22120 5/8 (0.625)" None 221 Round Punch 5/8 Same Day $16.85
22121 21/32 (0.656)" None 221 Round Punch 21/32 Same Day $16.85
22122 11/16 (0.688)" None 221 Round Punch 11/16 Same Day $16.85
22123 23/32 (0.719)" None 221 Round Punch 23/32 Same Day $16.85
22124 3/4 (0.750)" None 221 Round Punch 3/4 Same Day $16.85
22125 25/32 (0.781)" None 221 Round Punch 25/32 Same Day $16.85
22126 13/16 (0.813)" None 221 Round Punch 13/16 Same Day $16.85
22127 27/32 (0.844)" None 221 Round Punch 27/32 Same Day $16.85
22128 7/8 (0.875)" None 221 Round Punch 7/8 Same Day $16.85
22129 29/32 (0.906)" None 221 Round Punch 29/32 Same Day $16.85
22130 15/16 (0.938)" None 221 Round Punch 15/16 Same Day $16.85
22132 1 (1.000)" None 221 Round Punch 1" Same Day $16.85
22133 1-1/32 (1.031)" None 221 Round Punch 1-1/32 Same Day $16.85
22134 1-1/16 (1.063)" None 221 Round Punch 1-1/16 Same Day $16.85
22135 1-3/32 (1.094)" None 221 Round Punch 1-3/32 Same Day $16.85
22136 1-1/8 (1.125)" None 221 Round Punch 1-1/8 Same Day $16.85
22137 1-5/32 (1.156)" None 221 Round Punch 1-5/32 Same Day $16.85
22138 1-3/16 (1.188)" None 221 Round Punch 1-3/16 Same Day $16.85
22140 1-1/4 (1.250)" None 221 Round Punch 1-1/4 Same Day $16.85
22142 1-5/16 (1.313)" None 221 Round Punch 1-5/16 Same Day $16.85
221RD N/A 221 Round Punch in Any size not shown 24 hours $27.85
Part No. Size Keyway Description Availability Price Quantity Purchase
22190832G 1/4" x 1" (0.250 x 1.000)" 3mm x 6mm 221 Oblong Punch 1/4 x 1" With 3mm x 6mm Keyway Same Day $56.10
22190840G 1/4" x 1-1/4" (0.250 X 1.250)" 3mm x 6mm 221 Oblong Punch 1/4 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22191032G 5/16 x 1" (0.313 x 1.000)" 3mm x 6mm 221 Oblong Punch 5/16 x 1" With 3mm x 6mm Keyway Same Day $56.10
22191040G 5/16 x 1-1/4" (0.313 x 1.250)" 3mm x 6mm 221 Oblong Punch 5/16 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22191232G 3/8" x 1" (0.375 x 1.000)" 3mm x 6mm 221 Oblong Punch 3/8 x 1" With 3mm x 6mm Keyway Same Day $56.10
22191240G 3/8" x 1-1/4" (0.375 x 1.250)" 3mm x 6mm 221 Oblong Punch 3/8 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22191432G 7/16" x 1" (0.438 x 1.000)" 3mm x 6mm 221 Oblong Punch 7/16 x 1" With 3mm x 6mm Keyway Same Day $56.10
22191440G 7/16" x 1-1/4" (0.438 x 1.250)" 3mm x 6mm 221 Oblong Punch 7/16 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22191632G 1/2" x 1" (0.500 x 1.000)" 3mm x 6mm 221 Oblong Punch 1/2 x 1" With 3mm x 6mm Keyway Same Day $56.10
22191640G 1/2" x 1-1/4" (0.500 x 1.250)" 3mm x 6mm 221 Oblong Punch 1/2 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22191832G 9/16" x 1" (0.563 x 1.000)" 3mm x 6mm 221 Oblong Punch 9/16 x 1" With 3mm x 6mm Keyway Same Day $56.10
22191840G 9/16" x 1-1/4" (0.563 x 1.250)" 3mm x 6mm 221 Oblong Punch 9/16 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22192032G 5/8" x 1" (0.625 x 1.000)" 3mm x 6mm 221 Oblong Punch 5/8 x 1" With 3mm x 6mm Keyway Same Day $56.10
22192040G 5/8" x 1-1/4" (0.625 x 1.250)" 3mm x 6mm 221 Oblong Punch 5/8 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22192232G 11/16" x 1" (0.688 x 1.000)" 3mm x 6mm 221 Oblong Punch 11/16 x 1" With 3mm x 6mm Keyway Same Day $56.10
22192240G 11/16" x 1-1/4" (0.688 x 1.250)" 3mm x 6mm 221 Oblong Punch 11/16 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22192432G 3/4" x 1" (0.750 x 1.000)" 3mm x 6mm 221 Oblong Punch 3/4 x 1" With 3mm x 6mm Keyway Same Day $56.10
22192440G 3/4" x 1-1/4" (0.750 x 1.250)" 3mm x 6mm 221 Oblong Punch 3/4 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22192632G 13/16" x 1" (0.813 x 1.000)" 3mm x 6mm 221 Oblong Punch 13/16 x 1" With 3mm x 6mm Keyway Same Day $56.10
22192640G 13/16" x 1-1/4" (0.813 x 1.250)" 3mm x 6mm 221 Oblong Punch 13/16 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22192832G 7/8" x 1" (0.875 x 1.000)" 3mm x 6mm 221 Oblong Punch 7/8 x 1" With 3mm x 6mm Keyway Same Day $56.10
22192840G 7/8" x 1-1/4" (0.875 x 1.250)" 3mm x 6mm 221 Oblong Punch 7/8 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
22193040G 15/16" x 1-1/4" (0.938 x 1.250)" 3mm x 6mm 221 Oblong Punch 15/16 x 1-1/4" With 3mm x 6mm Keyway Same Day $56.10
221OBGeka 3mm x 6mm 221 Oblong Punch With 3mm x 6mm Keyway in any size not shown 24 hours $72.60
Part No. Size Keyway Description Availability Price Quantity Purchase
221SQGeka 3mm x 6mm 221 Square Punch With 3mm x 6mm Keyway in any size not shown 24 hours $72.60
Part No. Size Keyway Description Availability Price Quantity Purchase
221HXGeka 3mm x 6mm 221 Hex Punch With 3mm x 6mm Keyway in any size not shown 24 hours $72.60
Part No. Size Keyway Description Availability Price Quantity Purchase
221RCGeka 3mm x 6mm 221 Rectangle Punch With 3mm x 6mm Keyway in any size not shown 24 hours $72.60

417

Specifications

  • Outside Diameter2"
  • Height1"

Equivalent Part Numbers

  • CPDF-59
  • APC317
  • PWJC

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
41705 5/32 (0.156)" 417 Round Die 5/32 None Same Day $15.20
41706 3/16 (0.188)" 417 Round Die 3/16 None Same Day $15.20
41707 7/32 (0.219)" 417 Round Die 7/32 None Same Day $15.20
41708 1/4 (0.250)" 417 Round Die 1/4 None Same Day $15.20
41709 9/32 (0.281)" 417 Round Die 9/32 None Same Day $15.20
41710 5/16 (0.313)" 417 Round Die 5/16 None Same Day $15.20
41711 11/32 (0.344)" 417 Round Die 11/32 None Same Day $15.20
41712 3/8 (0.375)" 417 Round Die 3/8 None Same Day $15.20
41713 13/32 (0.406)" 417 Round Die 13/32 None Same Day $15.20
41714 7/16 (0.438)" 417 Round Die 7/16 None Same Day $15.20
41715 15/32 (0.469)" 417 Round Die 15/32 None Same Day $15.20
41716 1/2 (0.500)" 417 Round Die 1/2 None Same Day $15.20
41717 17/32 (0.531)" 417 Round Die 17/32 None Same Day $15.20
41718 9/16 (0.563)" 417 Round Die 9/16 None Same Day $15.20
41719 19/32 (0.594)" 417 Round Die 19/32 None Same Day $15.20
41720 5/8 (0.625)" 417 Round Die 5/8 None Same Day $15.20
41721 21/32 (0.656)" 417 Round Die 21/32 None Same Day $15.20
41722 11/16 (0.688)" 417 Round Die 11/16 None Same Day $15.20
41723 23/32 (0.719)" 417 Round Die 23/32 None Same Day $15.20
41724 3/4 (0.750)" 417 Round Die 3/4 None Same Day $15.20
41725 25/32 (0.781)" 417 Round Die 25/32 None Same Day $15.20
41726 13/16 (0.813)" 417 Round Die 13/16 None Same Day $15.20
41727 27/32 (0.844)" 417 Round Die 27/32 None Same Day $15.20
41728 7/8 (0.875)" 417 Round Die 7/8 None Same Day $15.20
41729 29/32 (0.906)" 417 Round Die 29/32 None Same Day $15.20
41730 15/16 (0.938)" 417 Round Die 15/16 None Same Day $15.20
41731 31/32 (0.969)" 417 Round Die 31/32 None Same Day $15.20
41732 1 (1.000)" 417 Round Die 1" None Same Day $15.20
41733 1-1/32 (1.031)" 417 Round Die 1-1/32 None Same Day $15.20
41734 1-1/16 (1.063)" 417 Round Die 1-1/16 None Same Day $15.20
41735 1-3/32 (1.094)" 417 Round Die 1-3/32 None Same Day $15.20
41736 1-1/8 (1.125)" 417 Round Die 1-1/8 None Same Day $15.20
41737 1-5/32 (1.156)" 417 Round Die 1-5/32 None Same Day $15.20
41738 1-3/16 (1.188)" 417 Round Die 1-3/16 None Same Day $15.20
41739 1-7/32 (1.219)" 417 Round Die 1-7/32 None Same Day $15.20
41740 1-1/4 (1.250)" 417 Round Die 1-1/4 None Same Day $15.20
41741 1-9/32 (1.281)" 417 Round Die 1-9/32 None Same Day $15.20
41742 1-5/16 (1.313)" 417 Round Die 1-5/16 None Same Day $15.20
41744 1-3/8 (1.375)" 417 Round Die 1-3/8 None Same Day $15.20
417RD 417 Round Die in Any size not shown None 24 hours $26.20
417RD Any size not shown" 417 Round Die in any size not shown (without whistle spot) none 24 hours $26.20
Part No. Size Description Locating Spot Availability Price Quantity Purchase
41790815 1/4 x 15/32 (0.250 x 0.469)" 417 Oblong Die 1/4 x 15/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41790933 9/32 x 1-1/32 (0.281 x 1.031)" 417 Oblong Die 9/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791019 5/16 x 19/32 (0.313 x 0.594)" 417 Oblong Die 5/16 x 19/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791025 5/16 x 25/32 (0.313 x 0.781)" 417 Oblong Die 5/16 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791033 5/16 x 1-1/32 (0.313 x 1.031)" 417 Oblong Die 5/16 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791117 11/32 x 17/32 (0.344 x 0.531)" 417 Oblong Die 11/32 x 17/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791125 11/32 x 2532 (0.344 x 0.781)" 417 Oblong Die 11/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791133 11/32 x 1-1/32 (0.344 x 1.031)" 417 Oblong Die 11/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791223 3/8 x 23/32 (0.375 x 0.719)" 417 Oblong Die 3/8 x 23/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791333 13/32 x 1-1/32 (0.406 x 1.031)" 417 Oblong Die 13/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791341 13/32 x 1-9/32 (0.406 x 1.281)" 417 Oblong Die 13/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791433 7/16 x 1-1/32 (0.438 x 1.031)" 417 Oblong Die 7/16 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791525 15/32 x 25/32 (0.469 x 1.781)" 417 Oblong Die 15/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791529 15/32 x 29/32 (0.469 x 1.906)" 417 Oblong Die 15/32 x 29/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791533 15/32 x 1-1/32 (0.469 x 1.031)" 417 Oblong Die 15/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791535 15/32 x 1-3/32 (0.469 x 1.094)" 417 Oblong Die 15/32 x 1-3/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791541 15/32 x 1-9/32 (0.469 x 1.281)" 417 Oblong Die 15/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791725 17/32 x 25/32 (0.531 x 0.781)" 417 Oblong Die 17/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791733 17/32 x 1-1/32 (0.531 x 1.031)" 417 Oblong Die 17/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791741 17/32 x 1-9/32 (0.531 x 1.281)" 417 Oblong Die 17/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791833 9/16 x 1-1/32 (0.563 x 1.031)" 417 Oblong Die 9/16 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791925 19/32 x 25/32 (0.594 x 0.781)" 417 Oblong Die 19/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791933 19/32 x 1-1/32 (0.594 x 1.031)" 417 Oblong Die 19/32 X 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791941 19/32 x 1-9/32 (0.594 x 1.281)" 417 Oblong Die 19/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792034 5/8 x 1-1/16 (0.625 x 1.063)" 417 Oblong Die 5/8 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792042 5/8 x 1-5/16 (0.625 x 1.313)" 417 Oblong Die 5/8 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792133 21/32 x 1-1/32 (0.656 x 1.031)" 417 Oblong Die 21/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792141 21/32 x 1-9/32 (0.656 x 1.281)" 417 Oblong Die 21/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792234 11/16 x 1-1/16 (0.688 x 1.063)" 417 Oblong Die 11/16 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792242 11/16 x 1-5/16 (0.688 x 1.312)" 417 Oblong Die 11/16 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792333 23/32 X 1-1/32 (0.719 x 1.031)" 417 Oblong Die 23/32 X 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792341 23/32 x 1-9/32 (0.719 x 1.281)" 417 Oblong Die 23/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792434 3/4 x 1-1/16 (0.750 x 1.063)" 417 Oblong Die 3/4 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792436 3/4 x 1-1/8 (0.750 x 1.125)" 417 Oblong Die 3/4 x 1-1/8 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792442 3/4 x 1-5/16 (0.750 x 1.313)" 417 Oblong Die 3/4 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792541 25/32 x 1-9/32 (0.781 x 1.281)" 417 Oblong Die 25/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792634 13/16 x 1-1/16 (0.813 x 1.063)" 417 Oblong Die 13/16 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792733 27/32 X 1-1/32 (0.844 x 1.031)" 417 Oblong Die 27/32 X 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792735 27/32 x 1-3/32 (0.844 x 1.094)" 417 Oblong Die 27/32 x 1-3/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792741 27/32 x 1-9/32 (0.844 x 1.281)" 417 Oblong Die 27/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792834 7/8 x 1-1/16 (0.875 x 1.063)" 417 Oblong Die 7/8 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792836 7/8 x 1-1/8 (0.875 x 1.125)" 417 Oblong Die 7/8 x 1-1/8 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792842 7/8 x 1-5/16 (0.875 x 1.313)" 417 Oblong Die 7/8 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792941 29/32 x 1-9/32 (0.906 x 1.281)" 417 Oblong Die 29/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41793042 15/16 x 1-5/16 (0.938 x 1.313)" 417 Oblong Die 15/16 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41793141 31/32 x 1-9/32 (.969 x 1.281)" 417 Oblong Die 31/32 x 1-9/32 2 Whistles Same Day $62.80
41793242 1 x 1-5/16 (1.000 x 1.313)" 417 Oblong Die 1" x 1-5/16" With 2 Whistle Spots 2 Whistles Same Day $62.80
417OB 417 Oblong Die in Any size not shown 2 Whistles 24 hours $79.30
Part No. Size Description Locating Spot Availability Price Quantity Purchase
417809 9/32 (0.281)" 417 Square Die 9/32 1 Whistle Spot 1 Whistle Same Day $62.80
417811 11/32 (0.344)" 417 Square Die 11/32 1 Whistle Spot 1 Whistle Same Day $62.80
417813 13/32 (0.406)" 417 Square Die 13/32 1 Whistle Spot 1 Whistle Same Day $62.80
417814 7/16 (0.438)" 417 Square Die 7/16 1 Whistle Spot 1 Whistle Same Day $62.80
417815 15/32 (0.469)" 417 Square Die 15/32 1 Whistle Spot 1 Whistle Same Day $62.80
417817 17/32 (0.531)" 417 Square Die 17/32 1 Whistle Spot 1 Whistle Same Day $62.80
417818 9/16 (0.563)" 417 Square Die 9/16 1 Whistle Spot 1 Whistle Same Day $62.80
417819 19/32 (0.594)" 417 Square Die 19/32 1 Whistle Spot 1 Whistle Same Day $62.80
417820 5/8 (0.625)" 417 Square Die 5/8 1 Whistle Spot 1 Whistle Same Day $62.80
417821 21/32 (0.656)" 417 Square Die 21/32 1 Whistle Spot 1 Whistle Same Day $62.80
417822 11/16 (0.688)" 417 Square Die 11/16 1 Whistle Spot 1 Whistle Same Day $62.80
417823 23/32 (0.719)" 417 Square Die 23/32 1 Whistle Spot 1 Whistle Same Day $62.80
417825 25/32 (0.781)" 417 Square Die 25/32 1 Whistle Spot 1 Whistle Same Day $62.80
417826 13/16 (0.813)" 417 Square Die 13/16 1 Whistle Spot 1 Whistle Same Day $62.80
417827 27/32 (0.844)" 417 Square Die 27/32 1 Whistle Spot 1 Whistle Same Day $62.80
417829 29/32 (.906)" 417 Square Die 29/32 1 Whistle Spot 1 Whistle Same Day $62.80
417SQ 417 Square Die in Any size not shown 1 Whistle 24 hours $79.30
Part No. Size Description Locating Spot Availability Price Quantity Purchase
417HX 417 Hex Die in Any size not shown 1 Whistle 24 hours $79.30
Part No. Size Description Locating Spot Availability Price Quantity Purchase
417RC 417 Rectangle Die in Any size not shown 2 Whistles 24 hours $79.30

Oversize Punches & Dies

228S

Specifications

  • Head Diameter1-11/16"
  • Body Diameter1-17/32"
  • Overall Length2-3/8"

Equivalent Part Numbers

  • CPDF-26S
  • APC128S

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
228SRD None 228S Round Punch Any size not shown 24 hours $41.70
Part No. Size Keyway Description Availability Price Quantity Purchase
228SOBBail 4mm x 4mm 228S Oblong Punch With 4mm x 4mm Keyway in any size not shown 24 hours $98.25
228SOB 3mm x 6mm 228S Oblong Punch With 3mm x 6mm Keyway in any size not shown 24 hours $98.25
Part No. Size Keyway Description Availability Price Quantity Purchase
228SSQBail 4mm x 4mm 228S Square Punch With 4mm x 4mm Keyway in any size not shown 24 hours $98.25
228SSQ 3mm x 6mm 228S Square Punch With 3mm x 6mm Keyway in any size not shown 24 hours $98.25
Part No. Size Keyway Description Availability Price Quantity Purchase
228SHXBail 4mm x 4mm 228S Hex Punch With 4mm x 4mm Keyway in any size not shown 24 hours $98.25
228SHX 3mm x 6mm 228S Hex Punch With 3mm x 6mm Keyway in any size not shown 24 hours $98.25
Part No. Size Keyway Description Availability Price Quantity Purchase
228SRCBail 4mm x 4mm 228S Rectangle Punch With 4mm x 4mm Keyway in any size not shown 24 hours $98.25
228SRC 3mm x 6mm 228S Rectangle Punch With 3mm x 6mm Keyway in any size not shown 24 hours $98.25

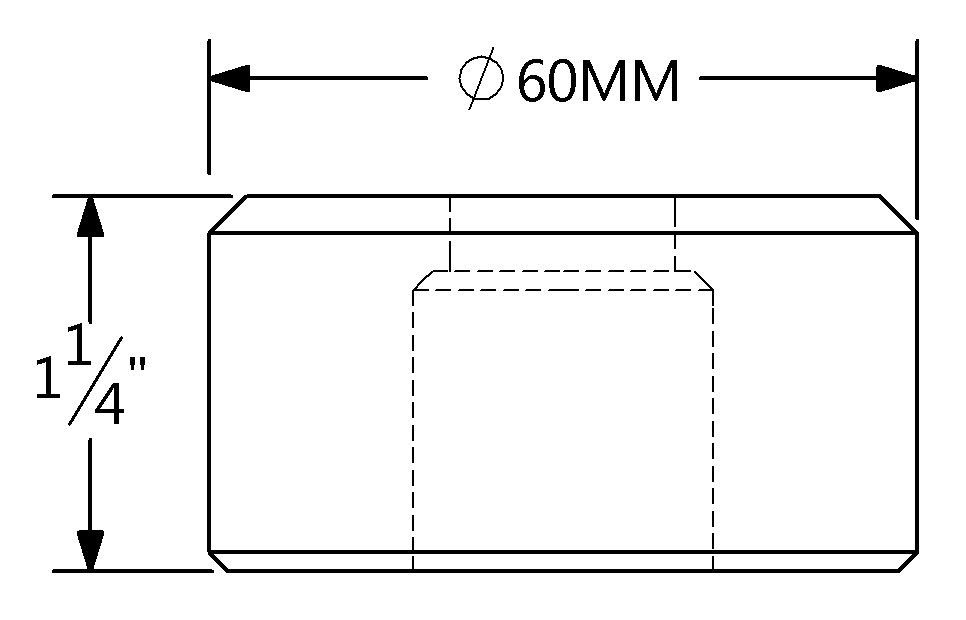

60mmD

Specifications

  • Outside Diameter60mm"
  • Height31.75mm"

Equivalent Part Numbers

  • CPDF-62S
  • APC360
  • PWWT

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
60MMDRD 60MM Round Die Any size not shown None 24 hours $43.45
Part No. Size Description Locating Spot Availability Price Quantity Purchase
60MMDOB 60MM Oblong Die Any size not shown 1 Whistle 24 hours $107.70
Part No. Size Description Locating Spot Availability Price Quantity Purchase
60MMDSQ 60MM Square Die Any size not shown 2 Whistles 24 hours $107.70
Part No. Size Description Locating Spot Availability Price Quantity Purchase
60MMDHX 60MM Hex Die Any size not shown 2 Whistles 24 hours $107.70
Part No. Size Description Locating Spot Availability Price Quantity Purchase
60MMDRC 60MM Rectangle Die Any size not shown 1 Whistle 24 hours $107.70
