Franklin

Franklin F5275X12

Standard Punches & Dies

66

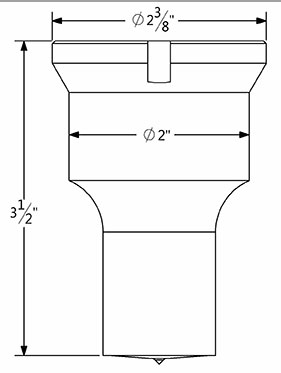

Specifications

  • Head Diameter2-3/8"
  • Body Diameter2"
  • Overall Length3-1/2"

Equivalent Part Numbers

  • CPDC-7501
  • APC166
  • PW7501

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
26634 1-1/16 (1.063)" None 66 Round Punch 1-1/16 Same Day $46.90
26640 1-1/4 (1.250)" None 66 Round Punch 1-1/4 Same Day $46.90
266RD None 66 Round Punch Any size not shown 24 hours $46.90
Part No. Size Keyway Description Availability Price Quantity Purchase
266OB 66 Oblong Punch Any size not shown 24 hours $86.70
Part No. Size Keyway Description Availability Price Quantity Purchase
266SQ 66 Square Punch Any size not shown 24 hours $86.70
Part No. Size Keyway Description Availability Price Quantity Purchase
266HX 66 Hex Punch Any size not shown 24 hours $86.70
Part No. Size Keyway Description Availability Price Quantity Purchase

46

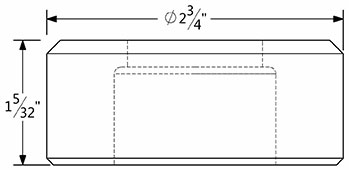

Specifications

  • Outside Diameter2-3/4"
  • Height1-5/32"

Equivalent Part Numbers

  • CPDC-7502
  • APC346
  • PW7502

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
44612 3/8 (0.375)" 46 Round Die 3/8" None Same Day $33.65
44619 19/32 (0.594)" 46 Round Die 19/32" None Same Day $33.65
44620 5/8 (0.625)" 46 Round Die 5/8" None Same Day $33.65
44623 23/32 (0.719)" 46 Round Die 23/32" None Same Day $33.65
44624 3/4 (0.750)" 46 Round Die 3/4" None Same Day $33.65
44628 7/8 (0.875)" 46 Round Die 7/8" None Same Day $33.65
44632 1 (1.000)" 46 Round Die 1" None Same Day $33.65
44636 1-1/8 (1.125)" 46 Round Die 1 1/8" None Same Day $33.65
44640 1-1/4 (1.250)" 46 Round Die 1 1/4" None Same Day $33.65
44646 1-7/16 (1.438)" 46 Round Die 1 7/16" None Same Day $33.65
446RD 46 Round Die in Any size not shown None 24 hours $43.65
Part No. Size Description Locating Spot Availability Price Quantity Purchase
446OB 46 Oblong Die in Any size not shown 2 Whistles 24 hours $74.45
Part No. Size Description Locating Spot Availability Price Quantity Purchase
446SQ 46 Square Die in Any size not shown 1 Whistle 24 hours $74.45
Part No. Size Description Locating Spot Availability Price Quantity Purchase
446HX 46 Hex Die in Any size not shown 1 Whistle 24 hours $74.45
Part No. Size Description Locating Spot Availability Price Quantity Purchase
446RC 46 Rectangle Die in Any size not shown 2 Whistles 24 hours $74.45
