Using proper alignment tools, like keyways on punches and spots on dies, will help to ensure the longevity of punches and dies.

Cleveland Steel Tool recommends the use of Keyways and Spots for positive alignment of shaped punches and dies. Different ironworker machines use different size and style keyways and spots. Some common styles, shapes and sizes are stocked with keyways and whistle spots. Your specific keyway and spot can be added to any punch and die upon request.



Standard Keyway Positions

Available Keyway sizes:

1/4″ x 1/8″
“V” Groove
2mm x 4mm
3mm x 6mm
Custom Sizes

Optional Keyway Positions

Available Keyway sizes:

1/4″ x 1/8″
“V” Groove
2mm x 4mm
3mm x 6mm
Custom Sizes

Standard Keyway
Most styles, shapes and sizes come standard with a 1/4″ x 1/8″ keyway.

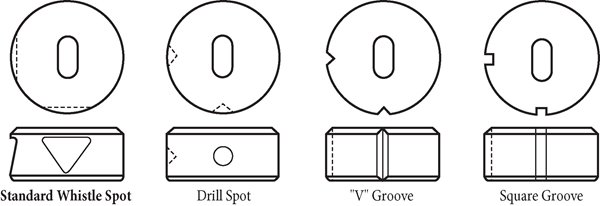

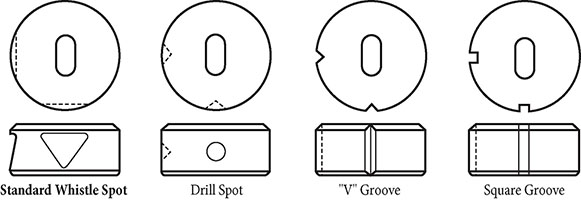

Standard Whistle Spot
Most Cleveland Steel Tool dies come standard with a whistle spot.
