peddinghaus

peddinghaus anglemaster 823

Standard Punches & Dies

64

Specifications

  • Head Diameter1-1/2"
  • Body Diameter1-1/4"
  • Overall Length3-1/8"

Equivalent Part Numbers

  • CPDC-770
  • APC164
  • PW770

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
26406 3/16 (0.188)" None 64 Round Punch 3/16 Same Day $15.60
26408 1/4 (0.250)" None 64 Round Punch 1/4 Same Day $15.60
26409 9/32 (.281)" None 64 Round Punch 9/32 Same Day $15.60
26410 5/16 (0.313)" None 64 Round Punch 5/16 Same Day $15.60
26411 11/32 (0.344)" None 64 Round Punch 11/32 Same Day $15.60
26412 3/8 (0.375)" None 64 Round Punch 3/8 Same Day $15.60
26413 13/32 (.406)" None 64 Round Punch 13/32 Same Day $15.60
26414 7/16 (0.438)" None 64 Round Punch 7/16 Same Day $15.60
26415 15/32 (0.469)" None 64 Round Punch 15/32 Same Day $15.60
26416 1/2 (0.500)" None 64 Round Punch 1/2 Same Day $15.60
26417 17/32 (0.531)" None 64 Round Punch 17/32 Same Day $15.60
26418 9/16 (0.563)" None 64 Round Punch 9/16 Same Day $15.60
26419 19/32 (0.594)" None 64 Round Punch 19/32 Same Day $15.60
26420 5/8 (0.625)" None 64 Round Punch 5/8 Same Day $15.60
26421 21/32 (0.656)" None 64 Round Punch 21/32 Same Day $15.60
26422 11/16 (0.688)" None 64 Round Punch 11/16 Same Day $15.60
26423 23/32 (0.719)" None 64 Round Punch 23/32 Same Day $15.60
26424 3/4 (0.750)" None 64 Round Punch 3/4 Same Day $15.60
26425 25/32 (0.781)" None 64 Round Punch 25/32 Same Day $15.60
26426 13/16 (0.813)" None 64 Round Punch 13/16 Same Day $15.60
26427 27/32 (0.844)" None 64 Round Punch 27/32 Same Day $15.60
26428 7/8 (0.875)" None 64 Round Punch 7/8 Same Day $15.60
26429 29/32 (0.906)" None 64 Round Punch 29/32 Same Day $15.60
26430 15/16 (0.938)" None 64 Round Punch 15/16 Same Day $15.60
26431 31/32 (0.969)" None 64 Round Punch 31/32 Same Day $15.60
26432 1 (1.000)" None 64 Round Punch 1" Same Day $15.60
26433 1-1/32 (1.031)" None 64 Round Punch 1-1/32 Same Day $15.60
26434 1-1/16 (1.063)" None 64 Round Punch 1-1/16 Same Day $15.60
26435 1-3/32 (1.094)" None 64 Round Punch 1-3/32 Same Day $15.60
26436 1-1/8 (1.125)" None 64 Round Punch 1-1/8 Same Day $15.60
26438 1-3/16 (1.188)" None 64 Round Punch 1-3/16 Same Day $15.60
26440 1-1/4 (1.250)" None 64 Round Punch 1-1/4 Same Day $15.60
26442 1-5/16 (1.313)" None 64 Round Punch 1-5/16 Same Day $15.60
26444 1-3/8 (1.375)" None 64 Round Punch 1-3/8 Same Day $15.60
26446 1-7/16 (1.438)" None 64 Round Punch 1-7/16 Same Day $15.60
26448 1-1/2 (1.500)" None 64 Round Punch 1-1/2 Same Day $15.60
2642964 29/64 (0.453)" None 64 Round Punch 29/64 Same Day $15.60
264RD None 64 Round Punch Any size not shown 24 hours $28.90
Part No. Size Keyway Description Availability Price Quantity Purchase
26491040 5/16" x 1-1/4" (0.313 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 5/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26491424 7/16" x 3/4" (0.437 x 0.750)" 1/4 x 1/8 Cross 64 Oblong Punch 7/16" X 3/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26491428 7/16" x 7/8" (0.437 x 0.875)" 1/4 x 1/8 Cross 64 Oblong Punch 7/16" X 7/8" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26491432 7/16" x 1" (0.438 x 1.000)" 1/4 x 1/8 Cross 64 Oblong Punch 7/16" X 1" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26491440 7/16" x 1-1/4" (0.438 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 7/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26491832 9/16" x 1" (0.563 x 1.000)" 1/4 x 1/8 Cross 64 Oblong Punch 9/16" X 1" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26491834 9/16" x 1-1/16" (0.563 x 1.063)" 1/4 x 1/8 Cross 64 Oblong Punch 9/16" X 1-1/16" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26491840 9/16" x 1-1/4" (0.563 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 9/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26491848 9/16" x 1-1/2" (0.563 x 1.500)" 1/4 x 1/8 Cross 64 Oblong Punch 9/16" X 1-1/2" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492024 5/8" x 3/4" (0.625 x 0.750)" 1/4 x 1/8 Cross 64 Oblong Punch 5/8" X 3/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492040 5/8" x 1-1/4" (0.625 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 5/8" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492232 11/16" x 1" (0.688 x 1.000)" 1/4 x 1/8 Cross 64 Oblong Punch 11/16" X 1" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492234 11/16" x 1-1/16" (0.688 x 1.063)" 1/4 x 1/8 Cross 64 Oblong Punch 11/16" X 1-1/16" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492240 11/16" x 1-1/4" (0.688 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 11/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492248 11/16" x 1-1/2" (0.688 x 1.500)" 1/4 x 1/8 Cross 64 Oblong Punch 11/16" X 1-1/2" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492440 3/4" x 1-1/4" (0.750 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 3/4" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492632 13/16" x 1" (0.813 x 1.000)" 1/4 x 1/8 Cross 64 Oblong Punch 13/16" X 1" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492634 13/16" x 1-1/16" (0.813 x 1.063)" 1/4 x 1/8 Cross 64 Oblong Punch 13/16" X 1-1/16" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492636 13/16" x 1-1/8" (0.813 x 1.125)" 1/4 x 1/8 Cross 64 Oblong Punch 13/16" X 1-1/8" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492640 13/16" x 1-1/4" (0.813 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 13/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492648 13/16" x 1-1/2" (0.813 x 1.500)" 1/4 x 1/8 Cross 64 Oblong Punch 13/16" X 1-1/2" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26492840 7/8" x 1-1/4" (0.875 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 7/8" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26493036 15/16" x 1-1/8" (0.938 x 1.125)" 1/4 x 1/8 Cross 64 Oblong Punch 15/16" X 1-1/8" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26493040 15/16" x 1-1/4" (0.938 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 15/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26493048 15/16" x 1-1/2" (0.938 x 1.500)" 1/4 x 1/8 Cross 64 Oblong Punch 15/16" X 1-1/2" With 1/4 X 1/8 Cross Keyways Same Day $54.05
26493442 1-1/16" x 1-5/16" (1.063 x 1.313)" 1/4 x 1/8 Cross 64 Oblong Punch 1-1/16" X 1-5/16" With 1/4 X 1/8 Cross Keyways Same Day $54.05
264OB 64 Oblong Punch Any size not shown 24 hours $73.95
Part No. Size Keyway Description Availability Price Quantity Purchase
264812 3/8 (0.375)" 1/4 x 1/8 64 Square Punch 3/8 With 1/4 x 1/8 Keyway Same Day $54.05
264824 3/4 (0.750)" 1/4 x 1/8 64 Square Punch 3/4 With 1/4 x 1/8 Keyway Same Day $54.05
26483564 35/64 (.546)" 1/4 x 1/8 64 Square Punch 35/64 With 1/4 x 1/8 Keyway Same Day $73.95
264818 9/16 (.562)" 1/4 x 1/8 64 Square Punch 9/16 With 1/4 x 1/8 Keyway Same Day $54.05
264SQ 64 Square Punch Any size not shown 24 hours $73.95
Part No. Size Keyway Description Availability Price Quantity Purchase
264HX 64 Hex Punch Any size not shown 24 hours $73.95
Part No. Size Keyway Description Availability Price Quantity Purchase
264RC 64 Rectangle Punch Any size not shown 24 hours $73.95

47

Specifications

  • Outside Diameter2-1/8"
  • Height1"

Equivalent Part Numbers

  • CPDC-271
  • APC347
  • PW740

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
44707 7/32 (0.219)" 47 Round Die 7/32 1 Whistle Same Day $17.60
44708 1/4 (0.250)" 47 Round Die 1/4 1 Whistle Same Day $17.60
44709 9/32 (0.281)" 47 Round Die 9/32 1 Whistle Same Day $17.60
44710 5/16 (0.313)" 47 Round Die 5/16 1 Whistle Same Day $17.60
44711 11/32 (0.344)" 47 Round Die 11/32 1 Whistle Same Day $17.60
44712 3/8 (0.375)" 47 Round Die 3/8 1 Whistle Same Day $17.60
44713 13/32 (0.406)" 47 Round Die 13/32 1 Whistle Same Day $17.60
44714 7/16 (0.438)" 47 Round Die 7/16 1 Whistle Same Day $17.60
44715 15/32 (0.469)" 47 Round Die 15/32 1 Whistle Same Day $17.60
44716 1/2 (0.500)" 47 Round Die 1/2 1 Whistle Same Day $17.60
44717 17/32 (0.531)" 47 Round Die 17/32 1 Whistle Same Day $17.60
44718 9/16 (0.563)" 47 Round Die 9/16 1 Whistle Same Day $17.60
44719 19/32 (0.594)" 47 Round Die 19/32 1 Whistle Same Day $17.60
44720 5/8 (0.625)" 47 Round Die 5/8 1 Whistle Same Day $17.60
44721 21/32 (0.656)" 47 Round Die 21/32 1 Whistle Same Day $17.60
44722 11/16 (0.688)" 47 Round Die 11/16 1 Whistle Same Day $17.60
44723 23/32 (0.719)" 47 Round Die 23/32 1 Whistle Same Day $17.60
44724 3/4 (0.750)" 47 Round Die 3/4 1 Whistle Same Day $17.60
44725 25/32 (0.781)" 47 Round Die 25/32 1 Whistle Same Day $17.60
44726 13/16 (0.813)" 47 Round Die 13/16 1 Whistle Same Day $17.60
44727 27/32 (0.844)" 47 Round Die 27/32 1 Whistle Same Day $17.60
44728 7/8 (0.875)" 47 Round Die 7/8 1 Whistle Same Day $17.60
44729 29/32 (0.906)" 47 Round Die 29/32 1 Whistle Same Day $17.60
44730 15/16 (0.938)" 47 Round Die 15/16 1 Whistle Same Day $17.60
44731 31/32 (0.969)" 47 Round Die 31/32 1 Whistle Same Day $17.60
44732 1" (1.000)" 47 Round Die 1" 1 Whistle Same Day $17.60
44733 1-1/32 (1.031)" 47 Round Die 1-1/32 1 Whistle Same Day $17.60
44734 1-1/16 (1.063)" 47 Round Die 1-1/16 1 Whistle Same Day $17.60
44735 1-3/32 (1.094)" 47 Round Die 1-3/32 1 Whistle Same Day $17.60
44736 1-1/8 (1.125)" 47 Round Die 1-1/8 1 Whistle Same Day $17.60
44737 1-5/32 (1.156)" 47 Round Die 1-5/32 1 Whistle Same Day $17.60
44738 1-3/16 (1.188)" 47 Round Die 1-3/16 1 Whistle Same Day $17.60
44739 1-7/32 (1.219)" 47 Round Die 1-7/32 1 Whistle Same Day $17.60
44740 1-1/4 (1.250)" 47 Round Die 1-1/4 1 Whistle Same Day $17.60
44741 1-9/32 (1.281)" 47 Round Die 1-9/32 1 Whistle Same Day $17.60
44742 1-5/16 (1.313)" 47 Round Die 1-5/16 1 Whistle Same Day $17.60
44743 1-11/32 (1.344)" 47 Round Die 1-11/32 1 Whistle Same Day $17.60
44744 1-3/8 (1.375)" 47 Round Die 1-3/8 1 Whistle Same Day $17.60
44746 1-7/16 (1.437)" 47 Round Die 1-7/16 1 Whistle Same Day $17.60
44750 1-9/16 (1.563)" 47 Round Die 1-9/16 1 Whistle Same Day $17.60
4474524 3/4 (0.750)" 47 Round Die 3/4" With 45 degree 1 Whistle Same Day $53.75
447RD 47 Round Die in Any size not shown 1 Whistle 24 hours $30.80
Part No. Size Description Locating Spot Availability Price Quantity Purchase
44791141 13/32 x 1-9/32 (0.406 x 1.281)" 47 Oblong Die 11/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44791525 15/32 x 25/32 (0.468 x 0.781)" 47 Oblong Die 15/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44791533 15/32 x 1-1/32 (0.469 x 1.031)" 47 Oblong Die 15/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44791541 15/32 x 1-9/32 (0.469 x 1.281)" 47 Oblong Die 15/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44791626 1/2 x 13/16 (0.500 x 0.812)" 47 Oblong Die 1/2 x 13/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44791630 1/2 x 15/16 (0.500 x 0.937)" 47 Oblong Die 1/2 x 15/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44791933 19/32 x 1-1/32 (0.594 x 1.031)" 47 Oblong Die 19/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44791935 19/32 x 1-3/32 (0.594 x 1.093)" 47 Oblong Die 19/32 x 1-3/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44791941 19/32 x 1-9/32 (0.594 x 1.281)" 47 Oblong Die 19/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44791949 19/32 x 1-17/32 (0.594 x 1.531)" 47 Oblong Die 19/32 x 1-17/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792034 5/8 x 1-1/16 (0.625 x 1.063)" 47 Oblong Die 5/8 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792042 5/8 x 1-5/16 (0.625 x 1.313)" 47 Oblong Die 5/8 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792141 21/32 x 1-9/32 (0.656 x 1.281)" 47 Oblong Die 21/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792242 11/16 x 1-5/16 (0.688 x 1.313)" 47 Oblong Die 11/16 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792333 23/32 x 1-1/32 (0.719 x 1.031)" 47 Oblong Die 23/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792341 23/32 x 1-9/32 (0.719 x 1.281)" 47 Oblong Die 23/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792349 23/32 x 1-17/32 (0.719 x 1.531)" 47 Oblong Die 23/32 x 1-17/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792434 3/4 x 1-1/16 (0.750 x 1.063)" 47 Oblong Die 3/4 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792436 3/4 x 1-1/8 (0.750 x 1.125)" 47 Oblong Die 3/4 x 1-1/8 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792442 3/4 x 1-5/16 (0.750 x 1.313)" 47 Oblong Die 3/4 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792541 25/32 x 1-9/32 (0.781 x 1.281)" 47 Oblong Die 25/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792642 13/16 x 1-5/16 (0.813 x 1.313)" 47 Oblong Die 13/16 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792733 27/32 x 1-1/32 (0.844 x 1.031)" 47 Oblong Die 27/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792735 27/32 x 1-3/32 (0.844 x 1.094)" 47 Oblong Die 27/32 x 1-3/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792737 27/32 x 1-5/32 (0.844 x 1.156)" 47 Oblong Die 27/32 x 1-5/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792741 27/32 x 1-9/32 (0.844 x 1.281)" 47 Oblong Die 27/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792749 27/32 x 1-17/32 (0.844 x 1.531)" 47 Oblong Die 27/32 x 1-17/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792834 7/8 x 1-1/16 (0.875 x 1.063)" 47 Oblong Die 7/8 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792836 7/8 x 1-1/8 (0.875 x 1.125)" 47 Oblong Die 7/8 x 1-1/8 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792838 7/8 x 1-3/16 (0.875 x 1.188)" 47 Oblong Die 7/8 x 1-3/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792842 7/8 x 1-5/16 (0.875 x 1.313)" 47 Oblong Die 7/8 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792850 7/8 x 1-9/16 (0.875 x 1.563)" 47 Oblong Die 7/8 x 1-9/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44792941 29/32 x 1-9/23 (.906 x 1.281)" 47 Oblong Die 29/32 x 1-9/32 With2 Whistle Spots 2 Whistles Same Day $46.00
44793042 15/16 x 1-5/16 (.937 x 1.312)" 47 Oblong Die 15/16 x 1-5/16 With2 Whistle Spots 2 Whistles Same Day $46.00
44793137 31/32 x 1-5/32 (0.969 x 1.156)" 47 Oblong Die 31/32 x 1-5/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44793149 31/32 x 1-17/32 (0.969 x 1.531)" 47 Oblong Die 31/32 x 1-17/32 With 2 Whistle Spots 2 Whistles Same Day $46.00
44793238 1 x 1-3/16" (1.000 x 1.188)" 47 Oblong Die 1" X 1-3/16" With 2 Whistle Spots 2 Whistles Same Day $46.00
44793242 1 x 1-5/16 (1.000 x 1.313)" 47 Oblong Die 1 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $46.00
44793644 1-1/8 x 1-3/8" (1.125 x 1.375)" 47 Oblong Die 1-1/8 x 1-3/8 With 2 Whistle Spots 2 Whistles Same Day $46.00
447OB 47 Oblong Die in Any size not shown 2 Whistles 24 hours $65.90
Part No. Size Description Locating Spot Availability Price Quantity Purchase
447819 19/32" 47 Square Die 19/32 1 Whistle Same Day $46.00
44783964 39/64" 47 Square Die 39/64 1 Whistle Same Day $46.00
447820 5/8" 47 Square Die 5/8 1 Whistle Same Day $46.00
447SQ 47 Square Die in Any size not shown 1 Whistle 24 hours $65.90
Part No. Size Description Locating Spot Availability Price Quantity Purchase
447HX 47 Hex Die in Any size not shown 1 Whistle 24 hours $65.90
Part No. Size Description Locating Spot Availability Price Quantity Purchase
447RC 47 Rectangle Die in Any size not shown 2 Whistles 24 hours $65.90

Oversize Punches & Dies

65

Specifications

  • Head Diameter1-3/4"
  • Body Diameter1-1/2"
  • Overall Length3-1/8"

Equivalent Part Numbers

  • CPDC-282
  • APC165
  • PWPY

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
265RD None 65 Round Punch Any size not shown 24 hours $29.10
Part No. Size Keyway Description Availability Price Quantity Purchase
265OB 65 Oblong Punch Any size not shown 24 hours $70.30
Part No. Size Keyway Description Availability Price Quantity Purchase
265SQ 65 Square Punch Any size not shown 24 hours $70.30
Part No. Size Keyway Description Availability Price Quantity Purchase
265HX 65 Hex Punch Any size not shown 24 hours $70.30
Part No. Size Keyway Description Availability Price Quantity Purchase
265RC 65 Rectangle Punch Any size not shown 24 hours $70.30

291

Specifications

  • Outside Diameter2.500"
  • Height1"

Equivalent Part Numbers

  • CPDC-291FS
  • APC391
  • PWUW

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
29128 7/8 (0.875)" 291 Round Die 7/8 None Same Day $51.40
29129 29/32 (0.903)" 291 Round Die 29/32 None Same Day $51.40
29130 15/16 (0.938)" 291 Round Die 15/16 None Same Day $51.40
29132 1 (1.000)" 291 Round Die 1" None Same Day $51.40
29134 1-1/16 (1.063)" 291 Round Die 1-1/16 None Same Day $51.40
29135 1-3/32 (1.094)" 291 Round Die 1-3/32 None Same Day $51.40
29136 1-1/8 (1.125)" 291 Round Die 1-1/8 None Same Day $51.40
29138 1-3/16 (1.188)" 291 Round Die 1-3/16 None Same Day $51.40
29144 1-3/8 (1.375)" 291 Round Die 1-3/8 None Same Day $51.40
29146 1-7/16 (1.438)" 291 Round Die 1-7/16 None Same Day $51.40
29148 1-1/2 (1.500)" 291 Round Die 1-1/2 None Same Day $51.40
29151 1-19/32 (1.594)" 291 Round Die 1-19/32 None Same Day $51.40
29152 1-5/8 (1.625)" 291 Round Die 1-5/8 None Same Day $51.40
291RD 291 Round Die in Any size not shown None 24 hours $51.40
Part No. Size Description Locating Spot Availability Price Quantity Purchase
291OB 291 Oblong Die in Any size not shown 2 Whistles 24 hours $66.30
Part No. Size Description Locating Spot Availability Price Quantity Purchase
291SQ 291 Square Die in Any size not shown 1 Whistle 24 hours $66.30
Part No. Size Description Locating Spot Availability Price Quantity Purchase
291HX 291 Hex Die in Any size not shown 1 Whistle 24 hours $66.30
Part No. Size Description Locating Spot Availability Price Quantity Purchase
291RC 291 Rectangle Die in Any size not shown 2 Whistles 24 hours $66.30

Parts & Accessories

Flat Shear Blades

Image Part No. Description Availability Price Quantity Purchase

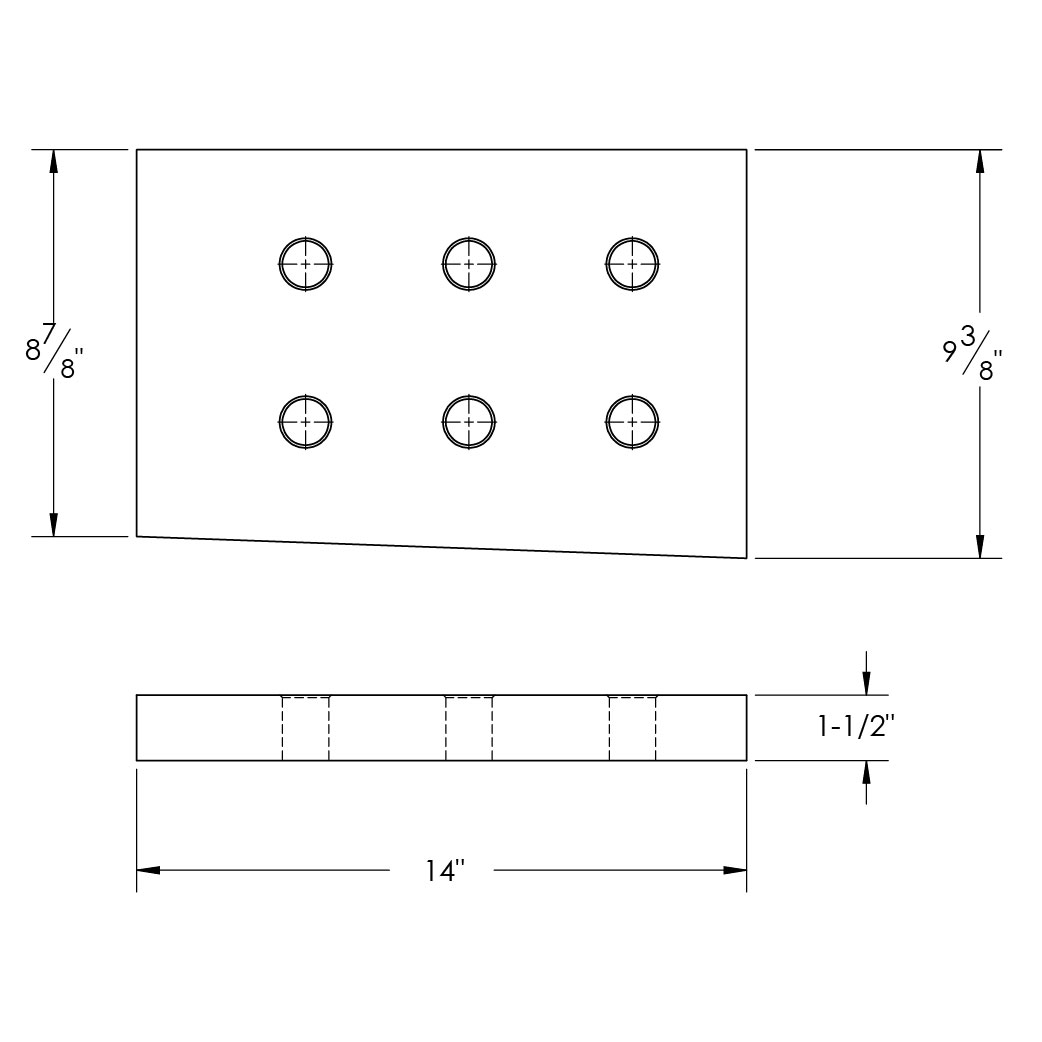

YB17680-25 Upper Tapered Flat Bar Blade Same Day $1,500.00
C23272 Flat Bar Blade Same Day $470.40
C20901 Shear Blade 14" 15 days Call for Quote

Angle Shear Blades

Image Part No. Description Availability Price Quantity Purchase

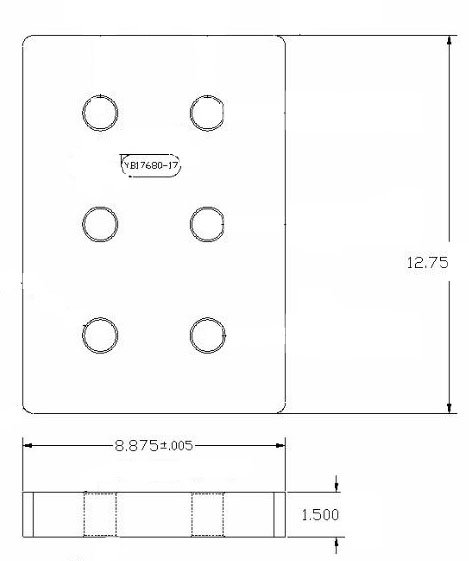

YB17680-17 Upper Angle Shear Blade - Radius Corners 3/8" Same Day $1,200.00

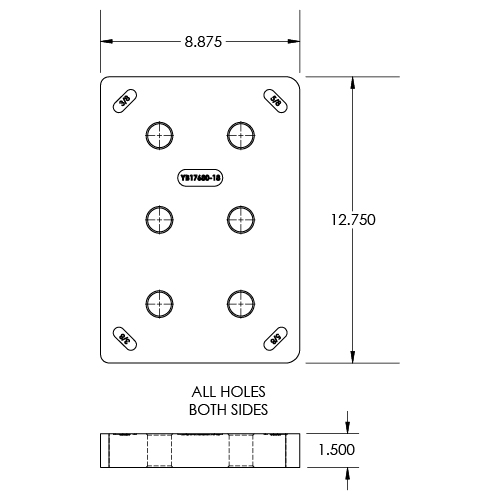

YB17680-18 Upper Angle Shear Blade - Two Radius Corners 3/8" and Two 5/8" Same Day $1,200.00

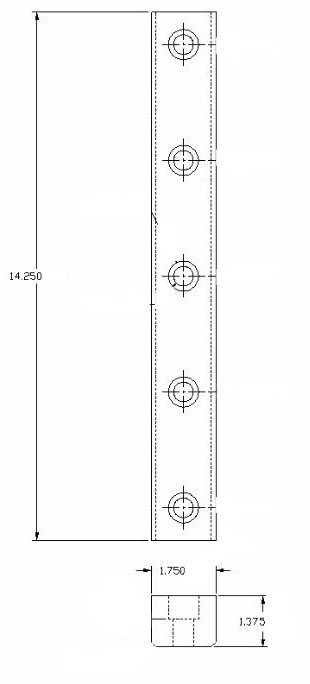

YC17680-15 Long Lower Angle Shear Blade 15 days $425.00

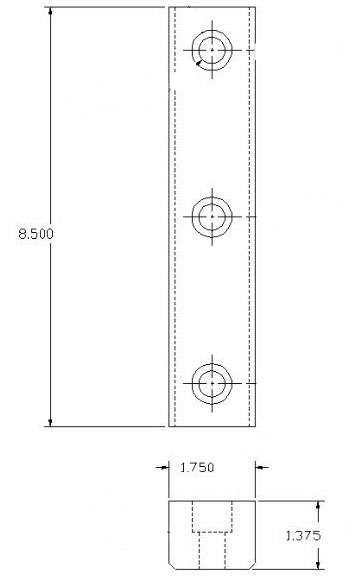

YC17680-16 Short Lower Angle Shear Blade 15 days $306.90
