hougen-ogura 75006

Standard Punches & Dies

75006

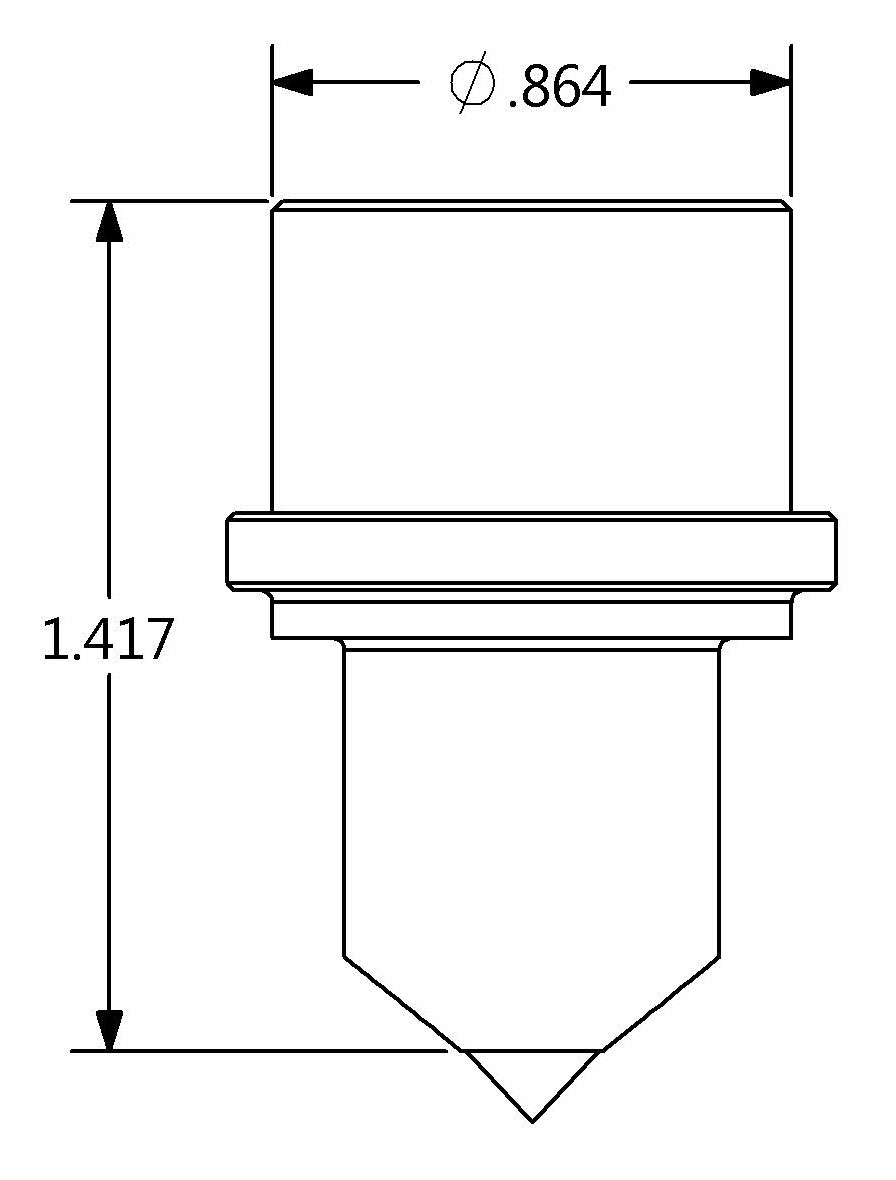

Specifications

Head Diameter0.864"
Body Diameter--"
Overall Length1.417"

Equivalent Part Numbers

CPDC-006

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No.	Size	Keyway	Description	Availability	Price
75006PRD		None	75006 (Hougen) Round Punch Any size not shown	48 hours	Call for Quote
75945	3/8"	N/A	75006 Round Punch 3/8"	48 hours	Call for Quote
75568	7/16"	N/A	75006 Round Punch 7/16"	48 hours	$95.15
75569	1/2"	N/A	75006 Round Punch 1/2"	48 hours	$95.15
75570	9/16"	N/A	75006 Round Punch 9/16"	48 hours	$95.15
75571	5/8"	N/A	75006 Round Punch 5/8"	48 hours	$95.15
75572	11/16"	N/A	75006 Round Punch 11/16"	48 hours	$95.15
75947	23/32"	N/A	75006 Round Punch 23/32"	48 hours	$95.15
75573	3/4"	N/A	75006 Round Punch 3/4"	48 hours	$95.15
75574	25/32"	N/A	75006 Round Punch 25/32"	48 hours	$95.15
75575	13/16"	N/A	75006 Round Punch 13/16"	48 hours	$95.15
75576	7/8"	N/A	75006 Round Punch 7/8"	48 hours	$95.15
75577	15/16"	N/A	75006 Round Punch 15/16"	48 hours	$95.15

Part No.	Size	Keyway	Description	Availability	Price
75006POB		N/A	75006 (Hougen) Oblong Punch Any size not shown	48 hours	Call for Quote
75705	7/16 x 5/8"	N/A	75006 Oblong Punch 7/16" X 5/8"	48 hours	$133.05
75706	1/2 x 3/4"	N/A	75006 Oblong Punch 1/2" X 3/4"	48 hours	$133.05
75707	9/16 x 13/16"	N/A	75006 Oblong Punch 9/16" X 13/16"	48 hours	$133.05
75708	11/16 x 13/16"	N/A	75006 Oblong Punch 11/16" X 13/16"	48 hours	$133.05

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
75006PSQ		N/A	75006 (Hougen) Square Punch Any size not shown	48 hours	Call for Quote

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
75006PHX		N/A	75006 (Hougen) Hex Punch Any size not shown	48 hours	Call for Quote

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
75006PRC		N/A	75006 (Hougen) Rectangle Punch Any size not shown	48 hours	Call for Quote

75006

Specifications

Outside Diameter1.571"
Height.866"

Equivalent Part Numbers

CPDC-006
APC0
PW0

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Die Clearance 0.000"
Die Size 0.000"

Part No.	Size	Description	Locating Spot	Availability	Price
75006DRD		75006 (Hougen) Round Die in Any size not shown	None	48 hours	Call for Quote
75948	3/8"	75006 Round Die 3/8" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75578	7/16"	75006 Round Die 7/16" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75579	7/16"	75006 Round Die 7/16" B (for >1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75580	7/16"	75006 Round Die 7/16" C (for >1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75949	15/32"	75006 Round Die 15/32" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75950	15/32"	75006 Round Die 15/32" B (for 1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75951	15/32"	75006 Round Die 15/32" C (for 1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75581	1/2"	75006 Round Die 1/2" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75582	1/2"	75006 Round Die 1/2" B (for >1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75583	1/2"	75006 Round Die 1/2" C (for >1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75584	9/16"	75006 Round Die 9/16" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75585	9/16"	75006 Round Die 9/16" B (for >1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75586	9/16"	75006 Round Die 9/16" C (for >1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75587	9/16"	75006 Round Die 9/16" D (for >3/8-1/2 Thick Material)	N/A	48 hours	$70.90
75588	5/8"	75006 Round Die 5/8" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75589	5/8"	75006 Round Die 5/8" B (for >1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75590	5/8"	75006 Round Die 5/8" C (for >1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75591	5/8"	75006 Round Die 5/8" D (for >3/8-1/2 Thick Material)	N/A	48 hours	$70.90
75592	11/16"	75006 Round Die 11/16" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75593	11/16"	75006 Round Die 11/16" B (for >1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75594	11/16"	75006 Round Die 11/16" C (for >1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75595	11/16"	75006 Round Die 11/16" D (for >3/8-1/2 Thick Material)	N/A	48 hours	$70.90
75953	23/32"	75006 Round Die 23/32" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75954	23/32"	75006 Round Die 23/32" B (for 1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75955	23/32"	75006 Round Die 23/32" C (for 1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75956	23/32"	75006 Round Die 23/32" D (for 3/8-1/2 Thick Material)	N/A	48 hours	$70.90
75958	23/32"	75006 Round Die 23/32" CD (for 5/16-1/2 Thick Material)	N/A	48 hours	$70.90
75596	3/4"	75006 Round Die 3/4" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75597	3/4"	75006 Round Die 3/4" B (for >1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75598	3/4"	75006 Round Die 3/4" C (for >1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75599	3/4"	75006 Round Die 3/4" D (for >3/8-1/2 Thick Material)	N/A	48 hours	$70.90
75600	25/32"	75006 Round Die 25/32" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75601	25/32"	75006 Round Die 25/32" B (for >1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75602	25/32"	75006 Round Die 25/32" C (for >1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75603	25/32"	75006 Round Die 25/32" D (for 5/16 Maximum Material Thickness)	N/A	48 hours	$70.90
75604	13/16"	75006 Round Die 13/16" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75605	13/16"	75006 Round Die 13/16" B (for >1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75606	13/16"	75006 Round Die 13/16" C (for >1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75607	13/16"	75006 Round Die 13/16" D (for >3/8-1/2 Thick Material)	N/A	48 hours	$70.90
75608	7/8"	75006 Round Die 7/8" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75609	7/8"	75006 Round Die 7/8" B (for >1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75610	7/8"	75006 Round Die 7/8" C (for >1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75611	7/8"	75006 Round Die 7/8" D (for >3/8-1/2 Thick Material)	N/A	48 hours	$70.90
75612	15/16"	75006 Round Die 15/16" A (for 5/64-1/8 Thick Material)	N/A	48 hours	$70.90
75613	15/16"	75006 Round Die 15/16" B (for >1/8-1/4 Thick Material)	N/A	48 hours	$70.90
75614	15/16"	75006 Round Die 15/16" C (for >1/4-3/8 Thick Material)	N/A	48 hours	$70.90
75615	15/16"	75006 Round Die 15/16" D (for >3/8-15/32 Thick Material)	N/A	48 hours	$70.90

Part No.	Size	Description	Locating Spot	Availability	Price
75006DOB		75006 (Hougen) Oblong Die in Any size not shown	None	48 hours	Call for Quote
75709	7/16 x 5/8"	75006 Oblong Die 7/16" X 5/8" A	N/A	48 hours	$88.90
75710	7/16 x 5/8"	75006 Oblong Die 7/16" X 5/8" B	N/A	48 hours	$88.90
75711	7/16 x 5/8"	75006 Oblong Die 7/16" X 5/8" C	N/A	48 hours	$88.90
75712	1/2 x 3/4"	75006 Oblong Die 1/2" X 3/4" A	N/A	48 hours	$88.90
75713	1/2 x 3/4"	75006 Oblong Die 1/2" X 3/4" B	N/A	48 hours	$88.90
75714	1/2 x 3/4"	75006 Oblong Die 1/2" X 3/4" C	N/A	48 hours	$88.90
75715	9/16 x 13/16"	75006 Oblong Die 9/16" X 13/16" A	N/A	48 hours	$88.90
75716	9/16 x 13/16"	75006 Oblong Die 9/16" X 13/16" B	N/A	48 hours	$88.90
75717	9/16 x 13/16"	75006 Oblong Die 9/16" X 13/16" C	N/A	48 hours	$88.90
75718	9/16 x 13/16"	75006 Oblong Die 9/16" X 13/16" D	N/A	48 hours	$88.90
75719	11/16 x 13/16"	75006 Oblong Die 11/16" X 13/16" A	N/A	48 hours	$88.90
75720	11/16 x 13/16"	75006 Oblong Die 11/16" X 13/16" B	N/A	48 hours	$88.90
75721	11/16 x 13/16"	75006 Oblong Die 11/16" X 13/16" C	N/A	48 hours	$88.90
75722	11/16 x 13/16"	75006 Oblong Die 11/16" X 13/16" D	N/A	48 hours	$88.90

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
75006DSQ		75006 (Hougen) Square Die in Any size not shown	None	48 hours	Call for Quote

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
75006DHX		75006 (Hougen) Hex Die in Any size not shown	None	48 hours	Call for Quote

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
75006DRC		75006 (Hougen) Rectangle Die in Any size not shown	None	48 hours	Call for Quote

Oversize Punches & Dies

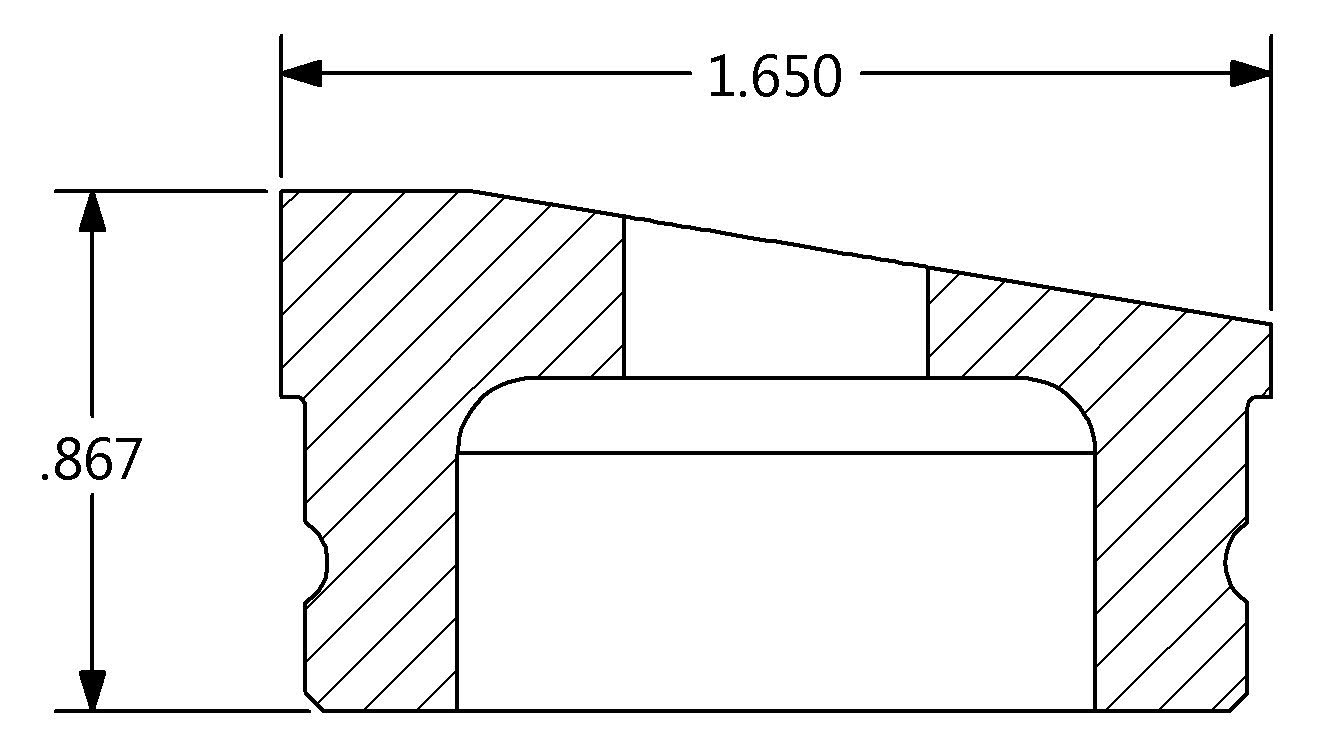

75006B

Specifications

Outside Diameter1.650"
Height.867"

Equivalent Part Numbers

CPD0
APC0
PW0

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Die Clearance 0.000"
Die Size 0.000"

Part No.	Size	Description	Locating Spot	Availability	Price
75616	7/16"	75006B Round Bevel Die 7/16" CC (for 5/16 Maximum Material Thickness)	N/A	48 hours	$84.05
75952	15/32"	75006B Round Bevel Die 15/32" CC (for 5/16 Maximum Thick Material)	N/A	48 hours	$84.05
75617	1/2"	75006B Round Bevel Die 1/2" CC (for 5/16 Maximum Material Thickness)	N/A	48 hours	$84.05
75618	9/16"	75006B Round Bevel Die 9/16" CC (for 5/16 Maximum Material Thickness)	N/A	48 hours	$84.05
75619	9/16"	75006B Round Bevel Die 9/16" CD (for >5/16-1/2 Thick Material)	N/A	48 hours	$84.05
75620	5/8"	75006B Round Bevel Die 5/8" CC (for 5/16 Maximum Material Thickness)	N/A	48 hours	$84.05
75621	5/8"	75006B Round Bevel Die 5/8" CD (for >5/16-1/2 Thick Material)	N/A	48 hours	$84.05
75622	11/16"	75006B Round Bevel Die 11/16" CC (for 5/16 Maximum Material Thickness)	N/A	48 hours	$84.05
75623	11/16"	75006B Round Bevel Die 11/16" CD(for >5/16-1/2 Thick Material)	N/A	48 hours	$84.05
75957	23/32"	75006B Round Bevel Die 23/32" CC (for 5/16 Maximum Material Thickness)	N/A	48 hours	$84.05
75624	3/4"	75006B Round Bevel Die 3/4" CC (for 5/16 Maximum Material Thickness)	N/A	48 hours	$84.05
75625	3/4"	75006B Round Bevel Die 3/4" CD (for >5/16-1/2 Thick Material)	N/A	48 hours	$84.05
75626	25/32"	75006B Round Bevel Die 25/32" CC (for 5/16 Maximum Material Thickness)	N/A	48 hours	$84.05
75627	25/32"	75006B Round Bevel Die 25/32" CD(for >5/16-1/2 Thick Material)	N/A	48 hours	$84.05
75628	13/16"	75006B Round Bevel Die 13/16" CC (for 5/16 Maximum Material Thickness)	N/A	48 hours	$84.05
75631	7/8"	75006B Round Bevel Die 7/8" CD (for >5/16-1/2 Thick Material)	N/A	48 hours	$84.05

Part No.	Size	Description	Locating Spot	Availability	Price
75723	7/16 x 5/8"	75006B Oblong Bevel Die 7/16" X 5/8" CC	N/A	48 hours	$110.00
75724	1/2 x 3/4"	75006B Oblong Bevel Die 1/2"+ X 3/4" CC	N/A	48 hours	$110.00
75725	9/16 x 13/16"	75006B Oblong Bevel Die 9/16" X 13/16" CC	N/A	48 hours	$110.00
75726	9/16 x 13/16"	75006B Oblong Bevel Die 9/16" X 13/16" CD	N/A	48 hours	$110.00
75727	11/16 x 13/16"	75006B Oblong Bevel Die 11/16" X 13/16" CC	N/A	48 hours	$110.00
75728	11/16 x 13/16"	75006B Oblong Bevel Die 11/16" X 13/16" CD	N/A	48 hours	$110.00
