Hougen-Ogura

Hougen-Ogura 76000

Standard Punches & Dies

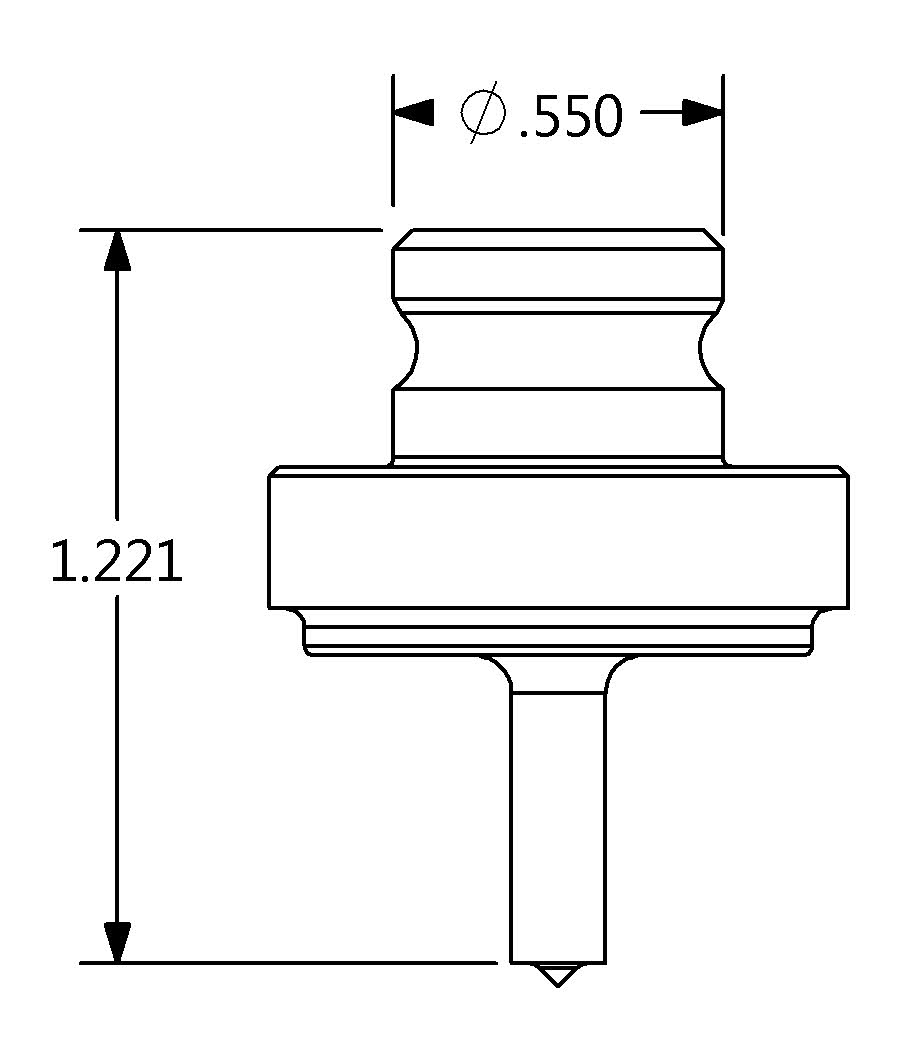

76000

Specifications

  • Head Diameter.550"
  • Body Diameter-"
  • Overall Length1.221"

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
76200 5/32" N/A 76000 Round Punch 5/32 48 hours $44.00
76201 3/16" N/A 76000 Round Punch 3/16 48 hours $44.00
76202 7/32" N/A 76000 Round Punch 7/32 48 hours $44.00
76203 15/64" N/A 76000 Round Punch 15/64 48 hours $44.00
75421 1/4" N/A 76000 Round Punch 1/4 48 hours $44.00
75422 5/16" N/A 76000 Round Punch 5/16 48 hours $44.00
75423 11/32" N/A 76000 Round Punch 11/32 48 hours $44.00
75424 3/8" N/A 76000 Round Punch 3/8 48 hours $44.00
75425 7/16" N/A 76000 Round Punch 7/16 48 hours $44.00
75426 1/2" N/A 76000 Round Punch 1/2 48 hours $44.00
75427 9/16" N/A 76000 Round Punch 9/16 48 hours $44.00
76248 19/32" N/A 76000 Round Punch 19/32 48 hours $44.00
Part No. Size Keyway Description Availability Price Quantity Purchase
76225 1/4 x 3/8" N/A 76000 Oblong Punch 1/4 x 3/8 48 hours $88.00
76226 11/32 x 43/64" N/A 76000 Oblong Punch 11/32 X 43/64 48 hours $88.00
76227 23/64 x 17/32" N/A 76000 Oblong Punch 23/64 x 17/32 48 hours $88.00
76228 3/8 x 19/32" N/A 76000 Oblong Punch 3/8 X 19/32 48 hours $88.00
75638 1/4 x 1/2" N/A 76000 Oblong Punch 1/4" X 1/2" 48 hours $88.00
75639 11/32 x 1/2" N/A 76000 Oblong Punch 11/32" X 1/2" 48 hours $88.00
75640 7/16 x 5/8" N/A 76000 Oblong Punch 7/16" X 5/8" 48 hours $88.00
Part No. Size Keyway Description Availability Price Quantity Purchase
Part No. Size Keyway Description Availability Price Quantity Purchase
Part No. Size Keyway Description Availability Price Quantity Purchase

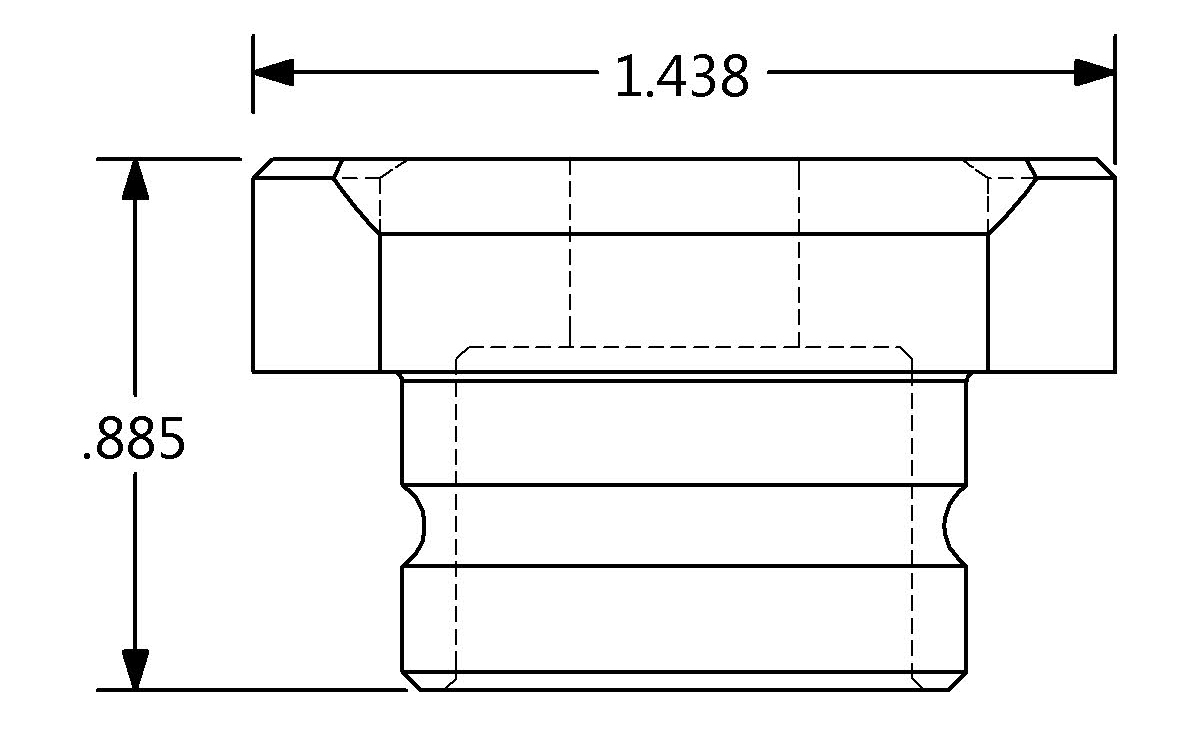

76000

Specifications

  • Outside Diameter1.438"
  • Height.885"

Equivalent Part Numbers

  • CPD0
  • APC0
  • PW0

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
76204 5/32" 76000 Round Die 5/32"A (for 5/64 Thick Material) N/A 48 hours $49.50
76205 3/16" 76000 Round Die 3/16"A (for 5/64 - .118 Thick Material) N/A 48 hours $49.50
76206 7/32" 76000 Round Die 7/32"A (for 5/64 - .118 Thick Material) N/A 48 hours $49.50
76207 15/64" 76000 Round Die 15/64"A (for 5/64 -1/8 Thick Material) N/A 48 hours $49.50
76208 1/4" 76000 Round Die 1/4"A (for 5/64 -1/8 Thick Material) N/A 48 hours $49.50
76209 5/16" 76000 Round Die 5/16"A (for 5/64 -1/8 Thick Material) N/A 48 hours $49.50
76210 11/32" 76000 Round Die 11/32"A (for 5/64 -1/8 Thick Material) N/A 48 hours $49.50
76211 3/8" 76000 Round Die 3/8"A (for 5/64 -1/8 Thick Material) N/A 48 hours $49.50
76212 7/16" 76000 Round Die 7/16"A (for 5/64 -1/8 Thick Material) N/A 48 hours $49.50
76213 1/2" 76000 Round Die 1/2"A (for 5/64 -1/8 Thick Material) N/A 48 hours $49.50
76214 9/16" 76000 Round Die 9/16"A (for 5/64 -1/8 Thick Material) N/A 48 hours $49.50
76215 19/32" 76000 Round Die 19/32"A (for 5/64 -1/8 Thick Material) N/A 48 hours $49.50
76216 15/64" 76000 Round Die 15/64" B (for 5/32 Thick Material) N/A 48 hours $49.50
76217 1/4" 76000 Round Die 1/4" B (for 5/32 - 15/64 Thick Material) N/A 48 hours $49.50
76218 5/16" 76000 Round Die 5/16" B (for 5/32 - 15/64 Thick Material) N/A 48 hours $49.50
76219 11/32" 76000 Round Die 11/32" B (for 5/32 - 15/64 Thick Material) N/A 48 hours $49.50
76220 3/8" 76000 Round Die 3/8" B (for 5/32 - 15/64 Thick Material) N/A 48 hours $49.50
76221 7/16" 76000 Round Die 7/16" B (for 5/32 - 15/64 Thick Material) N/A 48 hours $49.50
76222 1/2" 76000 Round Die 1/2" B (for 5/32 - 15/64 Thick Material) N/A 48 hours $49.50
76223 9/16" 76000 Round Die 9/16" B (for 5/32 - 15/64 Thick Material) N/A 48 hours $49.50
76224 19/32" 76000 Round Die 19/32" B (for 5/32 - 15/64 Thick Material) N/A 48 hours $49.50
Part No. Size Description Locating Spot Availability Price Quantity Purchase
76229 1/4 x 3/8" 76000 Oblong Die 1/4 x 3/8 A N/A 48 hours $71.50
76230 1/4 x 1/2" 76000 Oblong Die 1/4 X 1/2 A N/A 48 hours $71.50
76231 11/32 x 1/2" 76000 Oblong Die 11/32 X 1/2 A N/A 48 hours $71.50
76232 11/32 x 43/64" 76000 Oblong Die 11/32 X 43/64 A N/A 48 hours $71.50
76233 23/64 x 17/32" 76000 Oblong Die 23/64 x 17/32 A N/A 48 hours $71.50
76234 3/8 x 19/32" 76000 Oblong Die 3/8 X 19/32 A N/A 48 hours $71.50
76235 7/16 x 5/8" 76000 Oblong Die 7/16 X 5/8 A N/A 48 hours $71.50
76236 1/4 x 3/8" 76000 Oblong Die 1/4 x 3/8 B N/A 48 hours $71.50
76237 1/4 x 1/2" 76000 Oblong Die 1/4 X 1/2 B N/A 48 hours $71.50
76238 11/32 x 1/2" 76000 Oblong Die 11/32 X 1/2 B N/A 48 hours $71.50
76239 11/32 x 43/64" 76000 Oblong Die 11/32 X 43/64 B N/A 48 hours $71.50
76240 23/64 x 17/32" 76000 Oblong Die 23/64 x 17/32 B N/A 48 hours $71.50
76241 3/8 x 19/32" 76000 Oblong Die 3/8 X 19/32 B N/A 48 hours $71.50
76242 7/16 x 5/8" 76000 Oblong Die 7/16 X 5/8 B N/A 48 hours $71.50
Part No. Size Description Locating Spot Availability Price Quantity Purchase
Part No. Size Description Locating Spot Availability Price Quantity Purchase
Part No. Size Description Locating Spot Availability Price Quantity Purchase

Oversize Punches & Dies

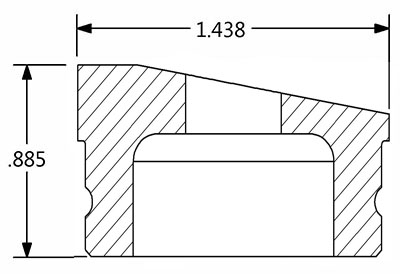

76000B

Specifications

  • Outside Diameter1.438"
  • Height.885"

Equivalent Part Numbers

  • CPD0
  • APC0
  • PW0

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
76245 3/8" 76000B Round Bevel Die C3/8" (for 19/64 Thick Material) N/A 48 hours $55.00
76246 7/16" 76000B Round Bevel Die C7/16" (for 19/64 Thick Material) N/A 48 hours $55.00
76247 1/2" 76000B Round Bevel Die C1/2" (for 19/64 Thick Material) N/A 48 hours $55.00
Part No. Size Description Locating Spot Availability Price Quantity Purchase
Part No. Size Description Locating Spot Availability Price Quantity Purchase
Part No. Size Description Locating Spot Availability Price Quantity Purchase
Part No. Size Description Locating Spot Availability Price Quantity Purchase
