Geka

Geka Multi 11

Standard Punches & Dies

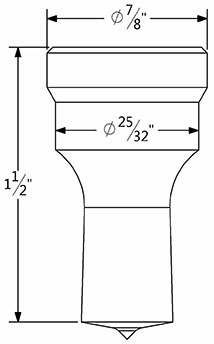

208

Specifications

  • Head Diameter7/8"
  • Body Diameter25/32"
  • Overall Length1-1/2"

Equivalent Part Numbers

  • CPDF-7
  • APC108
  • PWPX

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
208Rd None 208 Round Punch Any size not shown 24 hours $21.20
Part No. Size Keyway Description Availability Price Quantity Purchase
208OBGeka 2mm x 4mm 208 Oblong Punch With 2mm x 4mm Keyway in any size not shown 5 Days $44.90
Part No. Size Keyway Description Availability Price Quantity Purchase
208SQGeka 2mm x 4mm 208 Square Punch With 2mm x 4mm Keyway in any size not shown 5 Days $44.90
Part No. Size Keyway Description Availability Price Quantity Purchase
208HXGeka 2mm x 4mm 208 Hex Punch With 2mm x 4mm Keyway in any size not shown 5 Days $44.90
Part No. Size Keyway Description Availability Price Quantity Purchase
208RCGeka 2mm x 4mm 208 Rectangular Punch With 2mm x 4mm Keyway in any size not shown 5 Days $44.90

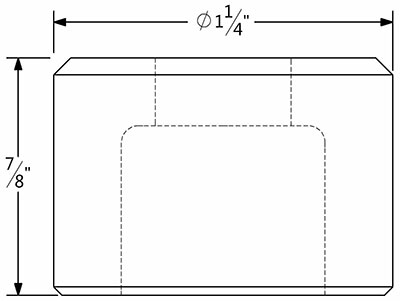

405

Specifications

  • Outside Diameter1-1/4"
  • Height7/8"

Equivalent Part Numbers

  • CPD0
  • APC0
  • PW0

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
40515 15/32 (0.469)" 405 Round Die 15/32 None Same Day $10.20
40516 1/2 (0.500)" 405 Round Die 1/2 None Same Day $10.20
40519 19/32 (0.594)" 405 Round Die 19/32 None Same Day $10.20
40520 5/8 (0.625)" 405 Round Die 5/8 None Same Day $10.20
40524 3/4 (0.750)" 405 Round Die 3/4 None Same Day $10.20
40527 27/32 (.844)" 405 Round Die 27/32 None Same Day $10.20
40529 29/32 (0.906)" 405 Round Die 29/32 None Same Day $10.20
405RD 405 Round Die in Any size not shown None 24 hours $20.20
Part No. Size Description Locating Spot Availability Price Quantity Purchase
405OB 405 Oblong Die in Any size not shown 2 Whistles 24 hours $60.20
Part No. Size Description Locating Spot Availability Price Quantity Purchase
405SQ 405 Square Die in Any size not shown 1 Whistle 24 hours $60.20
Part No. Size Description Locating Spot Availability Price Quantity Purchase
405HX 405 Hex Die in Any size not shown 1 Whistle 24 hours $60.20
Part No. Size Description Locating Spot Availability Price Quantity Purchase
405RC 405 Rectangle Die in Any size not shown 2 Whistles 24 hours $60.20
