ficep

ficep angle line a162

Standard Punches & Dies

64

Specifications

  • Head Diameter1-1/2"
  • Body Diameter1-1/4"
  • Overall Length3-1/8"

Equivalent Part Numbers

  • CPDC-770
  • APC164
  • PW770

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
26406 3/16 (0.188)" None 64 Round Punch 3/16 Same Day $12.95
26408 1/4 (0.250)" None 64 Round Punch 1/4 Same Day $12.95
26409 9/32 (.281)" None 64 Round Punch 9/32 Same Day $12.95
26410 5/16 (0.313)" None 64 Round Punch 5/16 Same Day $12.95
26411 11/32 (0.344)" None 64 Round Punch 11/32 Same Day $12.95
26412 3/8 (0.375)" None 64 Round Punch 3/8 Same Day $12.95
26413 13/32 (.406)" None 64 Round Punch 13/32 Same Day $12.95
26414 7/16 (0.438)" None 64 Round Punch 7/16 Same Day $12.95
26415 15/32 (0.469)" None 64 Round Punch 15/32 Same Day $12.95
26416 1/2 (0.500)" None 64 Round Punch 1/2 Same Day $12.95
26417 17/32 (0.531)" None 64 Round Punch 17/32 Same Day $12.95
26418 9/16 (0.563)" None 64 Round Punch 9/16 Same Day $12.95
26419 19/32 (0.594)" None 64 Round Punch 19/32 Same Day $12.95
26420 5/8 (0.625)" None 64 Round Punch 5/8 Same Day $12.95
26421 21/32 (0.656)" None 64 Round Punch 21/32 Same Day $12.95
26422 11/16 (0.688)" None 64 Round Punch 11/16 Same Day $12.95
26423 23/32 (0.719)" None 64 Round Punch 23/32 Same Day $12.95
26424 3/4 (0.750)" None 64 Round Punch 3/4 Same Day $12.95
26425 25/32 (0.781)" None 64 Round Punch 25/32 Same Day $12.95
26426 13/16 (0.813)" None 64 Round Punch 13/16 Same Day $12.95
26427 27/32 (0.844)" None 64 Round Punch 27/32 Same Day $12.95
26428 7/8 (0.875)" None 64 Round Punch 7/8 Same Day $12.95
26429 29/32 (0.906)" None 64 Round Punch 29/32 Same Day $12.95
26430 15/16 (0.938)" None 64 Round Punch 15/16 Same Day $12.95
26431 31/32 (0.969)" None 64 Round Punch 31/32 Same Day $12.95
26432 1 (1.000)" None 64 Round Punch 1" Same Day $12.95
26433 1-1/32 (1.031)" None 64 Round Punch 1-1/32 Same Day $12.95
26434 1-1/16 (1.063)" None 64 Round Punch 1-1/16 Same Day $12.95
26435 1-3/32 (1.094)" None 64 Round Punch 1-3/32 Same Day $12.95
26436 1-1/8 (1.125)" None 64 Round Punch 1-1/8 Same Day $12.95
26438 1-3/16 (1.188)" None 64 Round Punch 1-3/16 Same Day $12.95
26440 1-1/4 (1.250)" None 64 Round Punch 1-1/4 Same Day $12.95
26442 1-5/16 (1.313)" None 64 Round Punch 1-5/16 Same Day $12.95
26444 1-3/8 (1.375)" None 64 Round Punch 1-3/8 Same Day $12.95
26446 1-7/16 (1.438)" None 64 Round Punch 1-7/16 Same Day $12.95
26448 1-1/2 (1.500)" None 64 Round Punch 1-1/2 Same Day $12.95
2642964 29/64 (0.453)" None 64 Round Punch 29/64 Same Day $12.95
264RD None 64 Round Punch Any size not shown 24 hours $23.95
Part No. Size Keyway Description Availability Price Quantity Purchase
26491040 5/16" x 1-1/4" (0.313 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 5/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26491424 7/16" x 3/4" (0.437 x 0.750)" 1/4 x 1/8 Cross 64 Oblong Punch 7/16" X 3/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26491428 7/16" x 7/8" (0.437 x 0.875)" 1/4 x 1/8 Cross 64 Oblong Punch 7/16" X 7/8" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26491432 7/16" x 1" (0.438 x 1.000)" 1/4 x 1/8 Cross 64 Oblong Punch 7/16" X 1" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26491440 7/16" x 1-1/4" (0.438 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 7/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26491832 9/16" x 1" (0.563 x 1.000)" 1/4 x 1/8 Cross 64 Oblong Punch 9/16" X 1" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26491834 9/16" x 1-1/16" (0.563 x 1.063)" 1/4 x 1/8 Cross 64 Oblong Punch 9/16" X 1-1/16" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26491840 9/16" x 1-1/4" (0.563 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 9/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26491848 9/16" x 1-1/2" (0.563 x 1.500)" 1/4 x 1/8 Cross 64 Oblong Punch 9/16" X 1-1/2" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492024 5/8" x 3/4" (0.625 x 0.750)" 1/4 x 1/8 Cross 64 Oblong Punch 5/8" X 3/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492040 5/8" x 1-1/4" (0.625 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 5/8" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492232 11/16" x 1" (0.688 x 1.000)" 1/4 x 1/8 Cross 64 Oblong Punch 11/16" X 1" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492234 11/16" x 1-1/16" (0.688 x 1.063)" 1/4 x 1/8 Cross 64 Oblong Punch 11/16" X 1-1/16" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492240 11/16" x 1-1/4" (0.688 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 11/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492248 11/16" x 1-1/2" (0.688 x 1.500)" 1/4 x 1/8 Cross 64 Oblong Punch 11/16" X 1-1/2" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492440 3/4" x 1-1/4" (0.750 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 3/4" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492632 13/16" x 1" (0.813 x 1.000)" 1/4 x 1/8 Cross 64 Oblong Punch 13/16" X 1" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492634 13/16" x 1-1/16" (0.813 x 1.063)" 1/4 x 1/8 Cross 64 Oblong Punch 13/16" X 1-1/16" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492636 13/16" x 1-1/8" (0.813 x 1.125)" 1/4 x 1/8 Cross 64 Oblong Punch 13/16" X 1-1/8" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492640 13/16" x 1-1/4" (0.813 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 13/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492648 13/16" x 1-1/2" (0.813 x 1.563)" 1/4 x 1/8 Cross 64 Oblong Punch 13/16" X 1-1/2" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26492840 7/8" x 1-1/4" (0.875 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 7/8" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26493036 15/16" x 1-1/8" (0.938 x 1.125)" 1/4 x 1/8 Cross 64 Oblong Punch 15/16" X 1-1/8" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26493040 15/16" x 1-1/4" (0.938 x 1.250)" 1/4 x 1/8 Cross 64 Oblong Punch 15/16" X 1-1/4" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26493048 15/16" x 1-1/2" (0.938 x 1.500)" 1/4 x 1/8 Cross 64 Oblong Punch 15/16" X 1-1/2" With 1/4 X 1/8 Cross Keyways Same Day $44.90
26493442 1-1/16" x 1-5/16" (1.063 x 1.313)" 1/4 x 1/8 Cross 64 Oblong Punch 1-1/16" X 1-5/16" With 1/4 X 1/8 Cross Keyways Same Day $44.90
264OB 64 Oblong Punch Any size not shown 24 hours $61.40
Part No. Size Keyway Description Availability Price Quantity Purchase
264812 3/8 (0.375)" 1/4 x 1/8 64 Square Punch 3/8 With 1/4 x 1/8 Keyway Same Day $44.90
264824 3/4 (0.750)" 1/4 x 1/8 64 Square Punch 3/4 With 1/4 x 1/8 Keyway Same Day $44.90
26483564 35/64 (.546)" 1/4 x 1/8 64 Square Punch 35/64 With 1/4 x 1/8 Keyway Same Day $44.90
264818 9/16 (.562)" 1/4 x 1/8 64 Square Punch 9/16 With 1/4 x 1/8 Keyway Same Day $44.90
264SQ 64 Square Punch Any size not shown 24 hours $61.40
Part No. Size Keyway Description Availability Price Quantity Purchase
264HX 64 Hex Punch Any size not shown 24 hours $61.40
Part No. Size Keyway Description Availability Price Quantity Purchase
264RC 64 Rectangle Punch Any size not shown 24 hours $61.40

417

Specifications

  • Outside Diameter2"
  • Height1"

Equivalent Part Numbers

  • CPDF-59
  • APC317
  • PWJC

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown” and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
41705 5/32 (0.156)" 417 Round Die 5/32 None Same Day $15.20
41706 3/16 (0.188)" 417 Round Die 3/16 None Same Day $15.20
41707 7/32 (0.219)" 417 Round Die 7/32 None Same Day $15.20
41708 1/4 (0.250)" 417 Round Die 1/4 None Same Day $15.20
41709 9/32 (0.281)" 417 Round Die 9/32 None Same Day $15.20
41710 5/16 (0.313)" 417 Round Die 5/16 None Same Day $15.20
41711 11/32 (0.344)" 417 Round Die 11/32 None Same Day $15.20
41712 3/8 (0.375)" 417 Round Die 3/8 None Same Day $15.20
41713 13/32 (0.406)" 417 Round Die 13/32 None Same Day $15.20
41714 7/16 (0.438)" 417 Round Die 7/16 None Same Day $15.20
41715 15/32 (0.469)" 417 Round Die 15/32 None Same Day $15.20
41716 1/2 (0.500)" 417 Round Die 1/2 None Same Day $15.20
41717 17/32 (0.531)" 417 Round Die 17/32 None Same Day $15.20
41718 9/16 (0.563)" 417 Round Die 9/16 None Same Day $15.20
41719 19/32 (0.594)" 417 Round Die 19/32 None Same Day $15.20
41720 5/8 (0.625)" 417 Round Die 5/8 None Same Day $15.20
41721 21/32 (0.656)" 417 Round Die 21/32 None Same Day $15.20
41722 11/16 (0.688)" 417 Round Die 11/16 None Same Day $15.20
41723 23/32 (0.719)" 417 Round Die 23/32 None Same Day $15.20
41724 3/4 (0.750)" 417 Round Die 3/4 None Same Day $15.20
41725 25/32 (0.781)" 417 Round Die 25/32 None Same Day $15.20
41726 13/16 (0.813)" 417 Round Die 13/16 None Same Day $15.20
41727 27/32 (0.844)" 417 Round Die 27/32 None Same Day $15.20
41728 7/8 (0.875)" 417 Round Die 7/8 None Same Day $15.20
41729 29/32 (0.906)" 417 Round Die 29/32 None Same Day $15.20
41730 15/16 (0.938)" 417 Round Die 15/16 None Same Day $15.20
41731 31/32 (0.969)" 417 Round Die 31/32 None Same Day $15.20
41732 1 (1.000)" 417 Round Die 1" None Same Day $15.20
41733 1-1/32 (1.031)" 417 Round Die 1-1/32 None Same Day $15.20
41734 1-1/16 (1.063)" 417 Round Die 1-1/16 None Same Day $15.20
41735 1-3/32 (1.094)" 417 Round Die 1-3/32 None Same Day $15.20
41736 1-1/8 (1.125)" 417 Round Die 1-1/8 None Same Day $15.20
41737 1-5/32 (1.156)" 417 Round Die 1-5/32 None Same Day $15.20
41738 1-3/16 (1.188)" 417 Round Die 1-3/16 None Same Day $15.20
41739 1-7/32 (1.219)" 417 Round Die 1-7/32 None Same Day $15.20
41740 1-1/4 (1.250)" 417 Round Die 1-1/4 None Same Day $15.20
41741 1-9/32 (1.281)" 417 Round Die 1-9/32 None Same Day $15.20
41742 1-5/16 (1.313)" 417 Round Die 1-5/16 None Same Day $15.20
41744 1-3/8 (1.375)" 417 Round Die 1-3/8 None Same Day $15.20
417RD 417 Round Die in Any size not shown None 24 hours $26.20
417RD Any size not shown" 417 Round Die in any size not shown (without whistle spot) none 24 hours $26.20
Part No. Size Description Locating Spot Availability Price Quantity Purchase
41790815 1/4 x 15/32 (0.250 x 0.469)" 417 Oblong Die 1/4 x 15/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41790933 9/32 x 1-1/32 (0.281 x 1.031)" 417 Oblong Die 9/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791019 5/16 x 19/32 (0.313 x 0.594)" 417 Oblong Die 5/16 x 19/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791025 5/16 x 25/32 (0.313 x 0.781)" 417 Oblong Die 5/16 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791033 5/16 x 1-1/32 (0.313 x 1.031)" 417 Oblong Die 5/16 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791117 11/32 x 17/32 (0.344 x 0.531)" 417 Oblong Die 11/32 x 17/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791125 11/32 x 25/32 (0.344 x 0.781)" 417 Oblong Die 11/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791133 11/32 x 1-1/32 (0.344 x 1.031)" 417 Oblong Die 11/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791223 3/8 x 23/32 (0.375 x 0.719)" 417 Oblong Die 3/8 x 23/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791325 13/32 x 25/32 (0.406 x 0.781)" 417 Oblong Die 13/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791333 13/32 x 1-1/32 (0.406 x 1.031)" 417 Oblong Die 13/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791341 13/32 x 1-9/32 (0.406 x 1.281)" 417 Oblong Die 13/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791433 7/16 x 1-1/32 (0.438 x 1.031)" 417 Oblong Die 7/16 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791525 15/32 x 25/32 (0.469 x 1.781)" 417 Oblong Die 15/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791529 15/32 x 29/32 (0.469 x 1.906)" 417 Oblong Die 15/32 x 29/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791533 15/32 x 1-1/32 (0.469 x 1.031)" 417 Oblong Die 15/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791535 15/32 x 1-3/32 (0.469 x 1.094)" 417 Oblong Die 15/32 x 1-3/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791541 15/32 x 1-9/32 (0.469 x 1.281)" 417 Oblong Die 15/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791725 17/32 x 25/32 (0.531 x 0.781)" 417 Oblong Die 17/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791733 17/32 x 1-1/32 (0.531 x 1.031)" 417 Oblong Die 17/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791741 17/32 x 1-9/32 (0.531 x 1.281)" 417 Oblong Die 17/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791833 9/16 x 1-1/32 (0.563 x 1.031)" 417 Oblong Die 9/16 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791925 19/32 x 25/32 (0.594 x 0.781)" 417 Oblong Die 19/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791933 19/32 x 1-1/32 (0.594 x 1.031)" 417 Oblong Die 19/32 X 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41791941 19/32 x 1-9/32 (0.594 x 1.281)" 417 Oblong Die 19/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792034 5/8 x 1-1/16 (0.625 x 1.063)" 417 Oblong Die 5/8 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792042 5/8 x 1-5/16 (0.625 x 1.313)" 417 Oblong Die 5/8 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792133 21/32 x 1-1/32 (0.656 x 1.031)" 417 Oblong Die 21/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792141 21/32 x 1-9/32 (0.656 x 1.281)" 417 Oblong Die 21/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792234 11/16 x 1-1/16 (0.688 x 1.063)" 417 Oblong Die 11/16 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792242 11/16 x 1-5/16 (0.688 x 1.312)" 417 Oblong Die 11/16 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792333 23/32 X 1-1/32 (0.719 x 1.031)" 417 Oblong Die 23/32 X 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792341 23/32 x 1-9/32 (0.719 x 1.281)" 417 Oblong Die 23/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792434 3/4 x 1-1/16 (0.750 x 1.063)" 417 Oblong Die 3/4 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792436 3/4 x 1-1/8 (0.750 x 1.125)" 417 Oblong Die 3/4 x 1-1/8 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792442 3/4 x 1-5/16 (0.750 x 1.313)" 417 Oblong Die 3/4 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792533 25/32 x 1-1/32 (0.781 x 1.031)" 417 Oblong Die 25/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792541 25/32 x 1-9/32 (0.781 x 1.281)" 417 Oblong Die 25/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792634 13/16 x 1-1/16 (0.813 x 1.063)" 417 Oblong Die 13/16 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792733 27/32 X 1-1/32 (0.844 x 1.031)" 417 Oblong Die 27/32 X 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792735 27/32 x 1-3/32 (0.844 x 1.094)" 417 Oblong Die 27/32 x 1-3/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792741 27/32 x 1-9/32 (0.844 x 1.281)" 417 Oblong Die 27/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792834 7/8 x 1-1/16 (0.875 x 1.063)" 417 Oblong Die 7/8 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792836 7/8 x 1-1/8 (0.875 x 1.125)" 417 Oblong Die 7/8 x 1-1/8 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792842 7/8 x 1-5/16 (0.875 x 1.313)" 417 Oblong Die 7/8 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41792941 29/32 x 1-9/32 (0.906 x 1.281)" 417 Oblong Die 29/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41793042 15/16 x 1-5/16 (0.938 x 1.313)" 417 Oblong Die 15/16 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
41793141 31/32 x 1-9/32 (0.969 x 1.281)" 417 Oblong Die 31/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $62.80
41793242 1 x 1-5/16 (1.000 x 1.313)" 417 Oblong Die 1" x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $62.80
417OB 417 Oblong Die in Any size not shown 2 Whistles 24 hours $79.30
Part No. Size Description Locating Spot Availability Price Quantity Purchase
417809 9/32 (0.281)" 417 Square Die 9/32 1 Whistle Spot 1 Whistle Same Day $62.80
417811 11/32 (0.344)" 417 Square Die 11/32 1 Whistle Spot 1 Whistle Same Day $62.80
417813 13/32 (0.406)" 417 Square Die 13/32 1 Whistle Spot 1 Whistle Same Day $62.80
417814 7/16 (0.438)" 417 Square Die 7/16 1 Whistle Spot 1 Whistle Same Day $62.80
417815 15/32 (0.469)" 417 Square Die 15/32 1 Whistle Spot 1 Whistle Same Day $62.80
417817 17/32 (0.531)" 417 Square Die 17/32 1 Whistle Spot 1 Whistle Same Day $62.80
417818 9/16 (0.563)" 417 Square Die 9/16 1 Whistle Spot 1 Whistle Same Day $62.80
417819 19/32 (0.594)" 417 Square Die 19/32 1 Whistle Spot 1 Whistle Same Day $62.80
417820 5/8 (0.625)" 417 Square Die 5/8 1 Whistle Spot 1 Whistle Same Day $62.80
417821 21/32 (0.656)" 417 Square Die 21/32 1 Whistle Spot 1 Whistle Same Day $62.80
417822 11/16 (0.688)" 417 Square Die 11/16 1 Whistle Spot 1 Whistle Same Day $62.80
417823 23/32 (0.719)" 417 Square Die 23/32 1 Whistle Spot 1 Whistle Same Day $62.80
417825 25/32 (0.781)" 417 Square Die 25/32 1 Whistle Spot 1 Whistle Same Day $62.80
417826 13/16 (0.813)" 417 Square Die 13/16 1 Whistle Spot 1 Whistle Same Day $62.80
417827 27/32 (0.844)" 417 Square Die 27/32 1 Whistle Spot 1 Whistle Same Day $62.80
417829 29/32 (.906)" 417 Square Die 29/32 1 Whistle Spot 1 Whistle Same Day $62.80
417SQ 417 Square Die in Any size not shown 1 Whistle 24 hours $79.30
Part No. Size Description Locating Spot Availability Price Quantity Purchase
417HX 417 Hex Die in Any size not shown 1 Whistle 24 hours $79.30
Part No. Size Description Locating Spot Availability Price Quantity Purchase
417RC 417 Rectangle Die in Any size not shown 2 Whistles 24 hours $79.30

Parts & Accessories

Angle Shear Blades

Image Part No. Description Availability Price Quantity Purchase

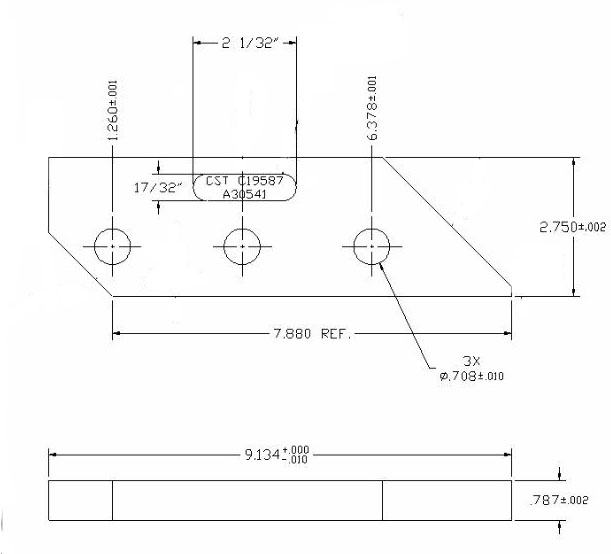

C19587 Lower Angle Blade Bottom [A30541] 15 days $195.00

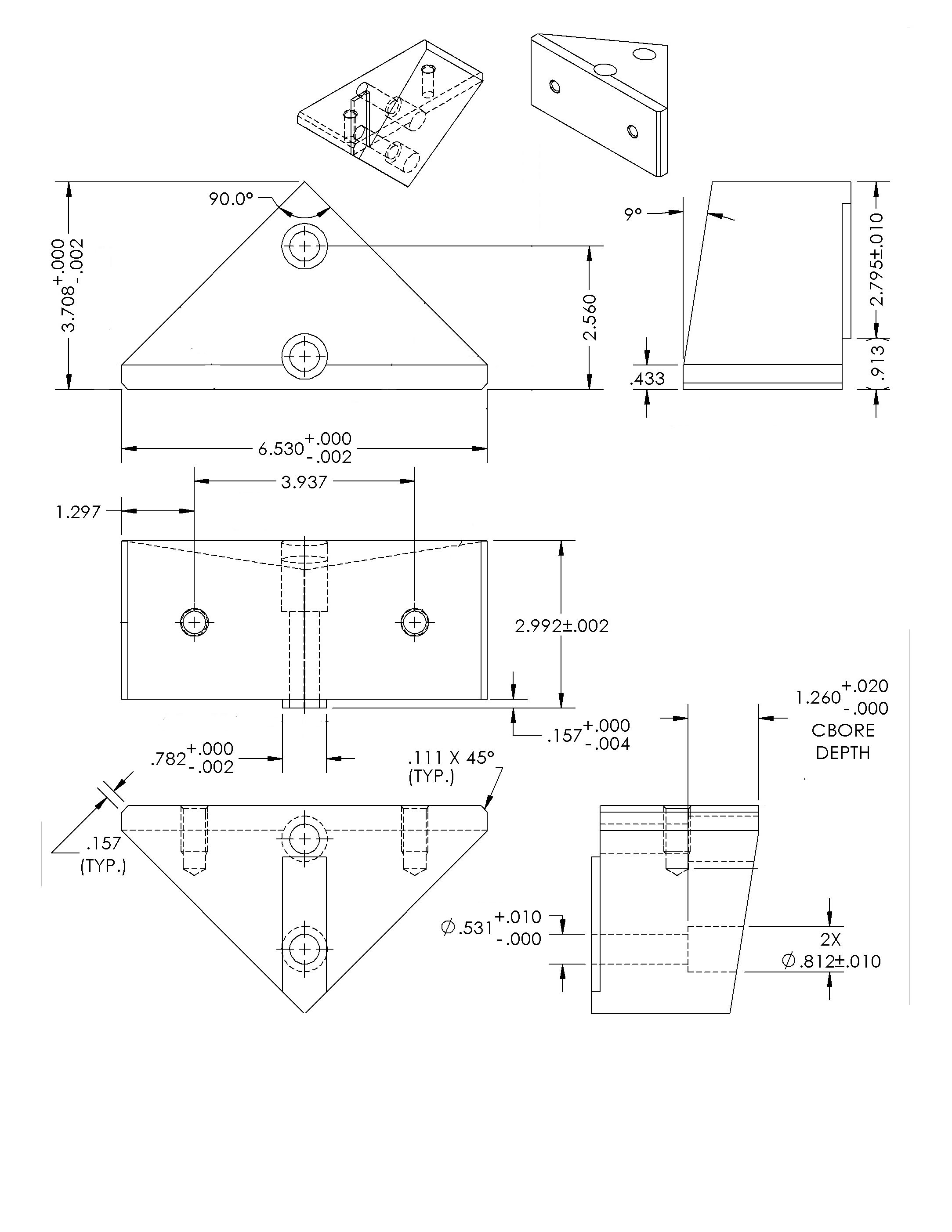

C22053 Angle Notcher Top Blade [A30468] 15 days $385.00

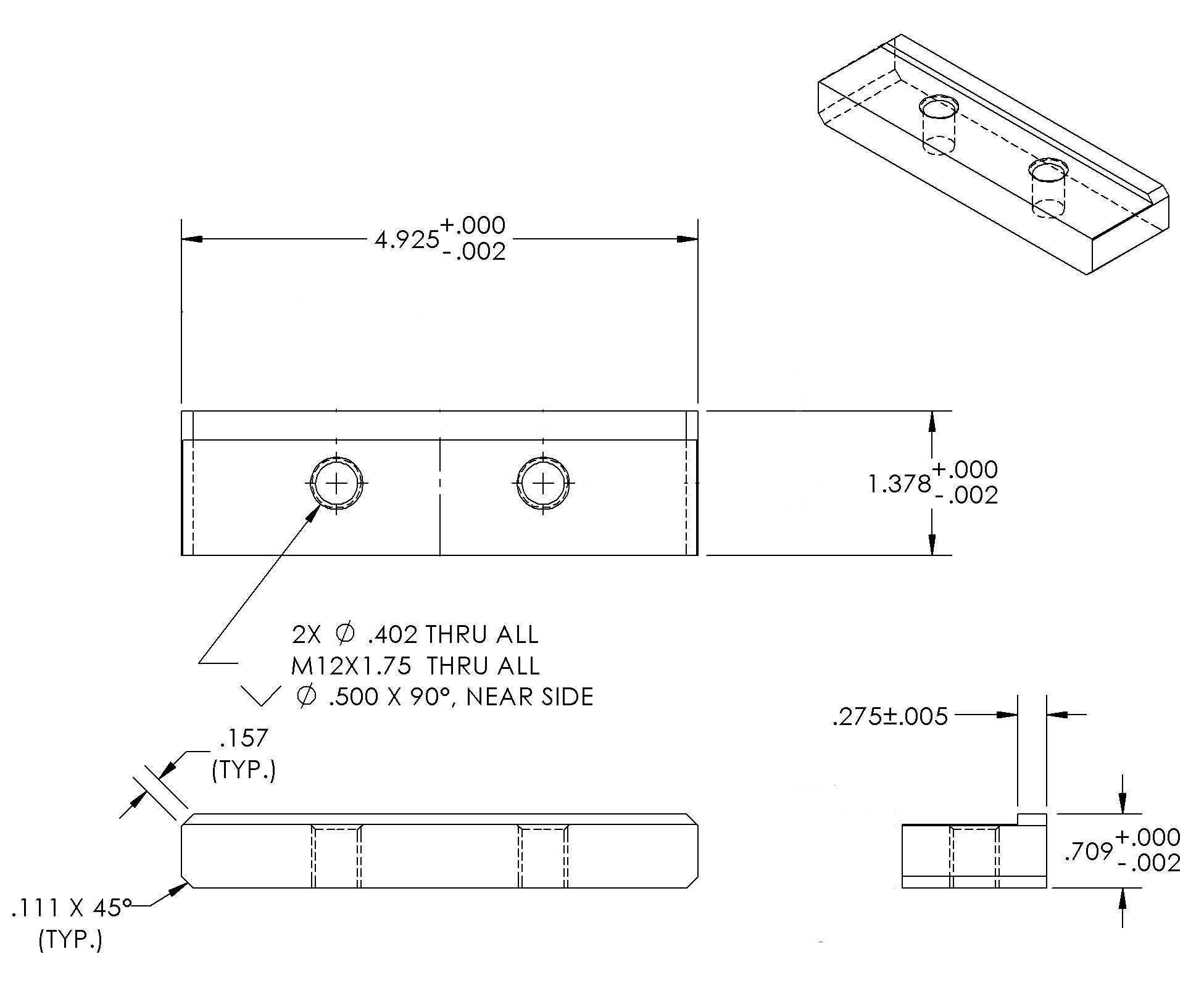

C22054 Angle Notcher Bottom Blade (2 Req. Price each) [A30467E] 15 days $82.50

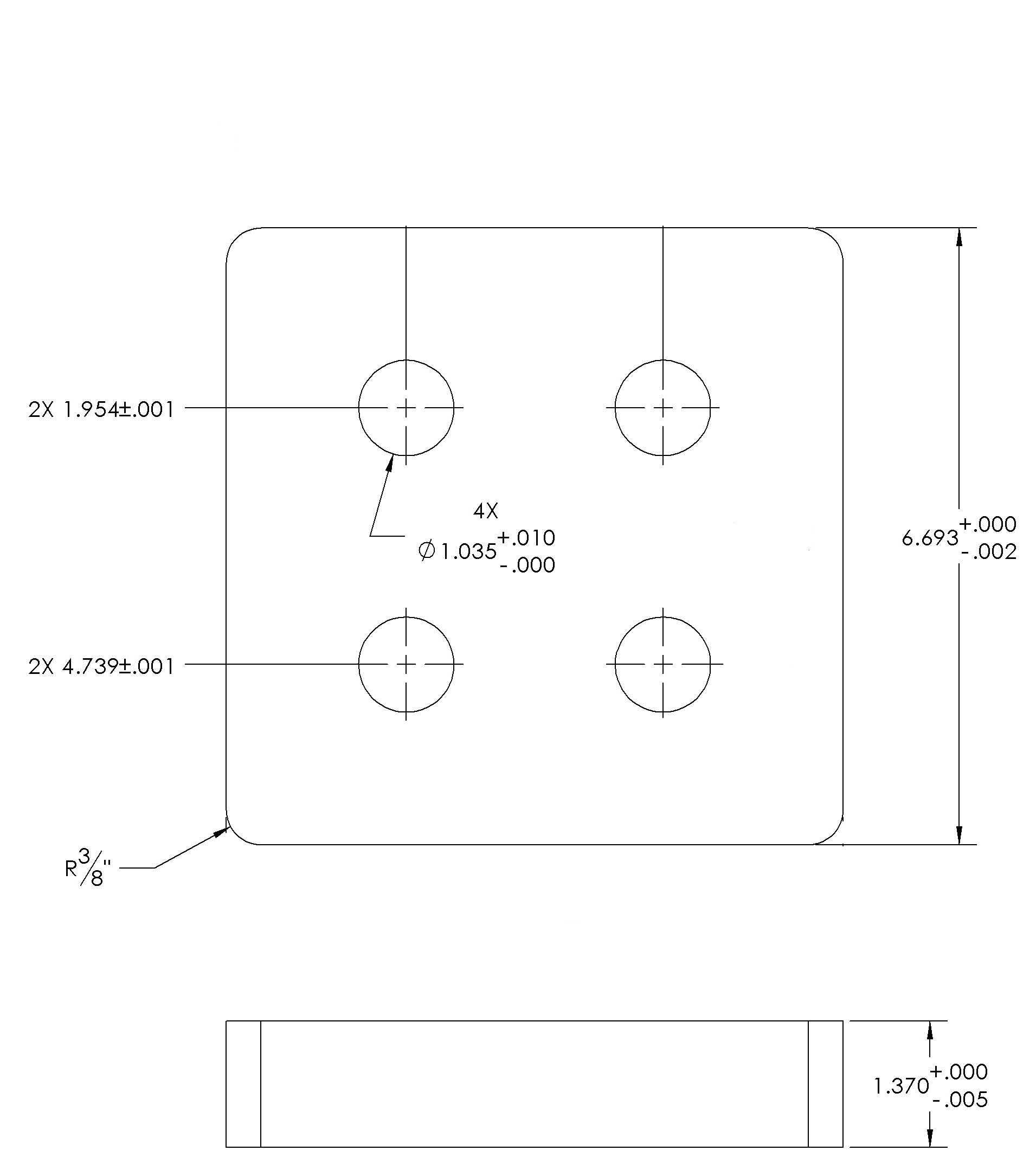

C21273 Upper Blade (170MM SQ X 35MM) [A30540] 15 days $495.00

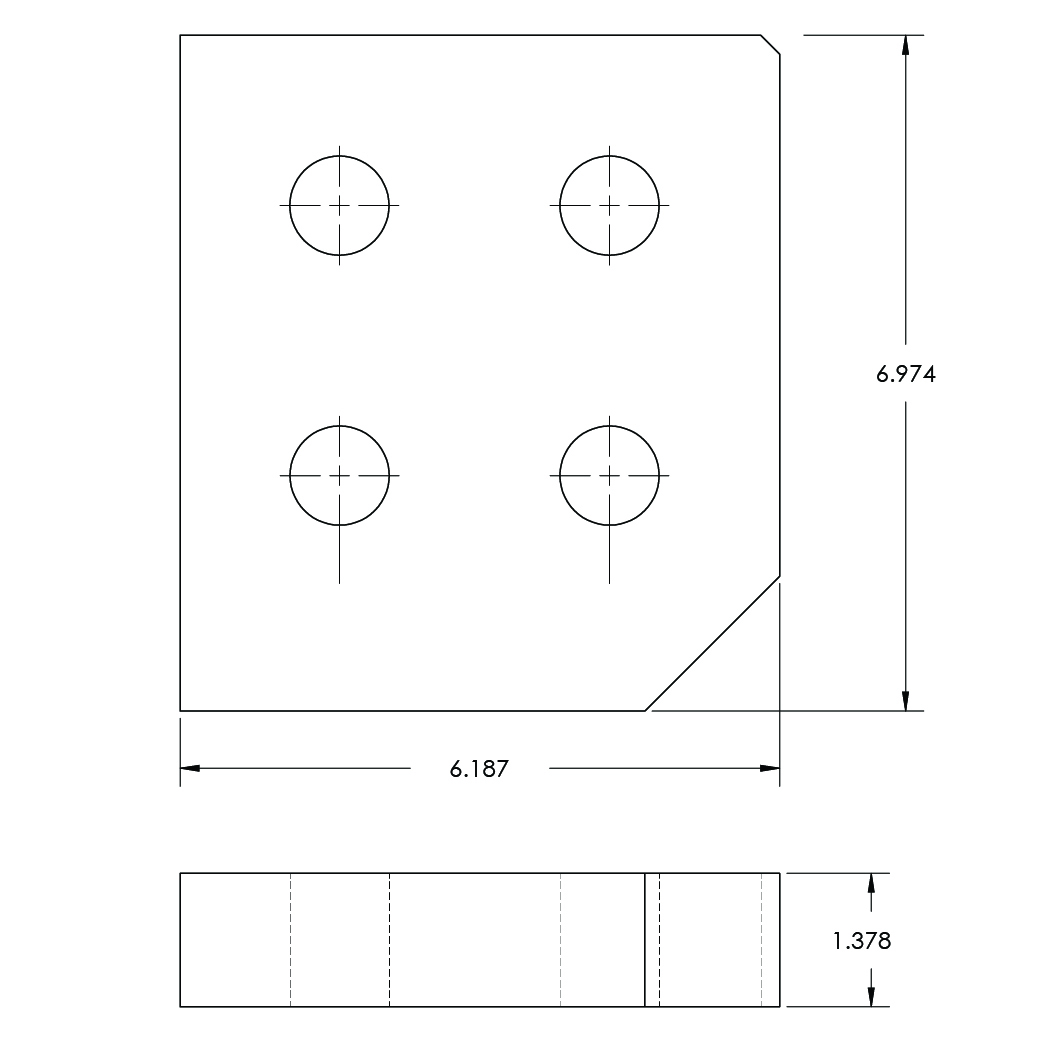

C24318 Upper Flat Bar Blade [A30417] 15 days $495.00

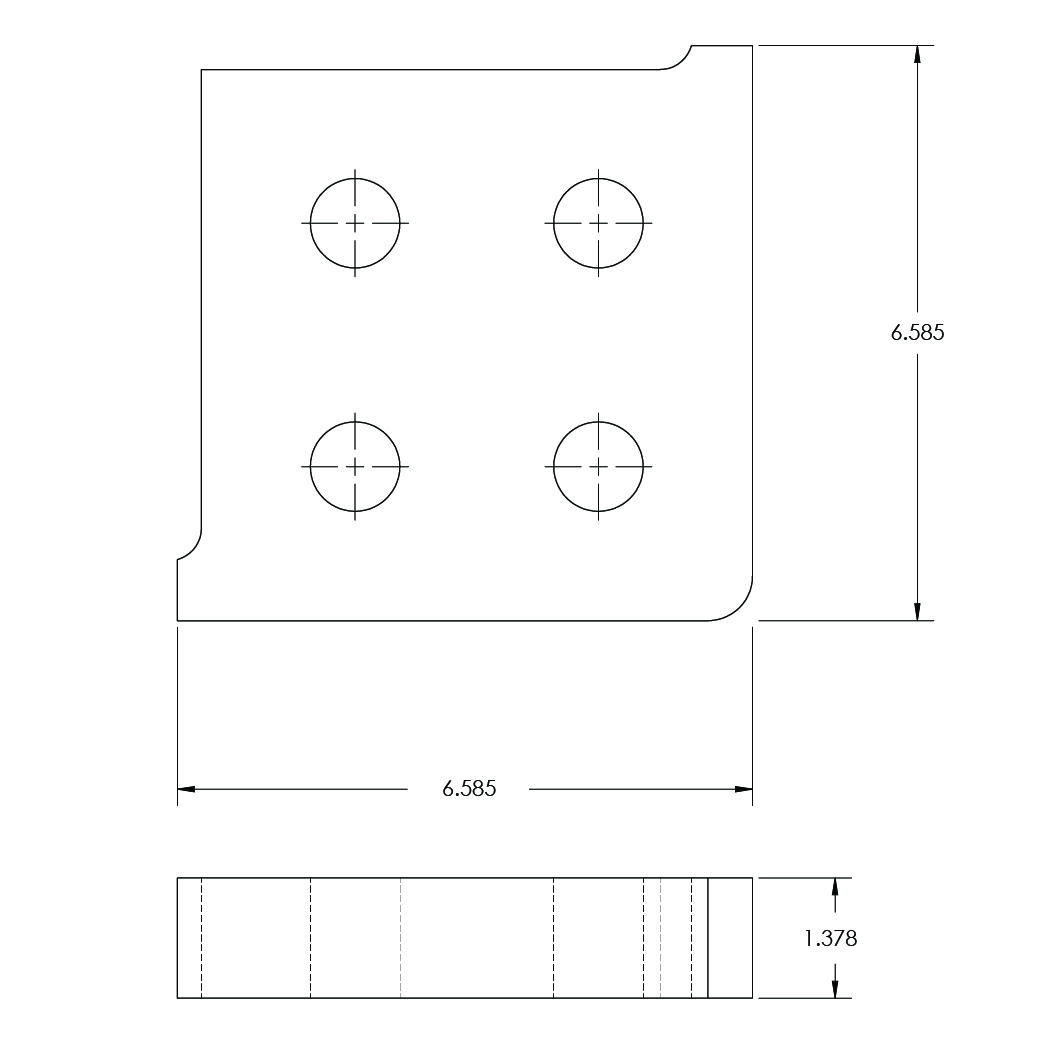

C24319 Upper Angle Blade [A30545] 15 days $495.00

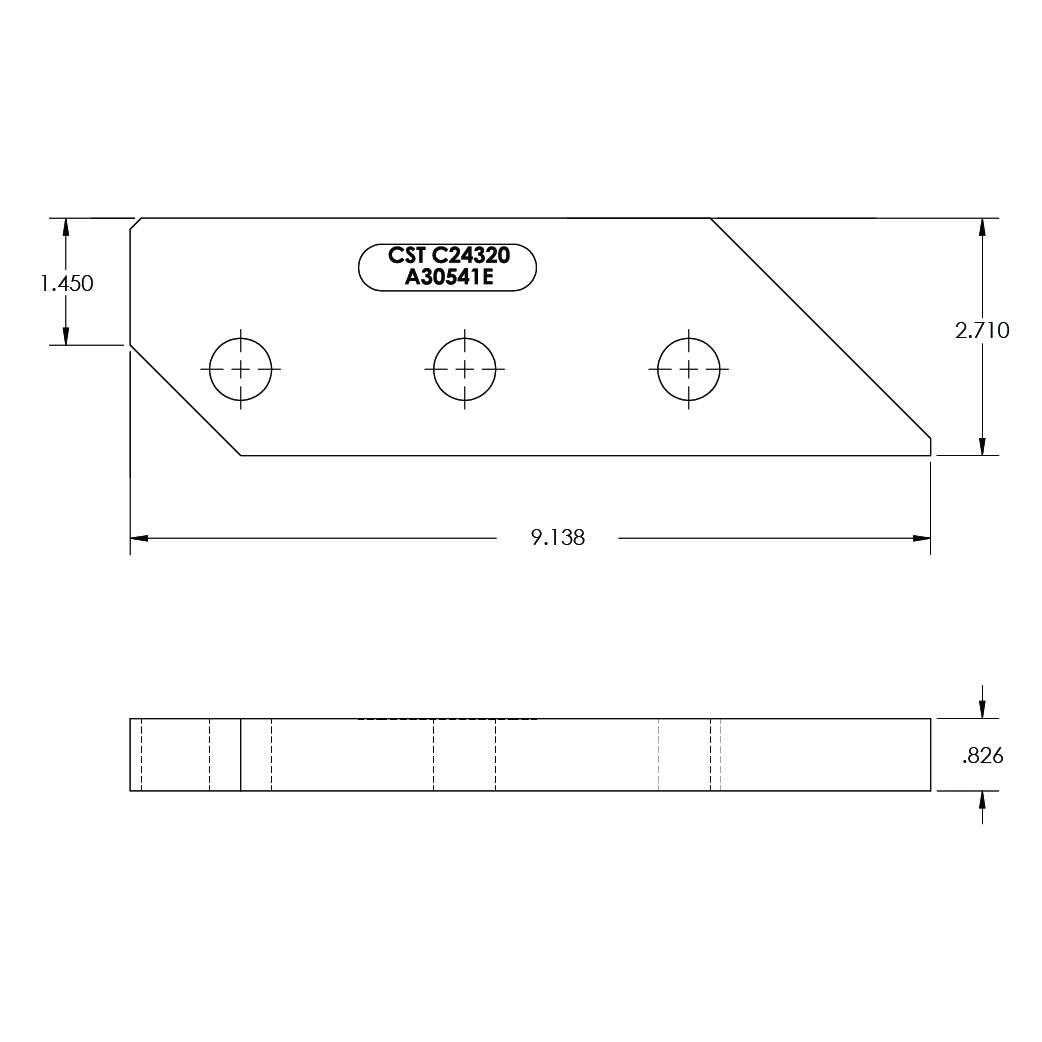

C24320 Lower Angle Blade Bottom [A30541E] 15 days $195.00
