Evolution

Evolution EVOMAG28

Parts & Accessories

Misc Accessories and Parts

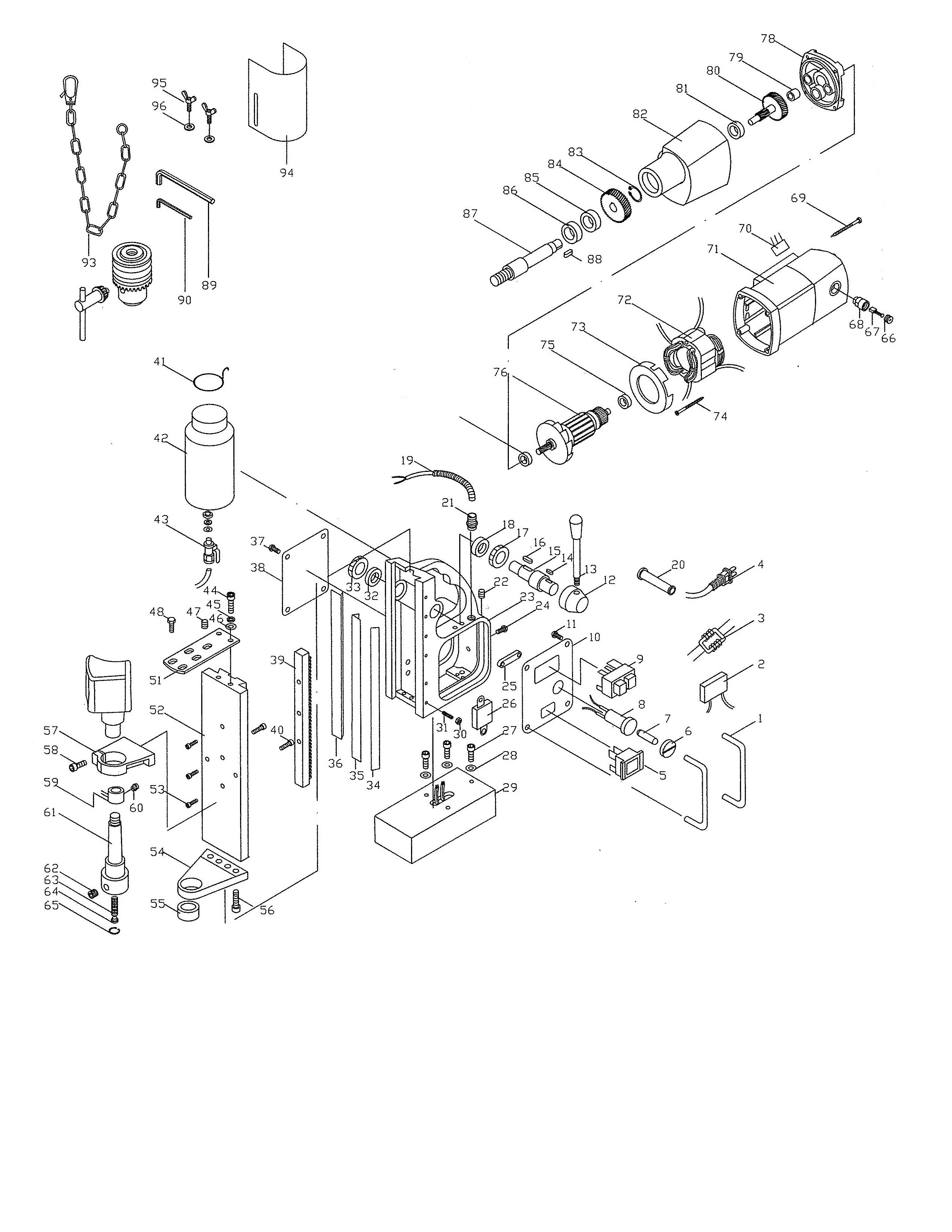

Image Part No. Description Availability Price Quantity Purchase
SPME3501 Arbor Cutter Screw Same day $1.12
B2S1 Bora/Mag28 Switch plate bar (2) Same day $3.09
B2S2 Bora/Mag28 Capacitor Same day $2.89
B2S3 Bora/Mag28 Inductor Same day $1.35
B2S4C Evolution BORA/Mag28 Power Cord 110v US Same day $17.50
B2S5 Magnet Switch Same day $2.49
B2S6 Fuse Holder Cap Same day $1.13
B2S7 Fuse Same day $3.09
B2S8 Fuse Holder Same day $4.89
B2S9B Motor Switch Same day $28.99
B2S10 Switch Plate Same day $6.19
B2S11 Screw, M5 X 10mm (4) Same day $1.35
B2S12 Crank Same day $9.09
B2S13 Crank Handle (3) Same day $3.97
B2S14 Woodruff Key; 5mm X 12mm Same day $1.35
B2S15 Crank Spindle Same day $7.89
B2S16 Woodruff Key; 5mm X 15mm Same day $1.35
B2S17 Gear Same day $4.29
B2S18 Bearing; 2015 (Included in Item 23) Same day $3.09
B2S19 Cord Sheath Same day $1.89
B2S20 Cable Protector Same day $2.49
B2S21 Conduit Gland Same day $4.89
B2S22 Cable Galnd Same day $1.35
B2S23 Main Drill Frame (Includes Items 18 & 32) Same day $180.09
B2S24 Screw, M5 X 8mm Same day $1.35
B2S25 Cable Clamp Same day $6.19
B2S26 Main Rectifier Same day $30.49
B2S27 Cap Screw, M6 X 20mm (3) Same day $1.35
B2S28 Washer, 6mm (3) Same day $1.35
B2S29 Magnet Same day $180.09
B2S30 Nut, M5 (6) Same day $1.35
B2S31 Grub Screw, M5 X 20mm (6) Same day $1.35
B2S32 Bearing, 1615 (Included in Item 23) Same day $3.09
B2S33 Round Nut, 16mm X 1.5 Pitch Same day $1.89
B2S34 Gib Strip Tensioner Same day $3.69
B2S35 Gib Strip, Pair Same day $4.89
B2S37 Screw, M5 X 10mm (4) Same day $1.35
B2S38 Rear Cover Plate Same day $6.19
B2S39 Gear Rack Same day $21.69
B2S40 Cap Screw, M6 X 20mm (2) Same day $1.35
B2S41 Coolant Tank Hanger Same day $1.35
B2S42 Coolant Tank Same day $10.95
B2S43 Coolant Tap Same day $10.73
B2S44 Cap Screw, M6 X 20mm (2) Same day $1.35
B2S45 Lock Washer, 6mm (2) Same day $1.35
B2S46 Washer, 6mm Same day $1.35
B2S47 Conduit Gland Same day $3.09
B2S48 Self Tap Screw, 6mm (4) Same day $1.35
B2S51 Motor Support Plate Same day $6.69
B2S52 Slide Plate Same day $51.69
B2S53 Cap Screw, M6 X 20mm (3) Same day $1.35
B2S54 Arbor Support Bracket including Bearing 2520 Same day $27.69
B2S56 Cap Screw, M6 X 20mm (4) Same day $1.35
B2S57 Motor Mounting Bracket Same day $27.69
B2S58 Cap Screw, M6 X 30mm Same day $1.35
B2S59 Coolant Inlet Body Same day $10.89
B2S60 Quick Coupler 1/4" Same day $2.00
B2S61ASMBL. Arbor Assembly (Includes Items: 61, 62, 63, 64, 65) Same day $47.51
B2S61ASMBL. Arbor Shaft (See Part Number B2S61ASMBL.) Same day $0.00
B2S61ASMBL. Grub Screw, M8 X 10mm (See Part Number B2S61ASMBL.) Same day $0.00
B2S61ASMBL. Spring (See Part Number B2S61ASMBL.) Same day $0.00
B2S61ASMBL. Coolant Seal (See Part Number B2S61ASMBL.) Same day $0.00
B2S61ASMBL. Circlip (See Part Number B2S61ASMBL.) Same day $0.00
B2S62A Arbor Cutter Set Screw M10x10 Same day $1.13
B2S66 Brush Cap (2) Same day $1.13
SPMC18069 Carbon Brush (Set of 2) Same day $14.84
B2S68 Brush Holder (2) Same day $3.99
B2S69 Cap Screw, M6 X 40mm Same day $1.13
B2S71 Motor Housing Same day $34.89
B2S72B Field Coil, 115V Same day $53.49
B2S73 Fan Shroud Same day $3.69
B2S74 Screw, M5 X 65mm (2) Same day $1.13
B2S75 Brearing, 608 Same day $5.49
B2S76 Armature, 115V Same day $81.00
SPME3520 Bearing, 609 Same day $14.22
B2S78 Inter Gear Plate Same day $28.89
B2S79 Bearing, 627 Same day $3.69
B2S80 Pinion Gear Same day $15.69
B2S81 Bearing, 627 Same day $4.89
B2S82 Gear Box Housing Same day $41.49
B2S83 Circlip Same day $1.13
B2S84 Final Drive Gear Same day $11.99
B2S85 Bearing, 6003 Same day $5.49
B2S86 Bearing, 6004 Same day $5.49
B2S87 Main Drive Spindle Same day $21.99
B2S88 Woodruff Key, 4mm X 15mm Same day $1.13
B2S89 Allen Key, 5mm Same day $1.13
B2S90 Allen Key, 4mm Same day $1.13
B2S93 Chain Same day $4.89
B2S94 Guard Same day $39.99
B2S95 Wing Screw (2) Same day $1.13
