buffalo

buffalo 1-1/2

Standard Punches & Dies

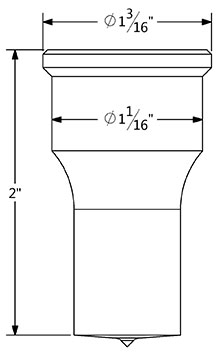

P66

Specifications

  • Head Diameter1-3/16"
  • Body Diameter1-1/16"
  • Overall Length2"

Equivalent Part Numbers

  • CPDF-664
  • APC6640

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
66404 1/8 (0.125)" None P66 Round Punch 1/8 Same Day $14.60
66406 3/16 (0.188)" None P66 Round Punch 3/16 Same Day $14.60
66407 7/32 (0.219)" None P66 Round Punch 7/32 Same Day $14.60
66408 1/4 (0.250)" None P66 Round Punch 1/4 Same Day $14.60
66409 9/32 (0.281)" None P66 Round Punch 9/32 Same Day $14.60
66410 5/16 (0.313)" None P66 Round Punch 5/16 Same Day $14.60
66412 3/8 (0.375)" None P66 Round Punch 3/8 Same Day $14.60
66413 13/32 (0.406)" None P66 Round Punch 13/32 Same Day $14.60
66414 7/16 (0.438)" None P66 Round Punch 7/16 Same Day $14.60
66416 1/2 (0.500)" None P66 Round Punch 1/2 Same Day $14.60
66418 9/16 (0.563)" None P66 Round Punch 9/16 Same Day $14.60
66420 5/8 (0.625)" None P66 Round Punch 5/8 Same Day $14.60
66421 21/32 (0.656)" None P66 Round Punch 21/32 Same Day $14.60
66422 11/16 (0.688)" None P66 Round Punch 11/16 Same Day $14.60
66423 23/32 (0.719)" None P66 Round Punch 23/32 Same Day $14.60
66424 3/4 (0.750)" None P66 Round Punch 3/4 Same Day $14.60
66425 25/32 (0.781)" None P66 Round Punch 25/32 Same Day $14.60
66426 13/16 (0.813)" None P66 Round Punch 13/16 Same Day $14.60
66427 27/32 (0.844)" None P66 Round Punch 27/32 Same Day $14.60
66428 7/8 (0.875)" None P66 Round Punch 7/8 Same Day $14.60
66429 29/32 (0.906)" None P66 Round Punch 29/32 Same Day $14.60
66430 15/16 (0.938)" None P66 Round Punch 15/16 Same Day $14.60
66432 1" (1.000)" None P66 Round Punch 1" Same Day $14.60
66434 1-1/16 (1.063)" None P66 Round Punch 1-1/16 Same Day $14.60
66435 1-3/32 (1.094)" None P66 Round Punch 1-3/32 Same Day $14.60
66436 1-1/8 (1.125)" None P66 Round Punch 1-1/8 Same Day $14.60
P66RD N/A P66 Round Punch Any size not shown 24 hours $25.60
Part No. Size Keyway Description Availability Price Quantity Purchase
66491024 5/16 x 3/4 (0.313 x 0.750)" None P66 Oblong Punch 5/16 x 3/4 Same Day $50.50
66491032 5/16 x 1 (0.313 x 1.000)" None P66 Oblong Punch 5/16 x 1" Same Day $50.50
66491224 3/8 x 3/4 (0.375 x 0.750)" None P66 Oblong Punch 3/8 x 3/4 Same Day $50.50
66491332 13/32 x 1 (0.406 x 1.000)" None P66 Oblong Punch 13/32 x 1" Same Day $50.50
66491424 7/16 x 3/4 (0.438 x 0.750)" None P66 Oblong Punch 7/16 x 3/4 Same Day $50.50
66491732 17/32 x 1 (0.531 x 1.000)" None P66 Oblong Punch 17/32 x 1" Same Day $50.50
66491824 9/16 x 3/4 (0.563 x 0.750)" None P66 Oblong Punch 9/16 x 3/4 Same Day $50.50
66491832 9/16 x 1 (0.563 x 1.000)" None P66 Oblong Punch 9/16 x 1" Same Day $50.50
P66OB P66 Oblong Punch Any size not shown 24 hours $67.00
Part No. Size Keyway Description Availability Price Quantity Purchase
664812 3/8 (0.375)" 1/4 x 1/8 P66 Square Punch 3/8 With 1/4 x 1/8 Keyway Same Day $50.50
664814 7/16 (0.438)" 1/4 x 1/8 P66 Square Punch 7/16 With 1/4 x 1/8 Keyway Same Day $50.50
664817 17/32 (0.531)" 1/4 x 1/8 P66 Square Punch 17/32 With 1/4 x 1/8 Keyway Same Day $50.50
664818 9/16 (0.563)" 1/4 x 1/8 P66 Square Punch 9/16 With 1/4 x 1/8 Keyway Same Day $50.50
664820 5/8 (0.625)" 1/4 x 1/8 P66 Square Punch 5/8 With 1/4 x 1/8 Keyway Same Day $50.50
664825 25/32 (0.781)" 1/4 x 1/8 P66 Square Punch 25/32 With 1/4 x 1/8 Keyway Same Day $50.50
P66SQ P66 Square Punch Any size not shown 24 hours $67.00
Part No. Size Keyway Description Availability Price Quantity Purchase
P66HX P66 Hex Punch Any size not shown 24 hours $67.00
Part No. Size Keyway Description Availability Price Quantity Purchase
P66RC P66 Rectangle Punch Any size not shown 24 hours $67.00

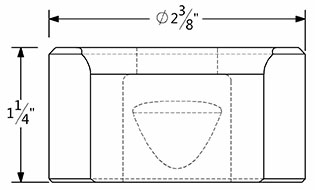

D66

Specifications

  • Outside Diameter2-3/8"
  • Height1-1/4"

Equivalent Part Numbers

  • CPDF-202
  • APC6650
  • PWBA

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
D66RD D66 Round Die in Any size not shown None 24 hours $37.00
Part No. Size Description Locating Spot Availability Price Quantity Purchase
D66OB D66 Oblong Die in Any size not shown None 24 hours $72.95
Part No. Size Description Locating Spot Availability Price Quantity Purchase
D66SQ D66 Square Die in Any size not shown None 24 hours $72.95
Part No. Size Description Locating Spot Availability Price Quantity Purchase
D66HX D66 Hex Die in Any size not shown None 24 hours $72.95
Part No. Size Description Locating Spot Availability Price Quantity Purchase
D66RC D66 Rectangle Die in Any size not shown None 24 hours $72.95

Parts & Accessories

Misc Accessories and Parts

Image Part No. Description Availability Price Quantity Purchase

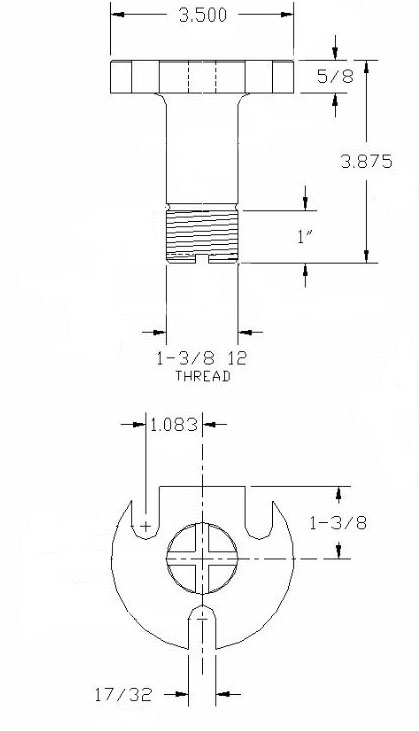

S90 Stem (Pre 1963) Call $362.80

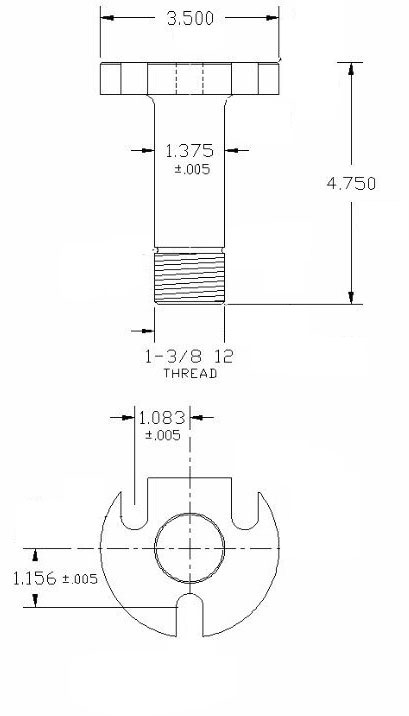

S4T Stem (Post 1963) Call $306.35

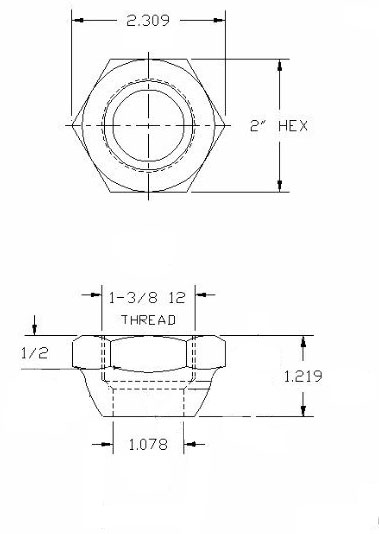

C7B Coupling Nut Call $138.55
C17901 Special 'D' Barcutter Knife 15 days $1,540.00
C17900 Special 'C' Barcutter Knife 15 days $1,065.90

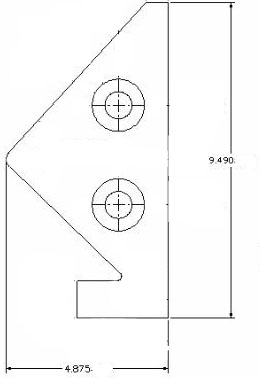

C17899 Special 'A' Barcutter Knife 15 days $561.00

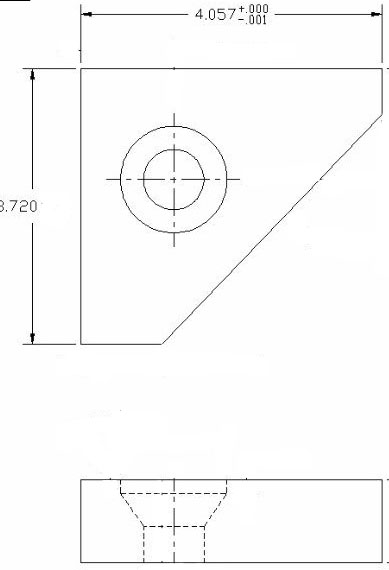

2K5A Barcutter Knife 'A' 15 days $181.60
2K4D Barcutter Knife 'D' (Pre 1963 only) 15 days $1,639.10

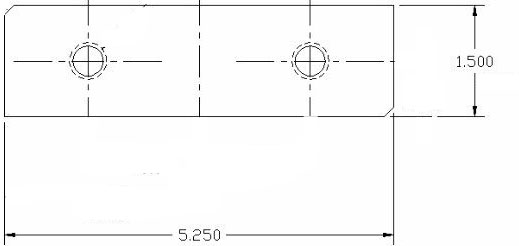

2K4E Barcutter Knife 'E' 15 days $189.85

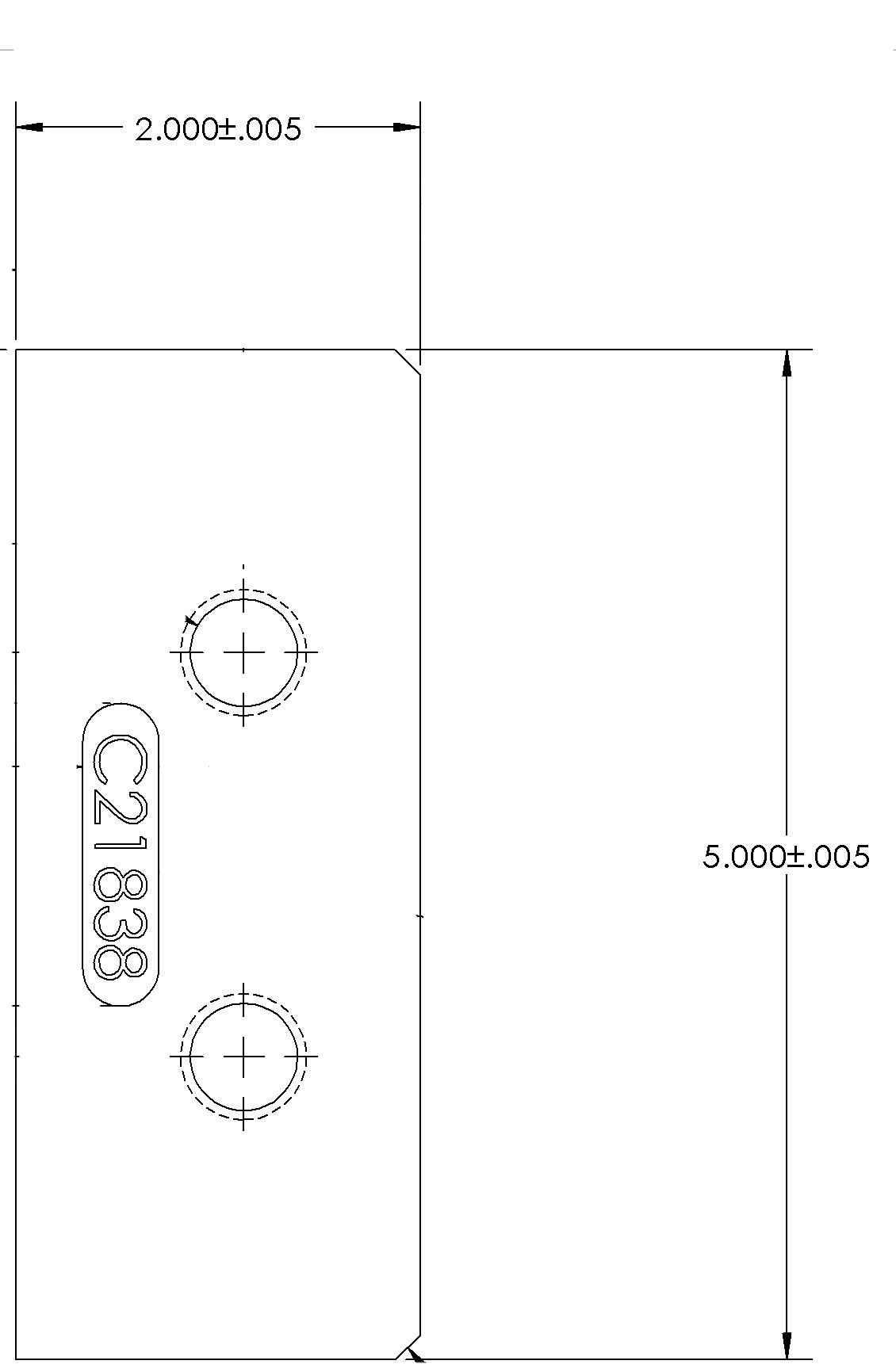

C21838 2K4E Modified Bar Cutter Knife 15 days Call for Quote

Flat Shear Blades

Image Part No. Description Availability Price Quantity Purchase

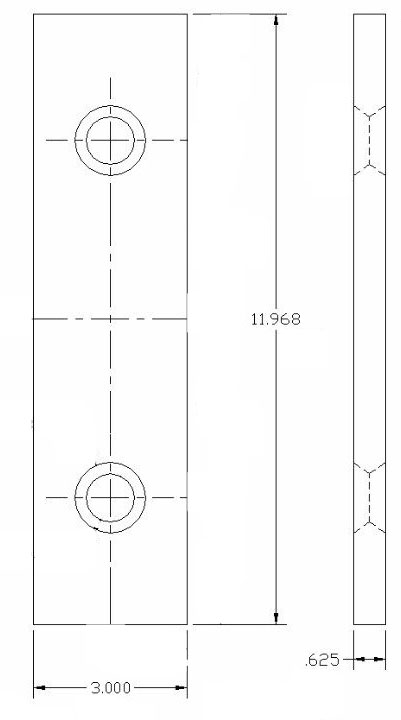

2SB3 Plain Blade Call $255.80

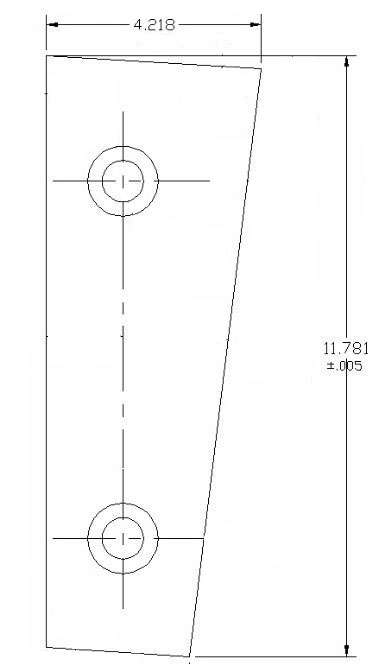

2SB9 Special Upper Blade (Pre 1963) 15 days $372.45

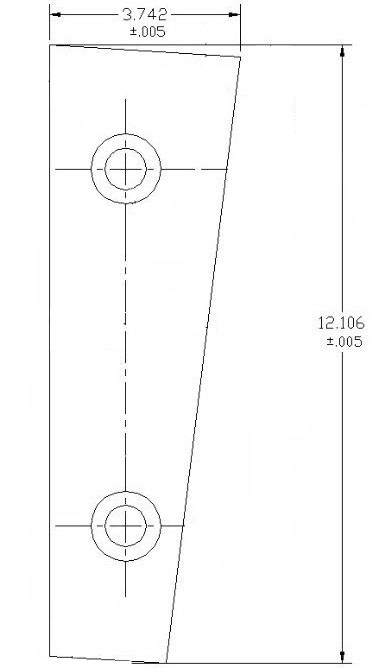

2SB4 Special Upper Blade (After 1963) 15 days $372.45

Coper Notcher Shear Blades

Image Part No. Description Availability Price Quantity Purchase

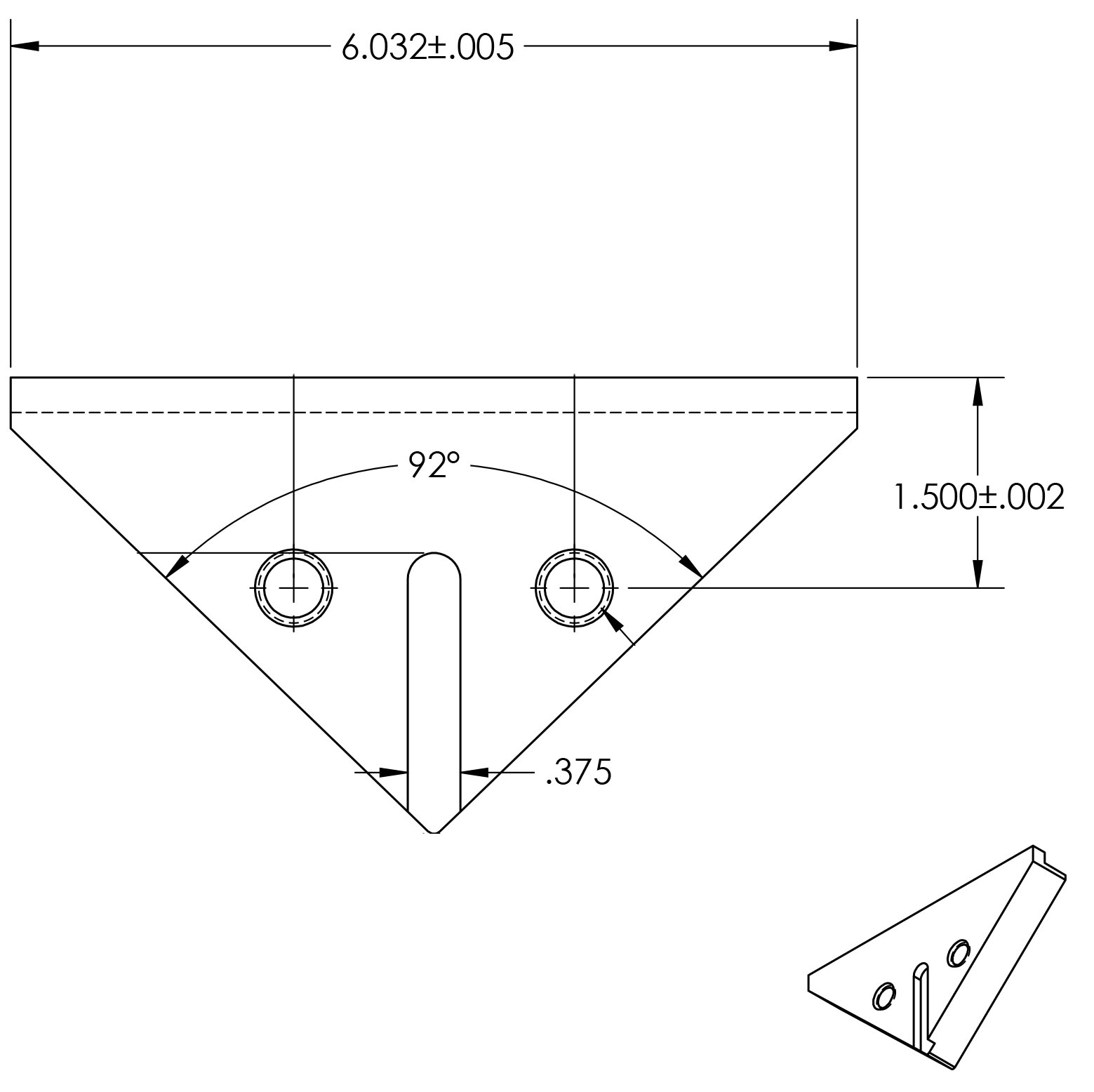

1-2NP1 Notcher Punch Call $330.00

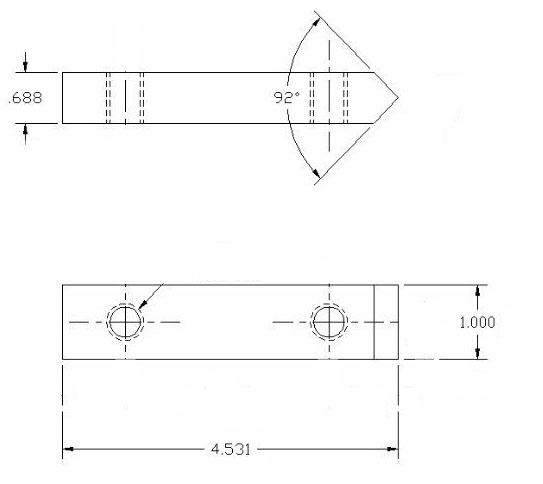

1-2ND0 Notcher Die (2 req) Call $140.80

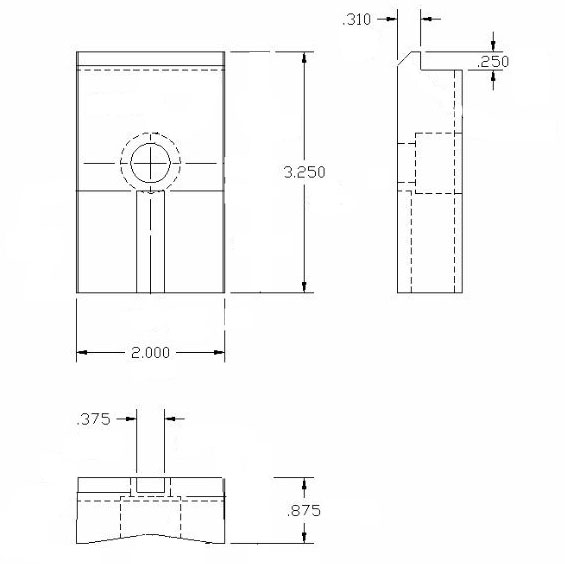

1-2CP3 Coper Punch (Pre 1963) Call $309.45

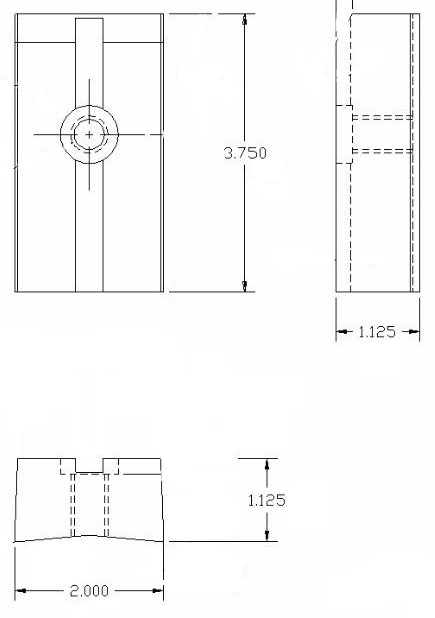

1-2CP4 Coper Punch (Post 1963) Call $341.30

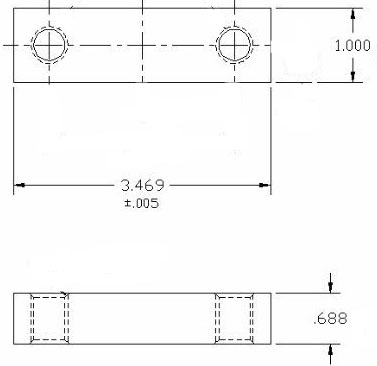

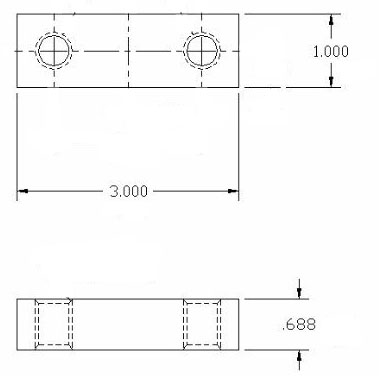

1-2CDB Coper Die (2 req. Pre 1963) Call $90.15
1-2CDI Coper Die (2 req. Post 1963) Call $90.15

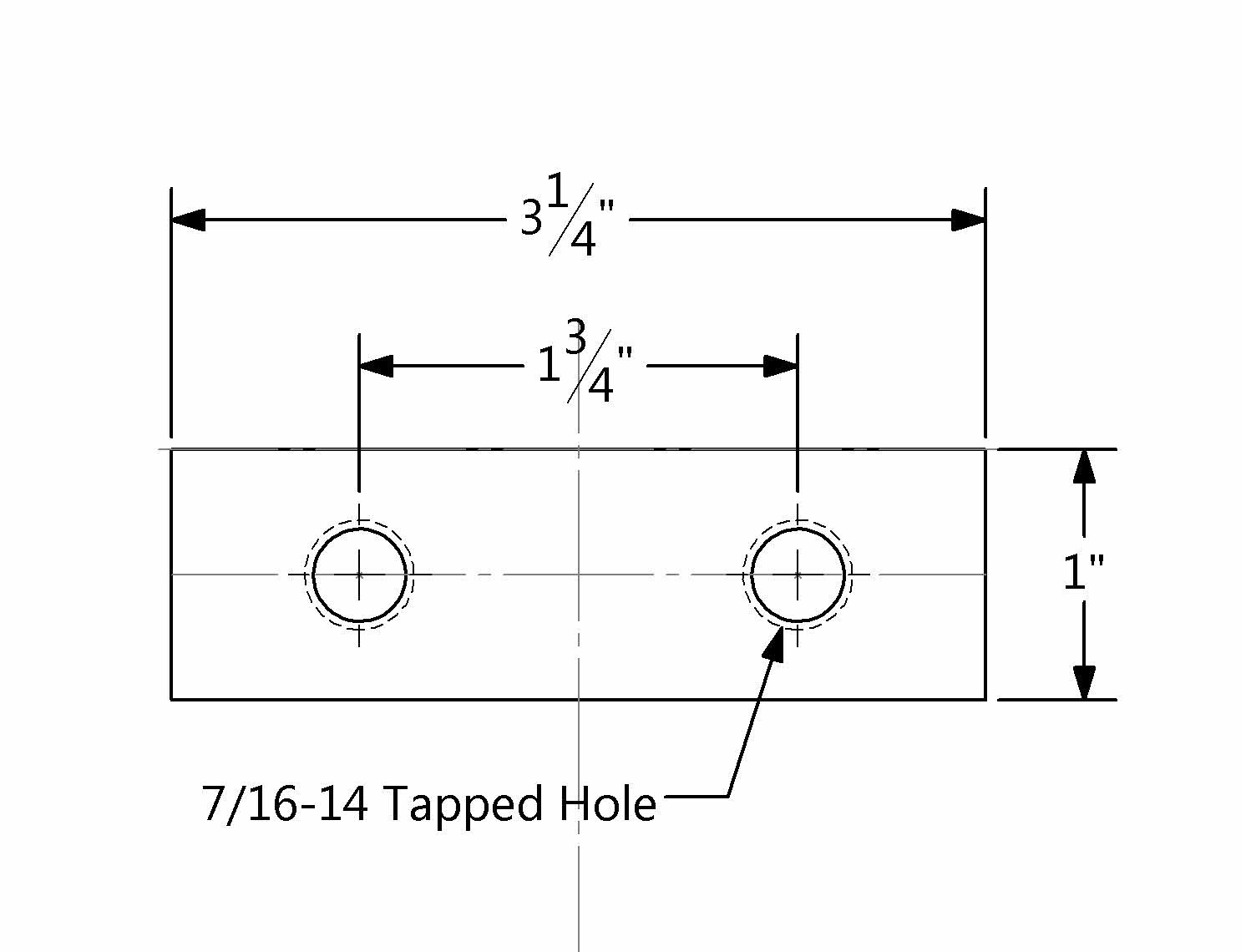

1-2CD3 Coper Die (3 req. Post 1963) Call $90.15
