Buffalo

Buffalo 0

Standard Punches & Dies

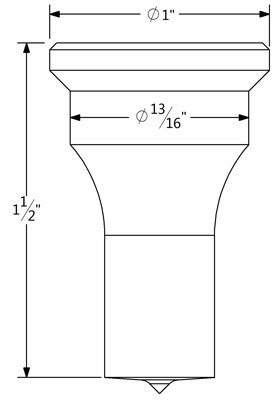

P36

Specifications

  • Head Diameter1"
  • Body Diameter13/16"
  • Overall Length1-1/2"

Equivalent Part Numbers

  • CPDF-9
  • APC3620
  • PWFF

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
P36RD None P36 Round Punch Any size not shown 24 hours $21.65
Part No. Size Keyway Description Availability Price Quantity Purchase
P36OB P36 Oblong Punch Any size not shown 24 hours $57.20
Part No. Size Keyway Description Availability Price Quantity Purchase
P36SQ P36 Square Punch Any size not shown 24 hours $57.20
Part No. Size Keyway Description Availability Price Quantity Purchase
P36HX P36 Hex Punch Any size not shown 24 hours $57.20
Part No. Size Keyway Description Availability Price Quantity Purchase
P36RC P36 Rectangle Punch Any size not shown 24 hours $57.20

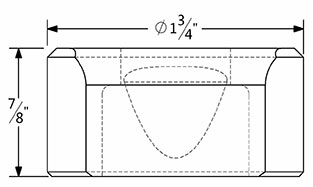

D85

Specifications

  • Outside Diameter1-3/4"
  • Height7/8"

Equivalent Part Numbers

  • CPDF-200
  • APC8530
  • PWKJ

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
D85RD D85 Round Die in Any size not shown None 24 hours $25.80
Part No. Size Description Locating Spot Availability Price Quantity Purchase
D85OB D85 Oblong Die in Any size not shown None 24 hours $66.20
Part No. Size Description Locating Spot Availability Price Quantity Purchase
D85SQ D85 Square Die in Any size not shown None 24 hours $66.20
Part No. Size Description Locating Spot Availability Price Quantity Purchase
D85HX D85 Hex Die in Any size not shown None 24 hours $66.20
Part No. Size Description Locating Spot Availability Price Quantity Purchase
D85RC D85 Rectangle Die in Any size not shown None 24 hours $66.20

Parts & Accessories

Misc Accessories and Parts

Image Part No. Description Availability Price Quantity Purchase

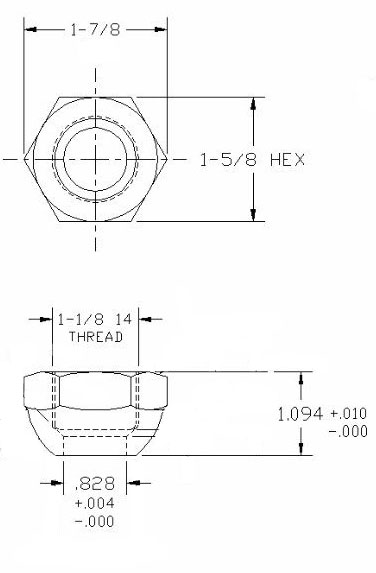

C7A Coupling Nut Call $139.25

Flat Shear Blades

Image Part No. Description Availability Price Quantity Purchase

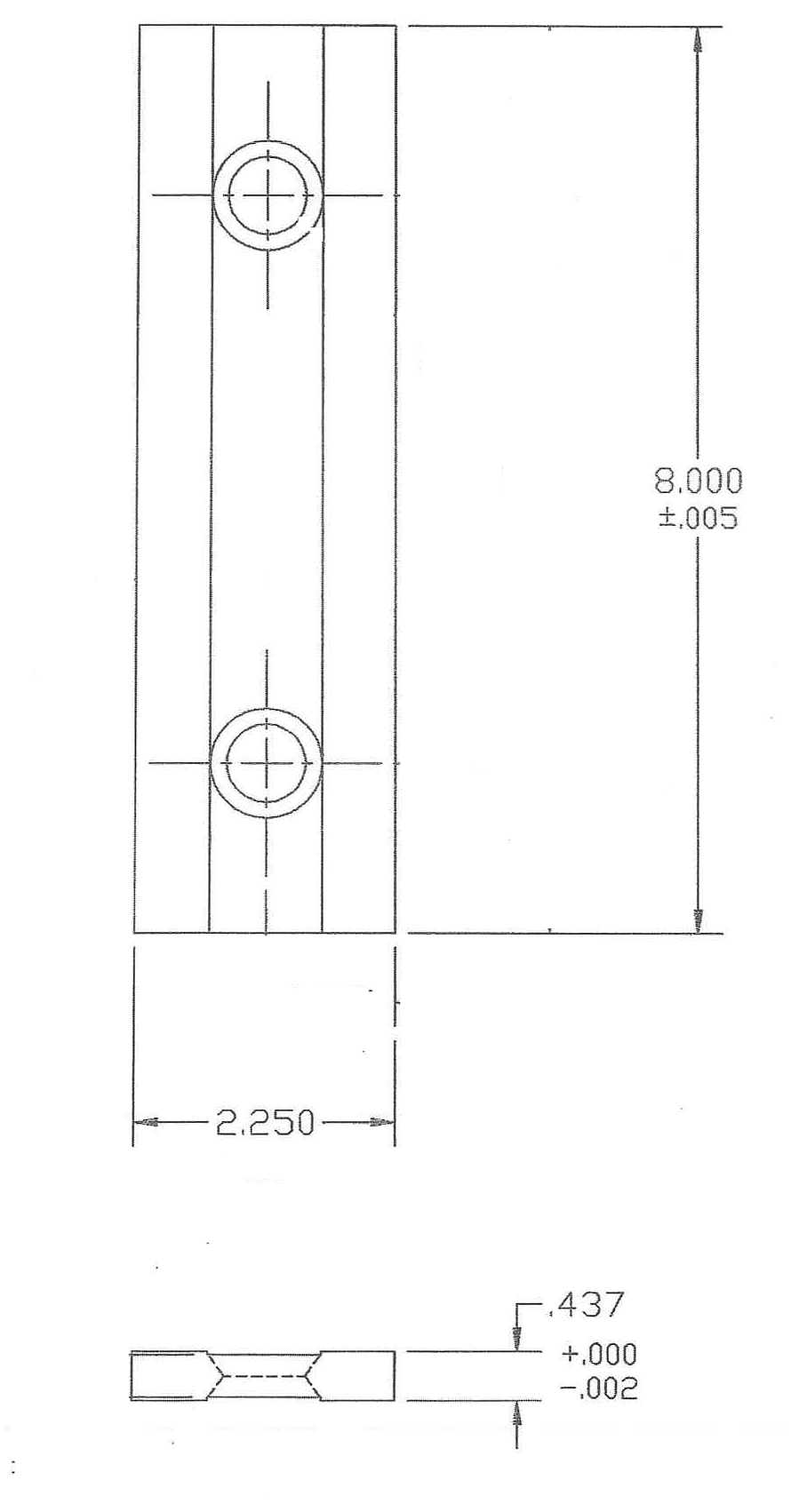

0SB3 Plain Lower Blade 15 days $218.90

Coper Notcher Shear Blades

Image Part No. Description Availability Price Quantity Purchase

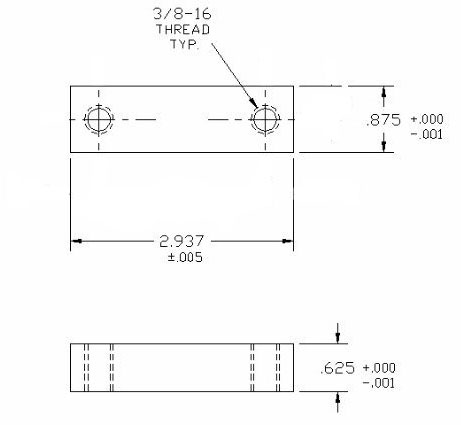

C13014 Side Coper Die (2 req) Call $247.50
C13015 Front Coper Die Call $148.50

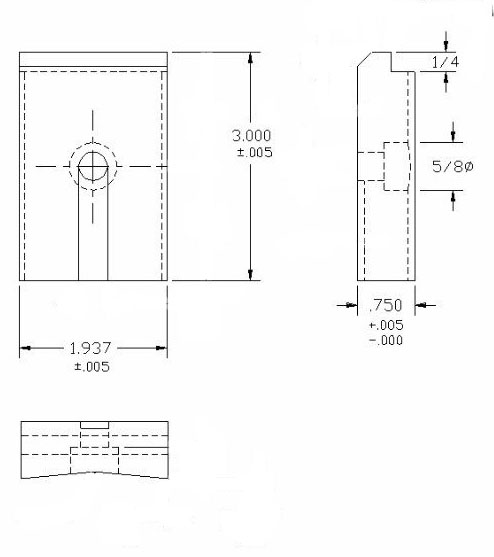

C13013 Coper Punch Call $206.80
