Corner Rounding Tooling

Corner Rounding Tooling

The corner rounding punch is used to round the corners on material up to 5/16" thick. The bottom die has a built in guide at least 1/8" higher than the material thickness. Indicate Radius (R) and Material Thickness (T) when ordering.

Stock Tooling

Punch Part# Description Price

Die Part #

Description Price
220CR375 220 Punch with 3/8 Radius $100.75 413CR375 413 Die with 3/8 Radius $173.40
      413CR375G 413 Die with 3/8 Radius for gauge material $173.40
220CR500 220 Punch with 31/2 Radius $100.75 413CR500 413 Die with 1/2 Radius $173.40
      413CR500G

413 Die with 1/2 Radius for gauge material

$173.40
220CR625 220 Punch with 5/8 Radius $100.75 413CR625 413 Die with 5/8 Radius $173.40
      413CR625G 413 Die with 5/8 Radius for gauge material $173.40
221CR375 221 Punch with 3/8 Radius $118.90 417CR375 417 Die with 3/8 Radius $180.60
      417CR375G 417 Die with 3/8 Radius for gauge material $180.60
221CR500 221 Punch with 1/2 Radius $118.90 417CR500 417 Die with 1/2 Radius $180.60

C6419 with Geka Keyways

221 Punch with 1/2 Radius for Geka $118.90 417CR500G 417 Die with 1/2 Radius for gauge material $180.60
221CR625 221 Punch with 5/8 Radius $118.90 417CR625 417 Die with 5/8 Radius $180.60
C26081 with Geka Keyways 221 Punch with 5/8 Radius $118.90 417CR625G 417 Die with 5/8 Radius for gauge material $180.60
221CR750 221 Punch with 3/4 Radius $118.90 417CR750 417 Die with 3/4 Radius $180.60
      417CR750G 417 Die with 3/4 Radius for gauge material $180.60
228CR500 228 Punch with 1/2 Radius $137.25 419CR500 419 Die with 1/2 Radius $211.65
      419CR500G 419 Die with 1/2 Radius for gauge material $211.65
228CR625 228 Punch with 5/8 Radius $137.25 419CR625 419 Die with 5/8 Radius $211.65
      419CR625G 419 Die with 5/8 Radius for gauge material $211.65
228CR750 228 Punch with 3/4 Radius $137.25 419CR750 419 Die with 3/4  Radius $211.65
      419CR750G 419 Die with 3/4 Radius for gauge material $211.65

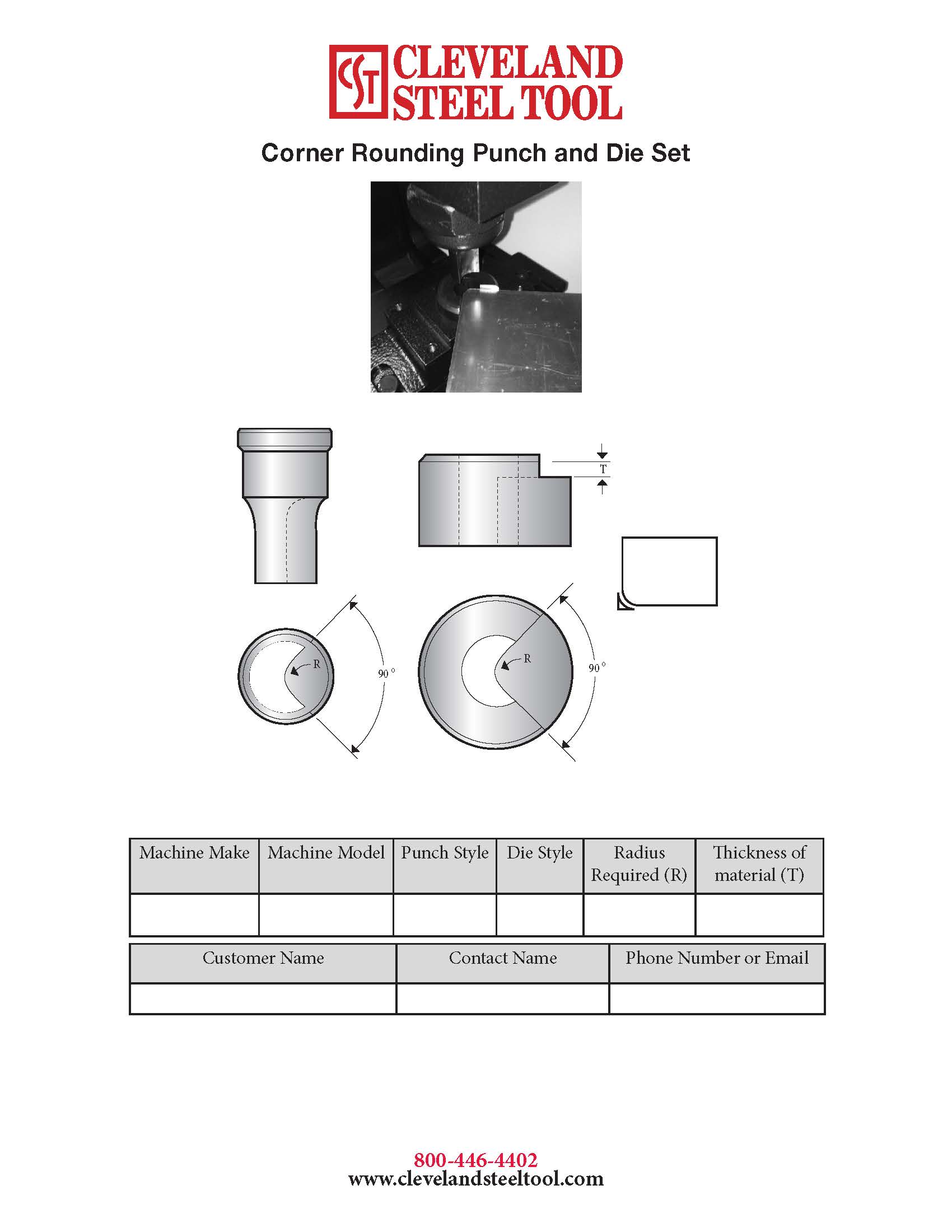

Don't see what you need? Download the Corner-Rounding-Template.

Fill in your information and upload it below with the Contact Us button.

Or, put your quantities and part numbers in the comments.
