Corner Rounding Tooling

Corner Rounding Tooling

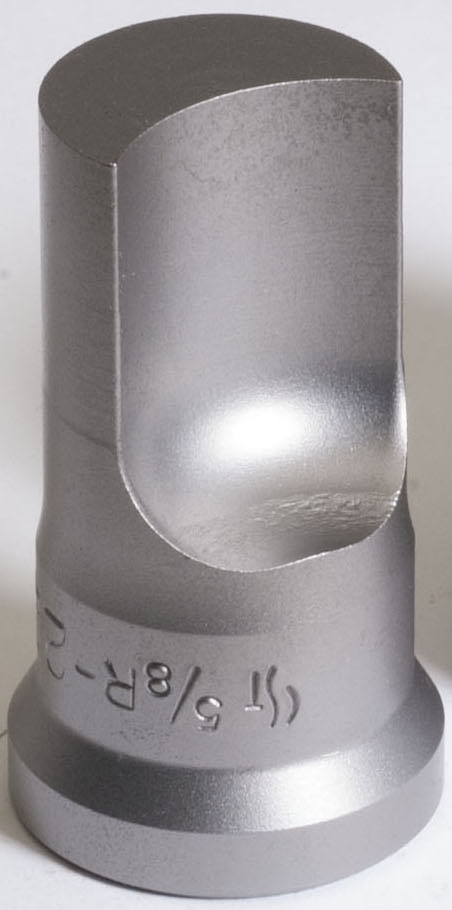

The corner rounding punch is used to round the corners on material up to 5/16" thick.

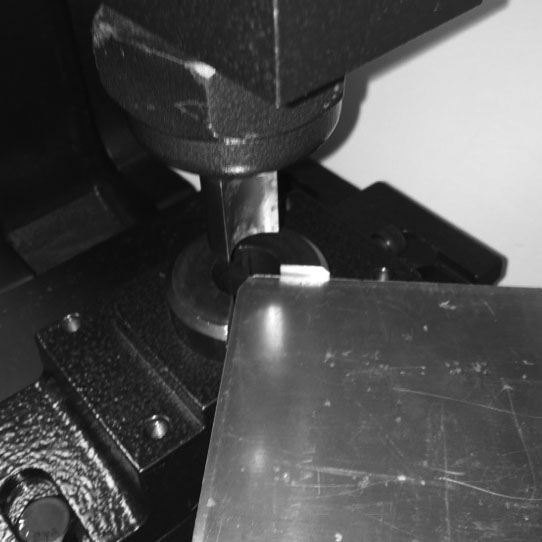

Corner Rounding Tooling is used to round the corners on material up to 5/16" thick. The bottom die has a built in guide at least 1/8" higher than the material thickness.

Don't see a size you need? Fill out our Corner Rounding Template and we can make one for your specific application. Indicate radius and material thickness when ordering.

Corner Rounding Template

Fill in your information and upload it with our Contact Form.

Corner Rounding Tooling

Image Description Part No. Availability Price Quantity Purchase
220 Punch with 3/16" Radius (Cross V-Keyway) C27396 10 Days $195.20
413 Die with 3/16" Radius (Whistle Spots) C27395 10 Days $276.40
220 Punch with 1/4" Radius (1/4 X 1/8 Keyway) C11628 10 Days $177.30
220 Punch with 1/4" Radius (V-Keyway) C13735 10 Days $177.30
220 Punch with 1/4" Radius (Cross V-Keyway) C13063 10 Days $177.30
413 Die with 1/4" Radius (Whistle Spots) C20953 10 Days $263.50
413 Die with 1/4" Radius (Drill Spots) C13736 10 Days $263.50
220 Punch with 3/8" Radius 220CR375 Same Day $119.00
413 Die with 3/8" Radius 413CR375 Same Day $204.90
413 Die with 3/8" Radius for gauge material 413CR375G 10 Days $204.90
220 Punch with 1/2" Radius 220CR500 Same Day $119.00
413 Die with 1/2" Radius 413CR500 Same Day $204.90
413 Die with 1/2" Radius for gauge material 413CR500G 10 Days $204.90
220 Punch with 5/8" Radius 220CR625 Same Day $119.00
413 Die with 5/8" Radius 413CR625 Same Day $204.90
413 Die with 5/8" Radius for gauge material 413CR625G 10 Days $204.90
221 Punch with 3/8" Radius 221CR375 Same Day $140.50
417 Die with 3/8" Radius 417CR375 Same Day $213.30
417 Die with 3/8" Radius for gauge material 417CR375G 10 Days $213.30
221 Punch with 1/2" Radius 221CR500 Same Day $140.50
221 Punch with 1/2" Radius for Geka Ironworker C6419 10 Days $161.40
417 Die with 1/2" Radius 417CR500 Same Day $213.30
417 Die with 1/2" Radius for gauge material 417CR500G Same Day $213.30
221 Punch with 5/8" Radius 221CR625 Same Day $140.50
221 Punch with 5/8" Radius for Geka Ironworker C26081 10 Days $161.60
417 Die with 5/8" Radius 417CR625 Same Day $213.30
417 Die with 5/8" Radius for gauge material 417CR625G Same Day $213.30
221 Punch with 3/4" Radius 221CR750 Same Day $140.50
417 Die with 3/4" Radius 417CR750 Same Day $213.30
417 Die with 3/4" Radius for gauge material 417CR750G 10 Days $213.30
228 Punch with 1/2" Radius 228CR500 Same Day $162.15
419 Die with 1/2" Radius 419CR500 Same Day $250.10
419 Die with 1/2" Radius for gauge material 419CR500G 10 Days $250.10
228 Punch with 5/8" Radius 228CR625 Same Day $162.15
419 Die with 5/8" Radius 419CR625 Same Day $250.10
419 Die with 5/8" Radius for gauge material 419CR625G 10 Days $250.10
228 Punch with 3/4" Radius 228CR750 Same Day $162.15
419 Die with 3/4" Radius 419CR750 Same Day $250.10
419 Die with 3/4" Radius for gauge material 419CR750G 10 Days $250.10
