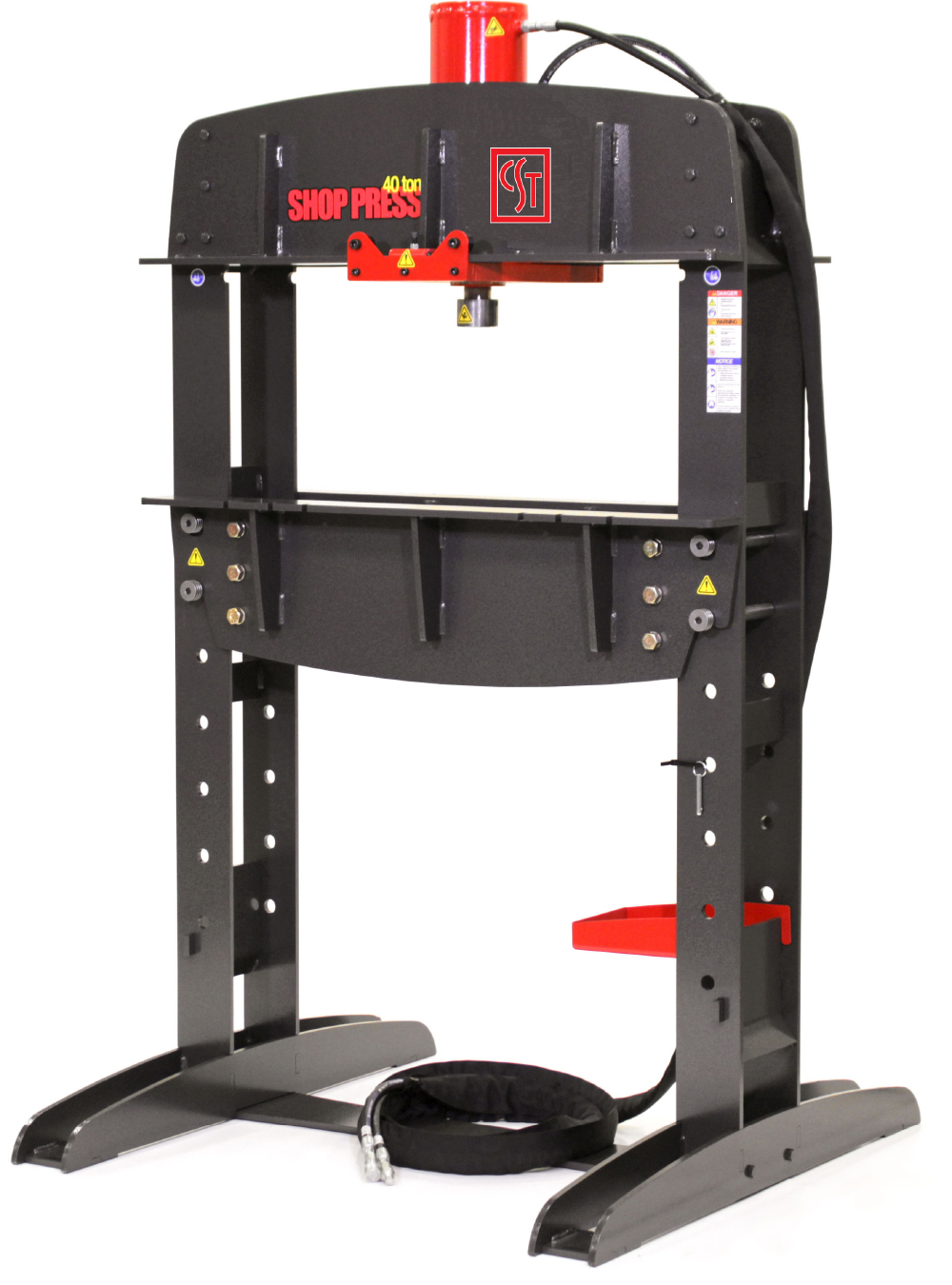

40 Ton Shop Press

Powerful and Versatile

Rugged and economical, full-sized press

Our full-sized 40 Ton Shop Press is tough and affordable. Smooth and accurate, heavy-duty and versatile. The unique open side design allows for material to pass through. Power it up with a Cleveland Steel Tool Ironworker with the factory installed PowerLink System or the 5HP Portable Power unit.

Technical Specifications:

Heavy-Duty all steel construction
Cylinder with 4" Ram
12-1/4" Stroke
Rolling Cylinder for Maximum Versatility
Working Area of 38" x 40-1/2"
Footprint - 79"h x 48"w x 48"d
Shipping weight - 1,400 lbs.
Easy-to-Use Hand/Jog Controls
Quick-Disconnect Hoses
Hydraulic-Assist Table Height Adjustment

Material Maximum Width	Material Maximum Thickness
12"	1/4"
6"	3/8"
32"	10 gauge

Additional accessories include Press Break Tooling, 6-Piece Press Tooling Set and the Press Brake Back Gauge.

Specification Sheet

Press Brake Tooling Set

The six piece Press Tooling Set includes tapered and cutaway push blocks. Installs quickly and easily with a ball detent screw.
Press Brake Tooling

Make the most of your Shop Press by adding our versatile Brake Tooling. Solid steel base and pushblock. Heavy-duty return springs for smooth operation. 12", 18", 24", and 32" Press Brakes available for 40 Ton Shop Press.

Brake up to: 12" wide x 1/4" thick material, 6" wide x 3/8" thick material, or 32" wide x 10 gauge thick material.
Press Brake Back Gauge

The adjustable Press Brake Back Gauge makes for easy set-up of repeatable bends. Simply bolt it up to the Cleveland Steel Tool Ironworker Brake Tooling assembly or Press Brake Tooling for our 20 or 40 Ton Shop Press, and a simple hand crank glides the carriage backstop to your desired brake location.
Power Options

Power your shop press with either the factory installed PowerLink System on your CST Ironworker or the 5HP Portable Power unit.

40 Ton Shop Press

Description	Part No.	Availability	Price
18" Press Brake	PRB18	5 days	$2,699.00
Press Brake Tooling Set - Six Piece	PRB06	Same Day	$789.00
40 Ton Shop Press	HAT4000	2 Weeks	$8,749.00
12" Press Brake	PRB12	5 days	$2,259.00
18" Press Brake	PRB18	5 days	$2,699.00
24" Press Brake	PRB24	5 days	$3,719.00
32" Press Brake	PRB32	5 days	$4,949.00
Press Brake Tooling Set - Six Piece	PRB06	Same Day	$789.00
Press Brake Back Gauge	PR135	5 days	$839.00
Porta Power Unit 1PH 230V	HAT001	2 Weeks	$5,259.00
Porta Power Unit 3PH 230V	HAT002	2 Weeks	$5,139.00
Porta Power Unit 3PH 460V	HAT004	2 Weeks	$5,259.00
