413-Offset Die

413-Offset

Specifications

Outside Diameter1-13/16"
Height1-1/8"

Equivalent Part Numbers

CPDF-55
APC313
PWJB

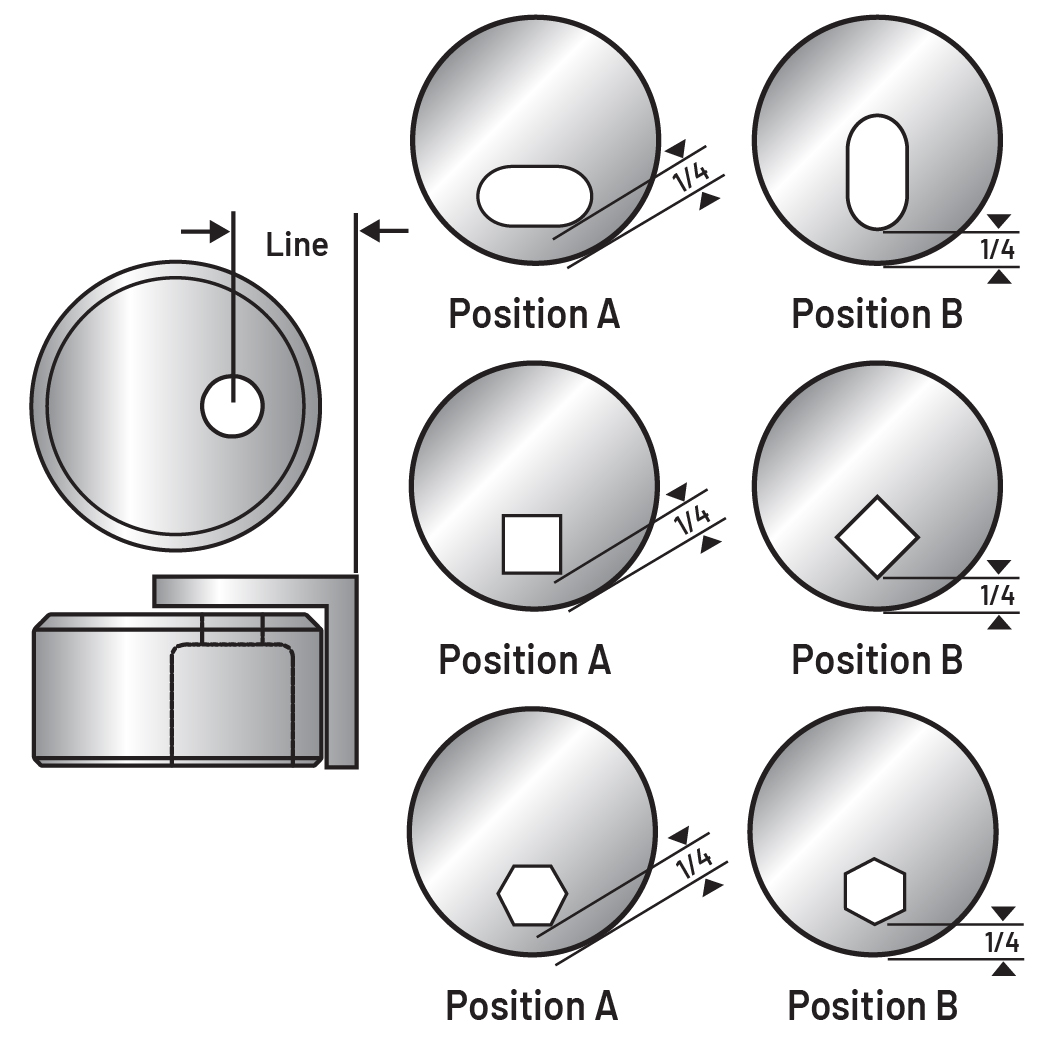

Using a Die with an Offset Hole allows the hole to be punched closer to a desired gauge line. A minimum 1/4" wall thickness is required.

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Die Clearance 0.000"
Die Size 0.000"

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
C7379		413 Offset Round Die	1 Whistle	24 hours	$56.30

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
C4139		413 Offset Oblong Die Position A	1 Whistle	24 hours	$118.40
C9805		413 Offset Oblong Die Position B	1 Whistle	24 hours	$118.40

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
C15676		413 Offset Square Die Position A	1 Whistle	24 hours	$118.40
C15750		413 Offset Square Die Position B (Diamond)	1 Whistle	24 hours	$118.40

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
C15804		413 Offset Hex Die Position A	1 Whistle	24 hours	$133.00
C15997		413 Offset Hex Die Position B	1 Whistle	24 hours	$133.00

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
C15996		413 Offset Rectangle Die Position A	1 Whistle	24 hours	$118.40
C15425		413 Offset Rectangle Die Position B	1 Whistle	24 hours	$118.40
