Parts for Porta Punch with Base Plate

Parts for Porta Punch with Base Plate

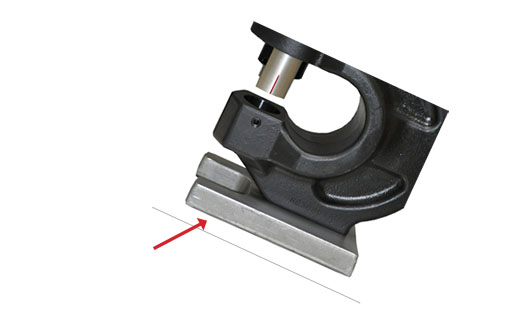

If you have the Porta Punch with the Base Plate, you'll find your parts here.

View Parts Diagram

Parts for Porta Punch with Base Plate

Image Description Part No. Availability Price Quantity Purchase
#1 Handle for Base Plate C-Frame 250494 Same Day $99.00
#3 Main Piston for Base Plate C-Frame 250502 Same Day $454.85
#5 Cotter Pin for Base Plate C-Frame 250513 Same Day $1.30
#8 Set Screw for Base Plate C-Frame 250514 Same Day $1.60
#9 Base/Mounting Plate for Base Plate C-Frame 270-09 Same Day $170.90
#10 Screw for Base Plate C-Frame (2 req. price each) 270-10 Same Day $2.25
#11 Hex Bolt for Base Plate C-Frame (2 req. price each) 250495 Same Day $3.15
#12 Lock Washer for Base Plate C-Frame (2 req. price each) 250496 Same Day $0.55
#13 Spacer for Base Plate C-Frame (2 req. price each) 250497 Same Day $16.30
#14 Sealed End Cap for Base Plate C-Frame 270-14 Same Day $311.85
#15 Back Up Ring for Base Plate C-Frame (2 req. price each) 250500 Same Day $17.00
#16 Sealing O-Ring for Base Plate C-Frame 250501 Same Day $5.50
#17 Upper Spring for Base Plate C-Frame 250505 Same Day $173.00
#18 Lower Spring for Base Plate C-Frame 250507 Same Day $156.45
#19 Lower Spring Retainer for Base Plate C-Frame 250506 Same Day $57.30
#20 Stripper for Base Plate C-Frame 250508 Same Day $183.50
#21 Stopper Nut for Base Plate C-Frame 250509 Same Day $47.45
#22 Punch Centering O-Ring for Base Plate C-Frame 250510 Same Day $1.60
#23 Locking Collar for Base Plate C-Frame 250511 Same Day $56.85
#26 Ram Key Set Screw for Base Plate C-Frame 250522 Same Day $16.20
#28 O-Ring for Base Plate C-Frame 270-28 Same Day $8.25
#29 Coupler for Base Plate C-Frame 256000 Same Day $42.35
#30 Locking Collar Tool 250519 Same Day $49.80
#31 Hex Key Wrench 2.5 mm for Bracket Type C-Frame 250520 Same Day $1.20
#32 Hex Key Wrench 4 mm for Bracket Type C-Frame 250521 Same Day $1.60

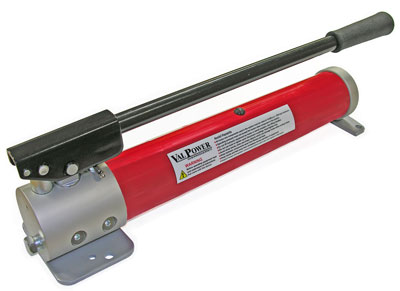

Hand Pump 10,000 psi VHP-10-43 Same Day $520.00

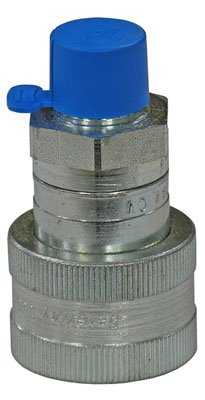

Quick Disconnect S30-3P Same Day $45.00
