Uni-Hydro All Models

Standard Punches & Dies

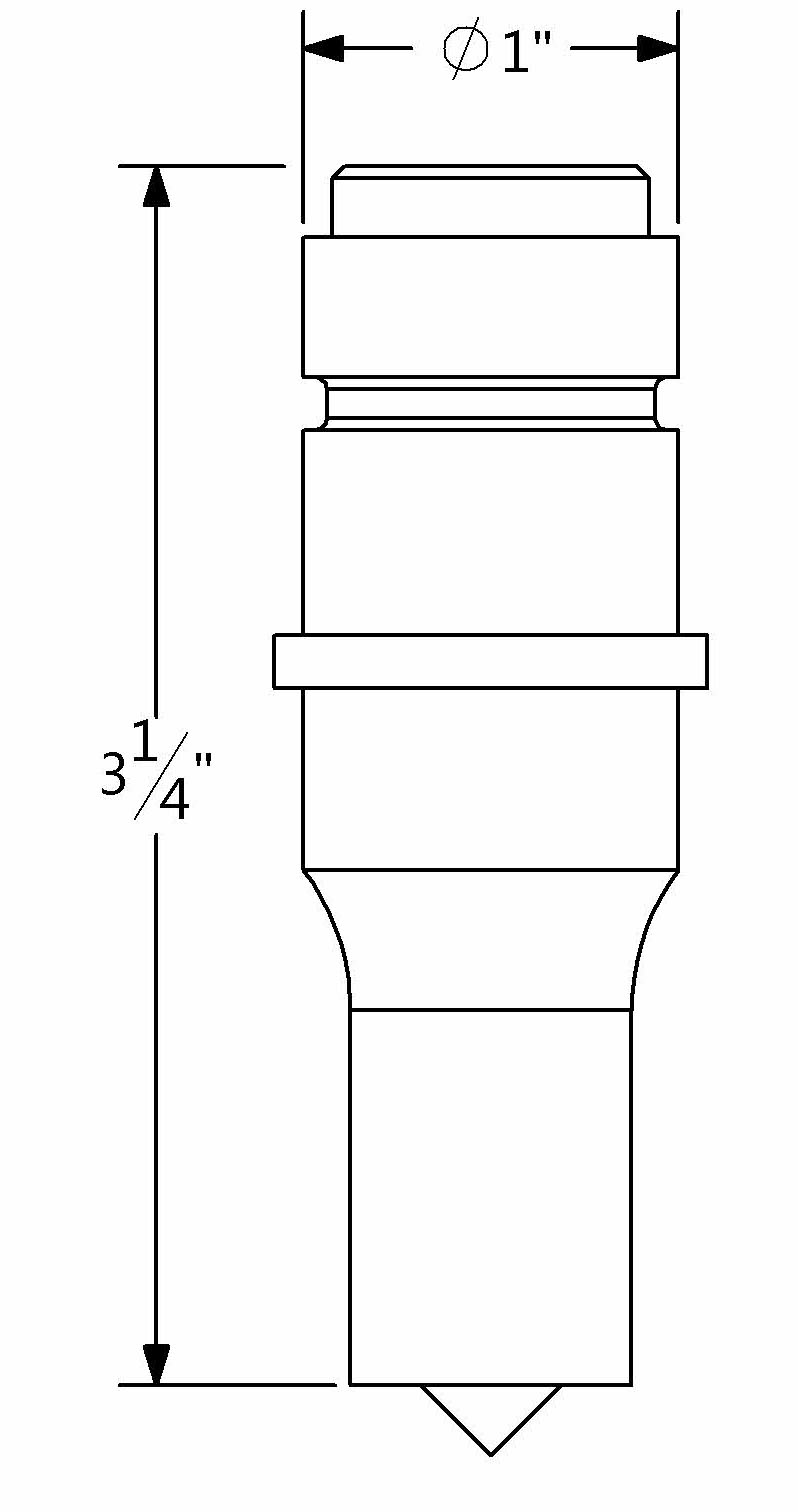

UHP

Specifications

Head Diameter1"
Body Diameter1"
Overall Length3-1/4"

Equivalent Part Numbers

CPDSR-20
APC190
PWBF

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No.	Size	Keyway	Description	Availability	Price
DUPCH06	3/16 (0.1875)"	None	3/16 RD D/U PCH	Same Day	$25.90
DUPCH08	1/4 (0.250)"	None	1/4 RD D/U PCH	Same Day	$25.90
DUPCH09	9/32 (0.281)"	None	9/32 RD D/U PCH	Same Day	$25.90
DUPCH10	5/16 (0.313)"	None	5/16 RD D/U PCH	Same Day	$25.90
DUPCH11	11/32 (0.344)"	None	11/32 RD D/U PCH	Same Day	$25.90
DUPCH12	3/8 (0.375)"	None	3/8 RD D/U PCH	Same Day	$25.90
DUPCH13	13/32 (0.406)"	None	13/32 RD D/U PCH	Same Day	$25.90
DUPCH14	7/16 (0.438)"	None	7/16 RD D/U PCH	Same Day	$25.90
DUPCH15	15/32 (0.469)"	None	15/32 RD D/U PCH	Same Day	$25.90
DUPCH16	1/2 (0.500)"	None	1/2 RD D/U PCH	Same Day	$25.90
DUPCH17	17/32 (0.531)"	None	17/32 RD D/U PCH	Same Day	$25.90
DUPCH18	9/16 (0.563)"	None	9/16 RD D/U PCH	Same Day	$25.90
DUPCH19	19/32 (0.594)"	None	19/32 RD D/U PCH	Same Day	$25.90
DUPCH20	5/8 (0.625)"	None	5/8 RD D/U PCH	Same Day	$25.90
DUPCH21	21/32 (0.656)"	None	21/32 RD D/U PCH	Same Day	$25.90
DUPCH22	11/16 (0.688)"	None	11/16 RD D/U PCH	Same Day	$25.90
DUPCH23	23/32 (0.719)"	None	23/32 RD D/U PCH	Same Day	$25.90
DUPCH24	3/4 (0.750)"	None	3/4 RD D/U PCH	Same Day	$25.90
DUPCH25	25/32 (0.781)"	None	25/32 RD D/U PCH	Same Day	$25.90
DUPCH26	13/16 (0.813)"	None	13/16 RD D/U PCH	Same Day	$25.90
DUPCH27	27/32 (0.844)"	None	27/32 RD D/U PCH	Same Day	$25.90
DUPCH28	7/8 (0.875)"	None	7/8 RD D/U PCH	Same Day	$25.90
DUPCH29	29/32 (0.906)"	None	29/32 RD D/U PCH	Same Day	$25.90
DUPCH30	15/16 (0.938)"	None	15/16 RD D/U PCH	Same Day	$25.90
DUPCH32	1 (1.000)"	None	1 RD D/U PCH	Same Day	$25.90
DVPRD		None	UHP Round Punch Any size not shown	24 hours	$38.90

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
UHPOB		N/A	UHP Oblong Punch Any size not shown	24 hours	$55.70

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
UHPSQ		N/A	UHP Square Punch Any size not shown	24 hours	$55.70

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
UHPHX		N/A	UHP Hex Punch Any size not shown	24 hours	$55.70

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
UHPRC		N/A	UHP Rectangle Punch Any size not shown	24 hours	$55.70

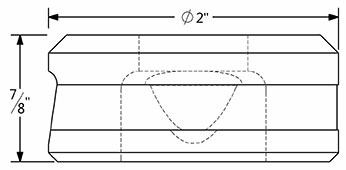

UHD

Specifications

Outside Diameter2""
Height7/8"

Equivalent Part Numbers

CPDF-59
APC351A
PWBG

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Die Clearance 0.000"
Die Size 0.000"

Part No.	Size	Description	Locating Spot	Availability	Price
DUDIE07	7/32 (0.218)"	7/32 RD D/U Die	None	Same Day	$21.20
DUDIE09	9/32 (0.281)"	9/32 RD D/U Die	None	Same Day	$21.20
DUDIE10	5/16 (0.313)"	5/16 RD D/U Die	None	Same Day	$21.20
DUDIE11	11/32 (0.344)"	11/32 RD D/U Die	None	Same Day	$21.20
DUDIE12	3/8 (0.375)"	3/8 RD D/U Die	None	Same Day	$21.20
DUDIE13	13/32 (0.406)"	13/32 RD D/U Die	None	Same Day	$21.20
DUDIE14	7/16 (0.438)"	7/16 RD D/U Die	None	Same Day	$21.20
DUDIE15	15/32 (0.469)"	15/32 RD D/U Die	None	Same Day	$21.20
DUDIE16	1/2 (0.500)"	1/2 RD D/U Die	None	Same Day	$21.20
DUDIE17	17/32 (0.531)"	17/32 RD D/U Die	None	Same Day	$21.20
DUDIE18	9/16 (0.563)"	9/16 RD D/U Die	None	Same Day	$21.20
DUDIE19	19/32 (0.594)"	19/32 RD D/U Die	None	Same Day	$21.20
DUDIE20	5/8 (0.625)"	5/8 RD D/U Die	None	Same Day	$21.20
DUDIE21	21/32 (0.656)"	21/32 RD D/U Die	None	Same Day	$21.20
DUDIE22	11/16 (0.688)"	11/16 RD D/U Die	None	Same Day	$21.20
DUDIE23	23/32 (0.719)"	23/32 RD D/U Die	None	Same Day	$21.20
DUDIE24	3/4 (0.750)"	3/4 RD D/U Die	None	Same Day	$21.20
DUDIE25	25/32 (0.781)"	25/32 RD D/U Die	None	Same Day	$21.20
DUDIE26	13/16 (0.813)"	13/16 RD D/U Die	None	Same Day	$21.20
DUDIE27	27/32 (0.844)"	27/32 RD D/U Die	None	Same Day	$21.20
DUDIE28	7/8 (0.875)"	7/8 RD D/U Die	None	Same Day	$21.20
DUDIE29	29/32 (0.906)"	29/32 RD D/U Die	None	Same Day	$21.20
DUDIE31	31/32 (0.969)"	31/32 RD D/U Die	None	Same Day	$21.20
DUDIE32	1" (1.000)"	1 RD D/U Die	None	Same Day	$21.20
DUDIE33	1-1/32 (1.031)"	1-1/32 RD D/U Die	None	Same Day	$21.20
DVDRD		UHD Round Die in Any size not shown	1 Whistle	24 hours	$37.20

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
DVDOB		UHD Oblong Die in Any size not shown	2 Whistles	24 hours	$55.70

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
DVDSQ		UHD Square Die in Any size not shown	1 Whistle	24 hours	$55.70

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
DVDHX		UHD Hex Die in Any size not shown	1 Whistle	24 hours	$55.70

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
DVDRC		UHD Rectangle Die in Any size not shown	2 Whistles	24 hours	$55.70

Oversize Punches & Dies

UHP2

Specifications

Head Diameter1-1/2"
Body Diameter1-1/2"
Overall Length3"

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
17274		N/A	UHP2 Round Punch Any size not shown	24 hours	$76.20

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
17281		N/A	UHP2 Oblong Punch Any size not shown	24 hours	$146.20

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
UHP2SQ	Any size not shown"	N/A	UHP2 Square Punch Any size not shown	Call	$146.20

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
UHP2HX	Any size not shown"	N/A	UHP2 Hex Punch Any size not shown	Call	$146.20

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
C22780		N/A	UHP2 Rectangle Punch Any size not shown	24 hours	$146.20

237

Specifications

Head Diameter2-1/2"
Body Diameter2-9/32"
Overall Length3"

Equivalent Part Numbers

CPDC-50
APC137
PWVP

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
237RD		None	237 Round Punch Any size not shown	72 hours	$63.70

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
237OB			237 Oblong Punch Any size not shown	72 hours	$179.60
237OBBail		4mm x 4mm	237 Oblong Punch With 4mm x 4mm Keyway in any size not shown	72 hours	$179.60

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
237SQ			237 Square Punch Any size not shown	72 hours	$179.60
237SQBail		4mm x 4mm	237 Square Punch With 4mm x 4mm Keyway in any size not shown	72 hours	$179.60

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
237HX			237 Hex Punch Any size not shown	72 hours	$179.60
237HXBail		4mm x 4mm	237 Hex Punch With 4mm x 4mm Keyway in any size not shown	72 hours	$179.60

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
237RC			237 Rectangle Punch Any size not shown	72 hours	$179.60
237RCBail		4mm x 4mm	237 Rectangle Punch With 4mm x 4mm Keyway in any size not shown	72 hours	$179.60

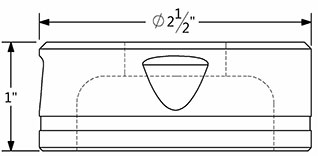

UHD2

Specifications

Outside Diameter2-1/2"
Height1""

Equivalent Part Numbers

CPD0
APC0
PWRS

Enter your desired size

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Die Clearance 0.000"
Die Size 0.000"

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
UHD2RD		UHD2 Round Die in Any size not shown	1 Whistle	24 hours	$53.10

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
UHD2OB		UHD2 Oblong Die in Any size not shown	2 Whistles	24 hours	$102.10

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
UHD2SQ		UHD2 Square Die in Any size not shown	1 Whistle	24 hours	$102.10

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
UHD2HX		UHD2 Hex Die in Any size not shown	1 Whistle	24 hours	$102.10

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
UHD2RC		UHD2 Rectangle Die in Any size not shown	2 Whistles	24 hours	$102.10

422

Specifications

Outside Diameter3"
Height1-1/4"

Equivalent Part Numbers

CPDF-71
APC322
PWXR

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Die Clearance 0.000"
Die Size 0.000"

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
422RD		422 Round Die in Any size not shown	None	24 hours	$94.10

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
422OB		422 Oblong Die in Any size not shown	2 Whistles	24 hours	$180.25

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
422SQ		422 Square Die in Any size not shown	1 Whistle	24 hours	$180.25

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
422HX		422 Hex Die in Any size not shown	1 Whistle	24 hours	$180.25

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
422RC		422 Rectangle Die in Any size not shown	2 Whistles	24 hours	$180.25
